MBRAF1540 Series

1.5 A, 40 V Schottky Rectifier

Catalog

1.5 A, 40 V Schottky Rectifier

Part	Current - Average Rectified (Io)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Speed	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]

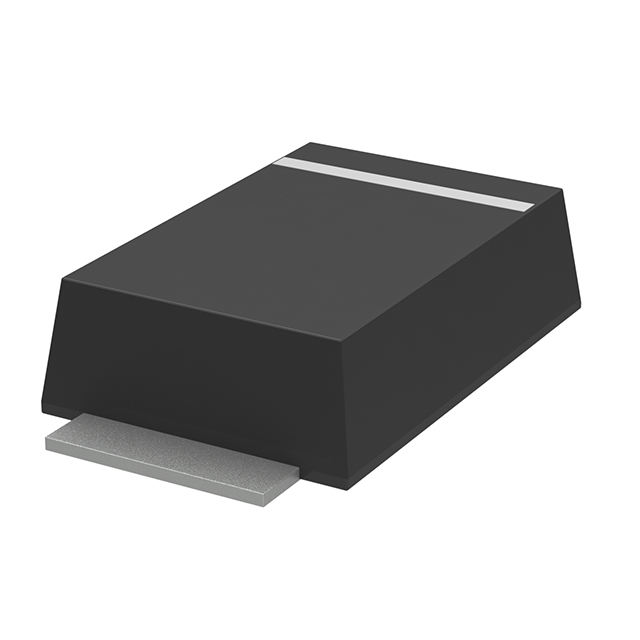

ON Semiconductor MBRAF1540T3G	1.5 A	Schottky	40 V	DO-221AC SMA Flat Leads	800 µA	460 mV	SMA-FL	200 mA 500 ns	Surface Mount	150 °C	-55 °C

Catalog

1.5 A, 40 V Schottky Rectifier

Key Features

• Low Profile Package for Space Constrained Applications

• Rectangular Package for Automated Handling

• Highly Stable Oxide Passivated Junction

• 150°C Operating Junction Temperature

• Guard-Ring for Stress Protection

• These are Pb-Free and Halide-Free DevicesMechanical Characteristics:

• Case: Epoxy, Molded, Epoxy Meets UL 94, V-0

• Weight: 95 mg (approximately)

• Finish: All External Surfaces Corrosion Resistant and TerminalLeads are Readily Solderable

• Lead and Mounting Surface Temperature for Soldering Purposes:260°C Max. for 10 Seconds

• Cathode Polarity Band

• Device Meets MSL 1 Requirements

• ESD Ratings: Machine Model = CHuman Body Model = 3B

Description

This device employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
