MS-151 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN COAX SWITCH RCPT R/A 50OHM
| Part | Body Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Body Finish | Insertion Loss | Dielectric Material | Number of Ports | Impedance | Features | Fastening Type | Shield Termination | Mounting Type | Connector Type | Connector Style | Connector Style [diameter] | Center Contact Material | Contact Termination | Frequency - Max [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

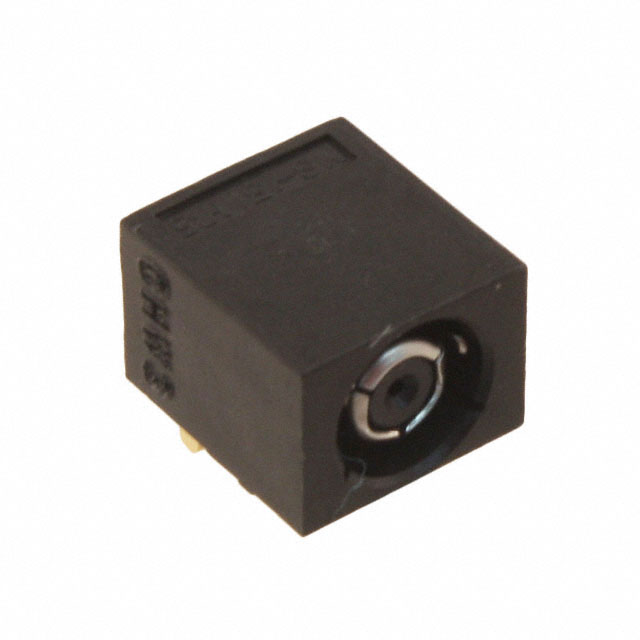

 Hirose Electric Co Ltd | Stainless Steel | 5000 | 85 °C | -40 C | Gold | Nickel | 0.6 dB | Polyamide (PA) Nylon | 1 | 50 Ohms | Internal Switch | Snap-On | Solder | Right Angle Surface Mount | Receptacle Female Socket | Coaxial Switch | 4.15 mm | Phosphor Bronze | Solder | 3 GHz | Black |

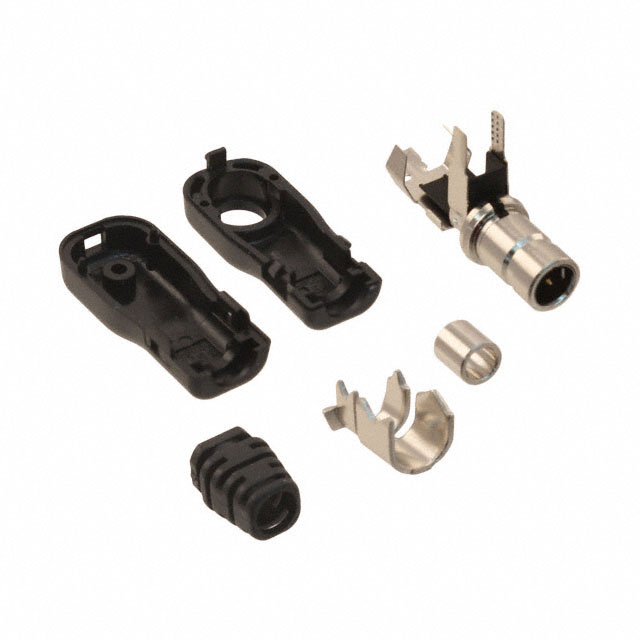

 Hirose Electric Co Ltd | Stainless Steel | 5000 | 85 °C | -40 C | Gold | Nickel | Polyamide (PA) Nylon | 1 | 50 Ohms | Internal Switch | Snap-On | Solder | Free Hanging (In-Line) Right Angle | Plug Male Pin | Coaxial Switch | 4.15 mm | Phosphor Bronze | Solder | 3 GHz | Black |
