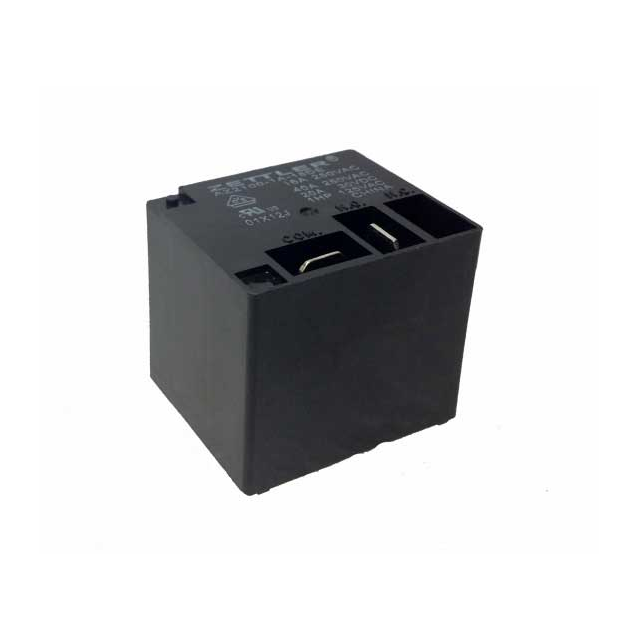

AZ2100-1A Series
Manufacturer: American Zettler
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE SPST 40A 15V
| Part | Relay Type | Must Release Voltage | Contact Material | Contact Rating (Current) | Operate Time | Mounting Type | Seal Rating | Release Time | Operating Temperature (Min) | Operating Temperature (Max) | Coil Insulation | Coil Type | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Must Operate Voltage | Quick Connect Size (0.250") | Termination Style | Approval Agency | Coil Current | Form A Count | Contact Form | Coil Voltage | Load - Max Switching (Real Power) | Load - Max Switching (Apparent Power) | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | General Purpose | 1.5 VDC | Silver Cadmium Oxide (AgCdO) | 40 A | 15 ms | Through Hole | Fully Sealed | 10 ms | -55 °C | 85 °C | Class B | Non Latching | 30 VDC | 300 VAC | 11.25 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 58.6 mA | 1 | SPST-NO | 15 V | 1200 W | 12000 VA | 256 Ohms |
 American Zettler | General Purpose | 1.8 VAC | Silver Cadmium Oxide (AgCdO) | 40 A | 15 ms | Through Hole | Fully Sealed | 10 ms | -55 °C | 105 °C | Class F | Non Latching | 30 VDC | 300 VAC | 13.5 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 47.4 mA | 1 | SPST-NO | 18 VDC | 1200 W | 12000 VA | 380 Ohms |
 American Zettler | General Purpose | 1.2 V | Silver Tin Oxide (AgSnO) | 40 A | 15 ms | Through Hole | 10 ms | -55 °C | 85 °C | Class B | Non Latching | 30 VDC | 300 VAC | 9 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 77.4 mA | 1 | SPST-NO | 12 VAC | 1200 W | 12000 VA | 155 Ohms | |
American Zettler | General Purpose | 11 VDC | Silver Cadmium Oxide (AgCdO) | 40 A | 15 ms | Through Hole | Fully Sealed | 10 ms | -55 °C | 105 °C | Class F | Non Latching | 30 VDC | 300 VAC | 82.5 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 8.2 mA | 1 | SPST-NO | 110 V | 1200 W | 12000 VA | 13.45 kOhms |
 American Zettler | General Purpose | 1.2 V | Silver Cadmium Oxide (AgCdO) | 40 A | 15 ms | Through Hole | Fully Sealed | 10 ms | -55 °C | 85 °C | Class F | Non Latching | 30 VDC | 277 VAC | 9 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 77.4 mA | 1 | SPST-NO | 12 VAC | 1200 W | 12000 VA | 155 Ohms |
American Zettler | General Purpose | 3.6 VAC | Silver Cadmium Oxide (AgCdO) | 40 A | 15 ms | Through Hole | Fully Sealed | 10 ms | -55 °C | 85 °C | Class B | Non Latching | 30 VDC | 300 VAC | 0.25 in | PC Pin Quick Connect | cURus VDE | 1 | SPST-NO | 36 VAC | 1200 W | 12000 VA | |||
American Zettler | General Purpose | 3.6 VAC | Silver Tin Oxide (AgSnO) | 40 A | 15 ms | Through Hole | Fully Sealed | 10 ms | -55 °C | 85 °C | Class B | Non Latching | 30 VDC | 300 VAC | 0.25 in | PC Pin Quick Connect | cURus VDE | 1 | SPST-NO | 36 VAC | 1200 W | 12000 VA | |||
American Zettler | General Purpose | 1.8 VAC | Silver Tin Oxide (AgSnO) | 40 A | 15 ms | Through Hole | 10 ms | -55 °C | 85 °C | Class B | Non Latching | 30 VDC | 300 VAC | 13.5 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 47.4 mA | 1 | SPST-NO | 18 VDC | 1200 W | 12000 VA | 380 Ohms | |
American Zettler | General Purpose | 1.8 VAC | Silver Cadmium Oxide (AgCdO) | 40 A | 15 ms | Through Hole | 10 ms | -55 °C | 85 °C | Class B | Non Latching | 30 VDC | 300 VAC | 13.5 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 47.4 mA | 1 | SPST-NO | 18 VDC | 1200 W | 12000 VA | 380 Ohms | |
American Zettler | General Purpose | 1.5 VDC | Silver Cadmium Oxide (AgCdO) | 40 A | 15 ms | Through Hole | 10 ms | -55 °C | 105 °C | Class F | Non Latching | 30 VDC | 300 VAC | 11.25 VDC | 0.25 in | PC Pin Quick Connect | cURus VDE | 58.6 mA | 1 | SPST-NO | 15 V | 1200 W | 12000 VA | 256 Ohms |
