C0747 Series
Manufacturer: Prysmian Group
Beta
⌘K

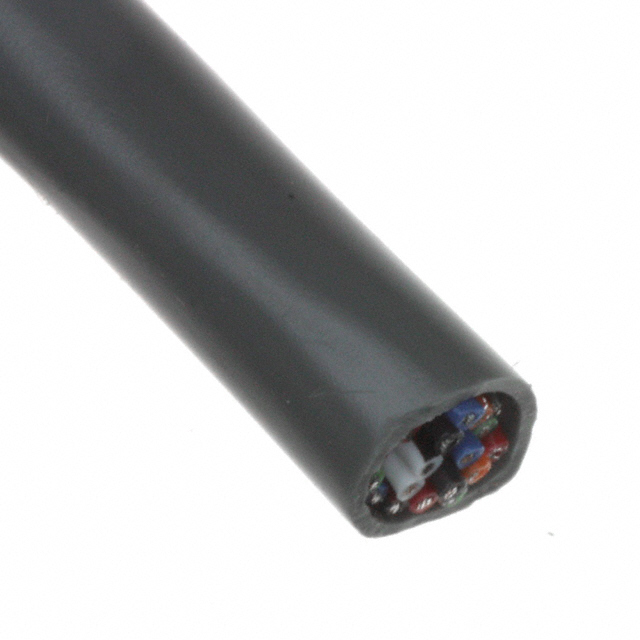

CABLE 20COND 24AWG GRAY SHLD 50'
| Part | Shield Material | Wire Gauge | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Length | Length | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Insulation | Shield Coverage | Jacket Color | Ratings | Cable Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Flexfoil® | 24 AWG | Drain Wire | 0.813 mm | 0.032 in | Computer | 15.24 m 304.8 m | 50 ft 1000 ft | Poly-Vinyl Chloride (PVC) | 300 VDC | 7.7 mm | 0.303 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | 100 % | Gray | UL Style 2464 | Multi-Conductor | 20 | 7 | 32 AWG | -20 ░C | 80 °C 105 ░C | Foil |
Prysmian Group | 24 AWG | Drain Wire | 0.813 mm | 0.032 in | Computer | 15.24 m 304.8 m | 50 ft 1000 ft | Poly-Vinyl Chloride (PVC) | 300 VDC | 7.7 mm | 0.303 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | Gray | UL Style 2464 | Multi-Conductor | 20 | 7 | 32 AWG | -20 ░C | 105 ░C | Foil |
