VNQ600 Series
Manufacturer: STMicroelectronics
Beta
⌘K

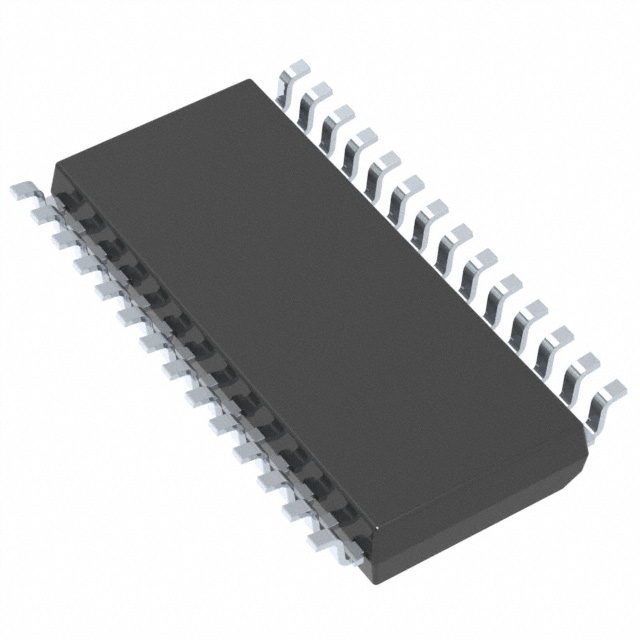

IC PWR DRIVER N-CHAN 1:1 28SOIC
| Part | Input Type | Voltage - Supply (Vcc/Vdd) | Mounting Type | Output Type | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Fault Protection | Switch Type | Interface | Rds On (Typ) | Ratio - Input:Output | Package / Case [custom] | Package / Case | Package / Case [custom] | Voltage - Load [Max] | Voltage - Load [Min] | Number of Outputs | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | Non-Inverting | Not Required | Surface Mount | N-Channel | 15 A | -40 °C | 150 °C | High Side | Current Limiting (Fixed) Over Temperature Over Voltage UVLO | General Purpose | On/Off | 35 mOhm | 1:1 | 0.295 " | 28-SOIC | 7.5 mm | 36 V | 5.5 V | 4 | |
STMicroelectronics | Non-Inverting | Not Required | Surface Mount | N-Channel | 15 A | -40 °C | 150 °C | High Side | Current Limiting (Fixed) Over Temperature Over Voltage UVLO | General Purpose | On/Off | 35 mOhm | 1:1 | 0.295 " | 28-SOIC | 7.5 mm | 36 V | 5.5 V | 4 | 28-SO |
 STMicroelectronics | Non-Inverting | Not Required | Surface Mount | N-Channel | 15 A | -40 °C | 150 °C | High Side | Current Limiting (Fixed) Over Temperature Over Voltage UVLO | General Purpose | On/Off | 35 mOhm | 1:1 | 0.295 " | 28-SOIC | 7.5 mm | 36 V | 5.5 V | 4 | 28-SO |
 STMicroelectronics | Non-Inverting | Not Required | Surface Mount | N-Channel | 15 A | -40 °C | 150 °C | High Side | Current Limiting (Fixed) Over Temperature Over Voltage UVLO | General Purpose | On/Off | 35 mOhm | 1:1 | 0.295 " | 28-SOIC | 7.5 mm | 36 V | 5.5 V | 4 | 28-SO |
