A3B-12PA Series

Catalog

CONN HEADER R/A 12POS 2MM

Part	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Style	Mounting Type	Shrouding	Insulation Height [z]	Insulation Height [z]	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Post	Voltage Rating	Insulation Color	Insulation Material	Termination	Connector Type	Contact Material	Contact Shape	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Mated Stacking Heights [z]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length

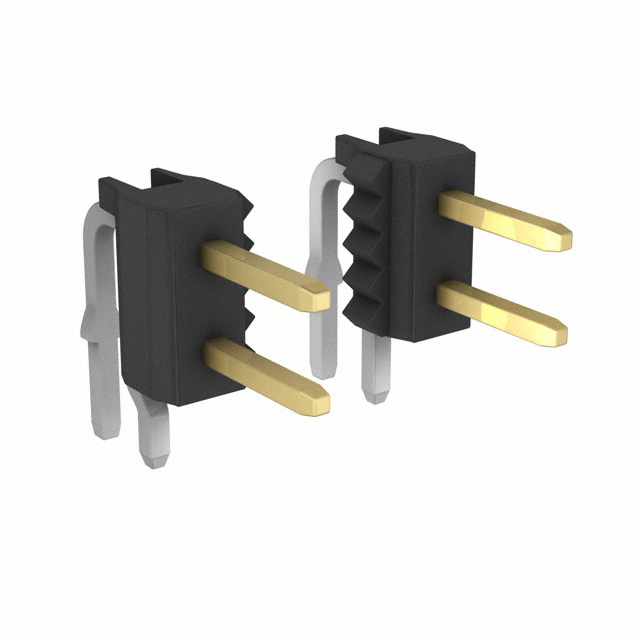

Hirose Electric Co Ltd A3B-12PA-2DS(71)	Flash	Male Pin	Gold	0.079 "	2 mm	UL94 V-0	Push-Pull	Board to Board Cable	Right Angle Through Hole	Unshrouded	4 mm	0.157 in	12	2 mm	0.079 in	-55 C	85 °C	3.5 mm	0.138 in	All	Tin	200 VAC	Black	Nylon Polyamide (PA)	Kinked Pin Solder	Header	Brass	Square	2.6 mm	0.102 in	2

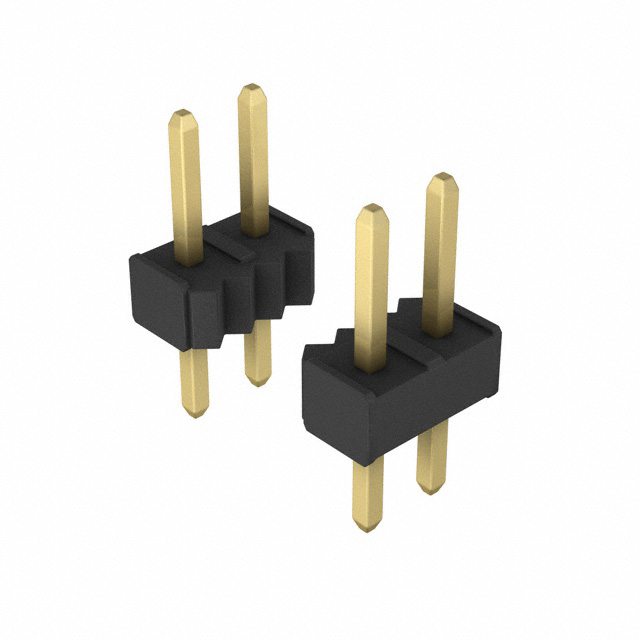

Hirose Electric Co Ltd A3B-12PA-2DSA(71)	Flash	Male Pin	Gold	0.079 "	2 mm	UL94 V-0	Push-Pull	Board to Board Cable	Through Hole	Unshrouded			12	2 mm	0.079 in	-55 C	85 °C	3.5 mm	0.138 in	All	Tin	200 VAC	Black	Nylon Polyamide (PA)	Solder	Header	Brass	Square	2.6 mm	0.102 in	2	6 mm 8.8 mm	78.7 µin	2 µm	1.8 mm	0.071 in	7.9 mm	0.311 in
