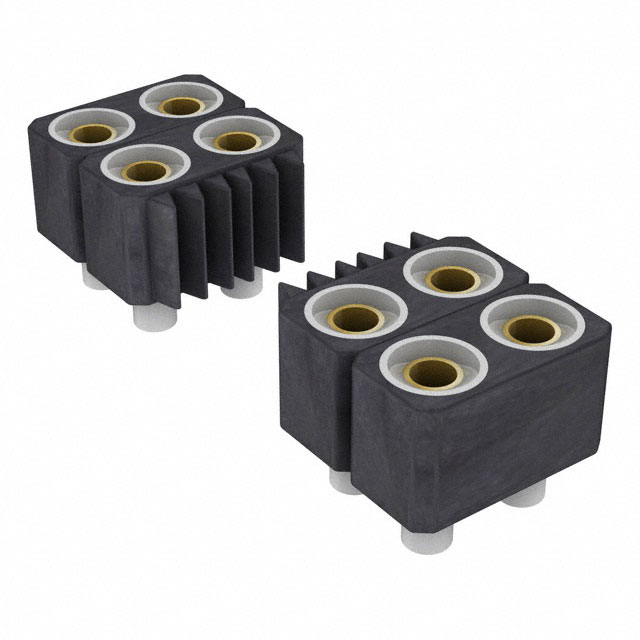

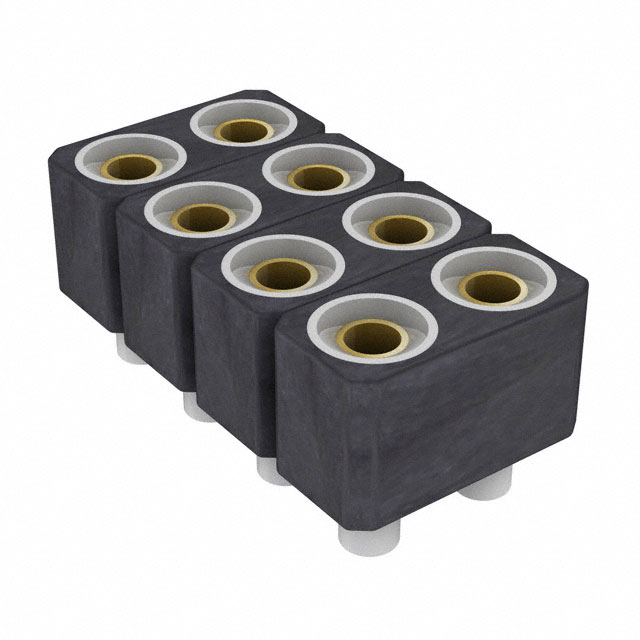

414-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 38POS 0.1 GOLD SMD

Part	Contact Material	Contact Shape	Insulation Material	Insulation Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions	Current Rating (Amps)	Number of Rows [custom]	Insulation Height	Insulation Height	Contact Type	Material Flammability Rating	Fastening Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Mounting Type
Preci-Dip 414-83-238-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	38	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-264-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	64	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-210-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	10	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-246-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	46	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-214-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	14	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-262-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	62	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-226-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	26	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-236-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	36	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-272-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	72	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
Preci-Dip 414-83-248-41-134101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	-55 C	125 °C	29.5 µin	0.75 µm	48	3 A	2	0.165 in	4.2 mm	Female Socket	UL94 V-0	Push-Pull	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Tin	Socket	Surface Mount
