RP17 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONTACT PIN CRIMP ST CABLE MOUNT 24-30AWG REEL
| Part | Type | Contact Material | Contact Type | Contact Finish | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Termination | Insert Material | Note | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Size | Shell Size - Insert [custom] | Connector Type | Number of Positions | Features | Orientation | Fastening Type | Mounting Type | Material Flammability Rating | Shell Material | Shielding | Housing Color | Mounting Feature | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Signal Stamped | Phosphor Bronze | Pin | Silver | 24 AWG | 30 AWG | Crimp | |||||||||||||||||||

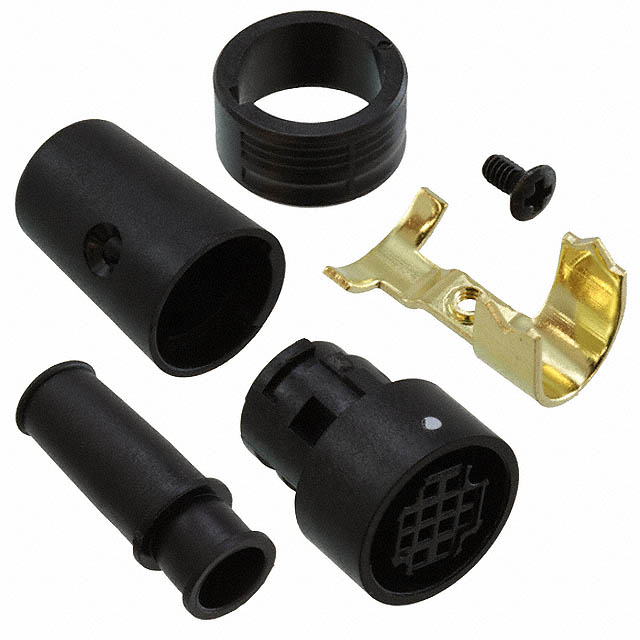

 Hirose Electric Co Ltd | For Female Sockets | Crimp | Polycarbonate (PC) | Contacts Not Included | Circular | -10 °C | 60 °C | 1.2 mm 1.6 mm | 13 | Jack Housing | 12 | Backshell Cable Clamp Strain Relief | Keyed | Push-Pull | Free Hanging (In-Line) | UL94 V-0 | Polycarbonate (PC) | Unshielded | Black | |||||||
 Hirose Electric Co Ltd | Signal Stamped | Phosphor Bronze | Pin | Gold | 24 AWG | 30 AWG | Crimp | Insulation Support | ||||||||||||||||||

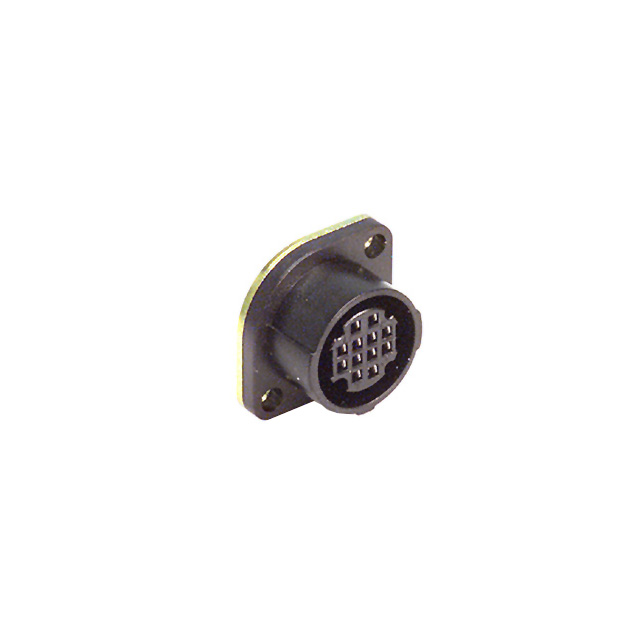

 Hirose Electric Co Ltd | For Female Sockets | Crimp | Polycarbonate (PC) | Contacts Not Included | Circular | -10 °C | 60 °C | 1.2 mm 1.6 mm | 13 | Receptacle Housing | 12 | Keyed | Push-Pull | Panel Mount | UL94 V-0 | Polycarbonate (PC) | Unshielded | Black | Flange | |||||||

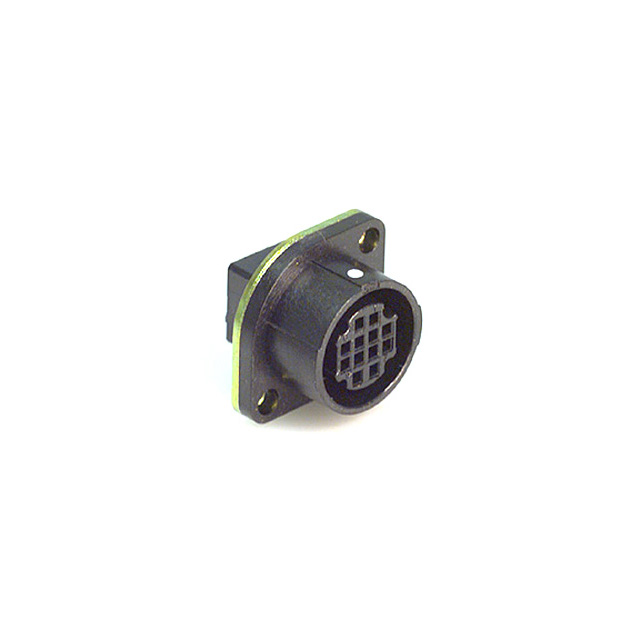

 Hirose Electric Co Ltd | 13 | Receptacle Female Sockets | 12 | Keyed | Push-Pull | Panel Mount Through Hole | Flange | |||||||||||||||||||

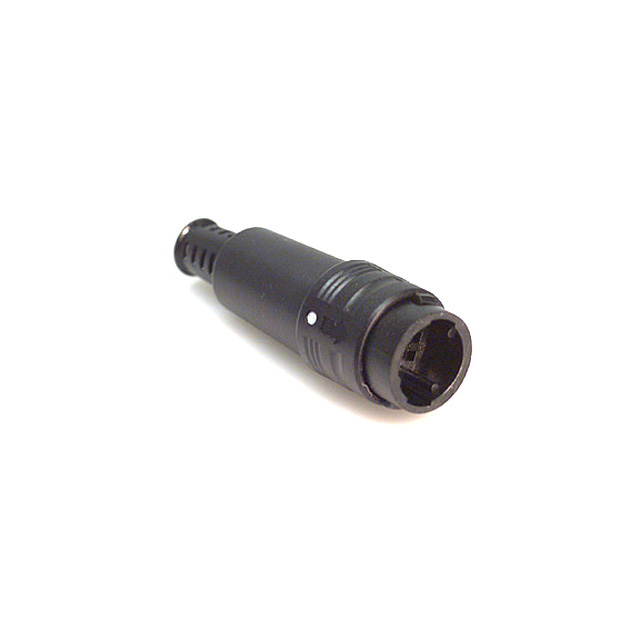

 Hirose Electric Co Ltd | For Male Pins | Crimp | Polycarbonate (PC) | Contacts Not Included | Circular | -10 °C | 60 °C | 1.2 mm 1.6 mm | 13 | Plug Housing | 12 | Backshell Cable Clamp Strain Relief | Keyed | Push-Pull | Free Hanging (In-Line) | UL94 V-0 | Polycarbonate (PC) | Unshielded | Black | 1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief |
