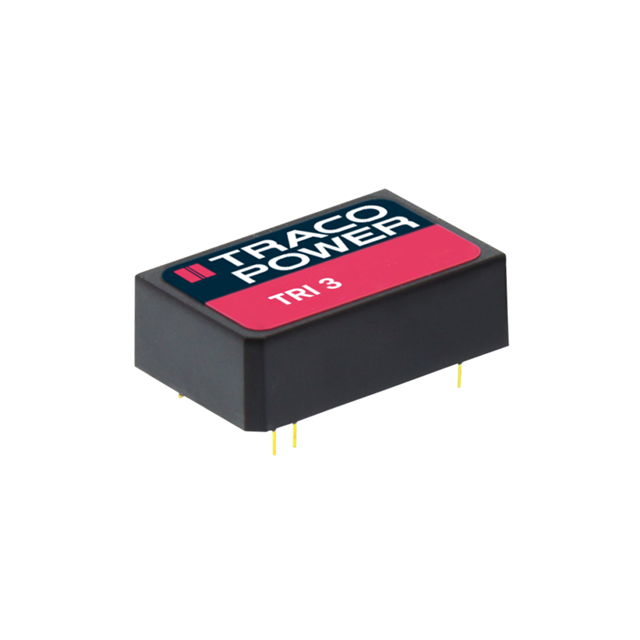

TRI 3 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 4.5-9VIN 15V 235MA 3.5W ISO REG DIP-24

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Output 1	Approval Agency	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Applications	Type	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Traco Power TRI 3-0513	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	15 V	CB cURus	9 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	235 mA	84 %	9 kV	4.5 V
Traco Power TRI 3-0515	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	24 V	CB cURus	9 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	146 mA	83 %	9 kV	4.5 V
Traco Power TRI 3-4812	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	12 V	CB cURus	75 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	290 mA	85 %	9 kV	36 V
Traco Power TRI 3-0512	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	12 V	CB cURus	9 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	290 mA	83 %	9 kV	4.5 V
Traco Power TRI 3-1213	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	15 V	CB cURus	18 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	235 mA	87 %	9 kV	9 V
Traco Power TRI 3-0522	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	12 V	CB cURus	9 V	24-DIP Module 6 Leads	Through Hole	ITE (Commercial)	Isolated Module	2		84 %	9 kV	4.5 V	145 mA	145 mA	-12 V
Traco Power TRI 3-4823	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	15 V	CB cURus	75 V	24-DIP Module 6 Leads	Through Hole	ITE (Commercial)	Isolated Module	2		84 %	9 kV	36 V			-15 V	115 mA
Traco Power TRI 3-4813	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	15 V	CB cURus	75 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	235 mA	85 %	9 kV	36 V

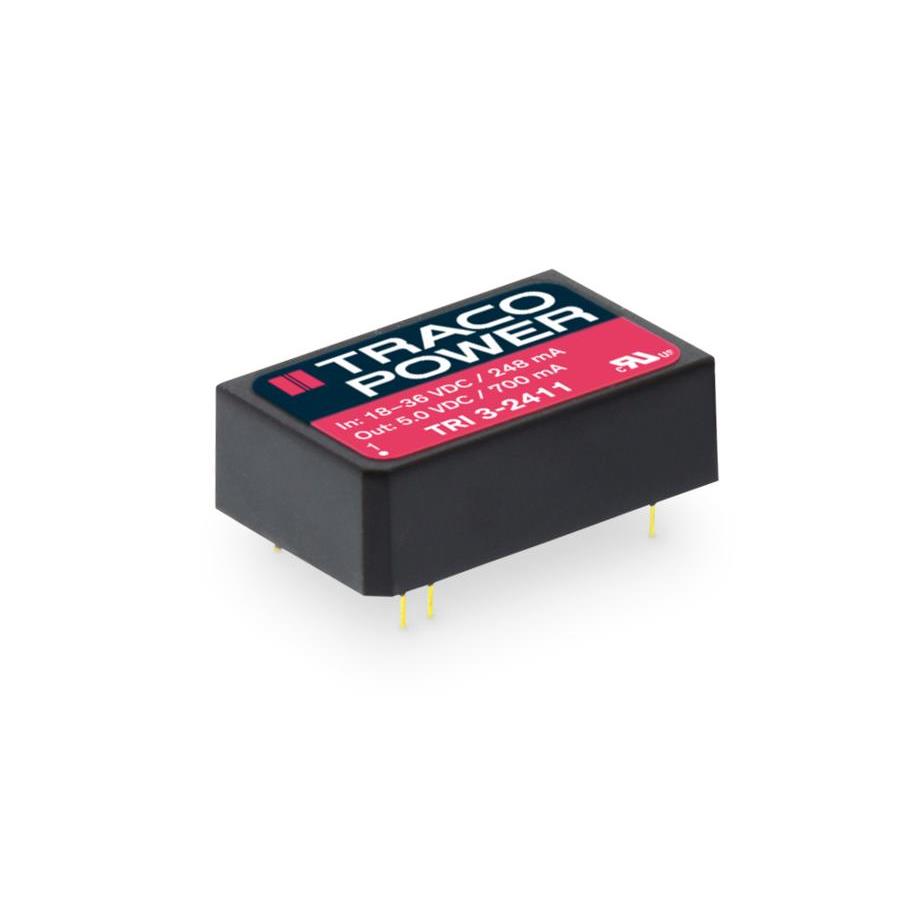

Traco Power TRI 3-2413	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	15 V	CB cURus	36 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	235 mA	87 %	9 kV	18 V
Traco Power TRI 3-1215	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	96 °C	-40 C	3.5 W	24 V	CB cURus	18 V	24-DIP Module 5 Leads	Through Hole	ITE (Commercial)	Isolated Module	1	146 mA	86 %	9 kV	9 V
