101150702 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

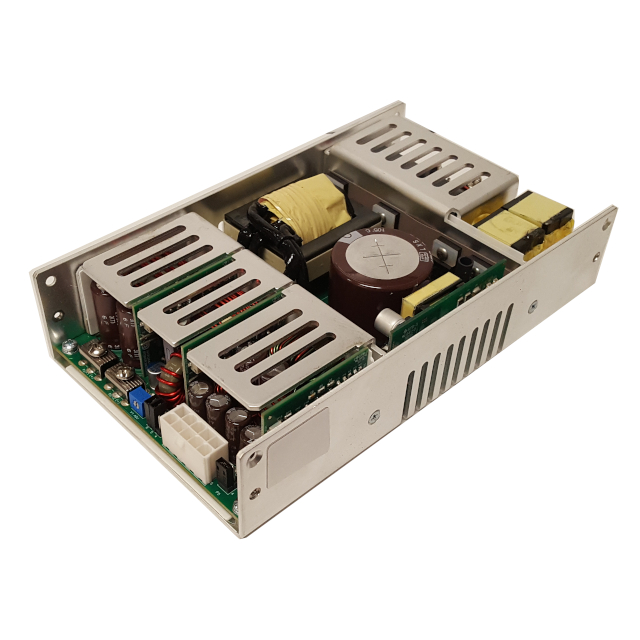

AC/DC CNVRT 24V -28V +/-12V 400W
| Part | Power (Watts) | Number of Outputs | Voltage - Output 2 | Voltage - Output 4 | Current - Output 3 | Type | Current - Output 2 | Efficiency | Standard Number | Current - Output 4 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 3 | Mounting Type | Features | Current - Output 1 | Voltage - Output 1 | Approval Agency | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 400 W | 4 | -28 V | -12 V | 5 A | Chassis | 5 A | 87 % | 60601-1; 62368-1 | 5 A | 38 mm | 106.2 mm | 180.3 mm | 4.18 in | 7.1 in | 1.5 in | 12 V | Chassis Mount | Adjustable Output Remote Sense Universal Input | 12.5 A | 24 V | CE cURus TUV UKCA | ITE (Commercial) Medical | 100 VAC | 240 VAC | 70 °C | -20 °C |
