ADP2300 Series

1.2 A, 20 V, 700 kHz Nonsynchronous Step-down Switching Regulator

Catalog

1.2 A, 20 V, 700 kHz Nonsynchronous Step-down Switching Regulator

Part	Current - Output	Frequency - Switching	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Regulator Topology	Main Purpose	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Output Type	Topology	Output Configuration	Voltage - Input (Max) [Max]	Function	Voltage - Output (Min/Fixed)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max) [Max]	Mounting Type	Supplier Device Package	Package / Case	Voltage - Input (Min) [Min]	Number of Outputs

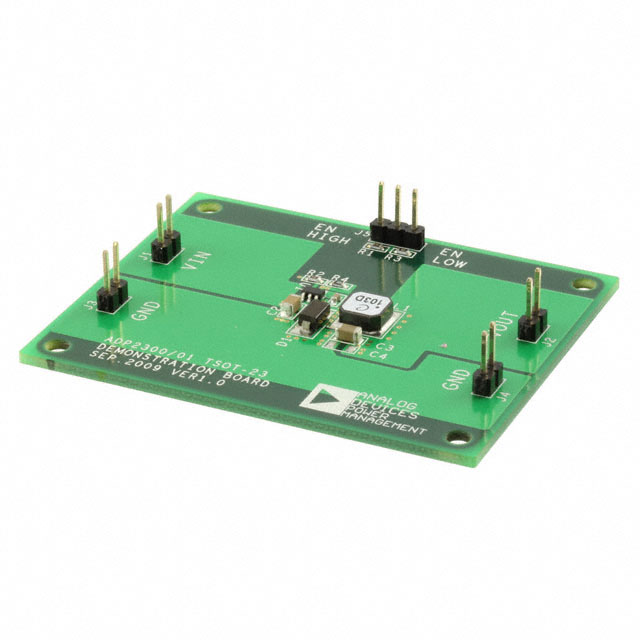

Analog Devices ADP2300-EVALZ	1.2 A	700 kHz	Non-Isolated	1	Board(s)	3.3 V	Buck	DC/DC Step Down	Fully Populated	3 V	20 V	ADP2300
Analog Devices ADP2300AUJZ-R2	1.2 A	700 kHz											Adjustable	Buck	Positive	20 V	Step-Down	0.8 V	-40 °C	125 ¯C	17 V	Surface Mount	TSOT-6	SOT-23-6 Thin TSOT-23-6	3 V	1
Analog Devices ADP2300AUJZ-R7	1.2 A	700 kHz											Adjustable	Buck	Positive	20 V	Step-Down	0.8 V	-40 °C	125 ¯C	17 V	Surface Mount	TSOT-6	SOT-23-6 Thin TSOT-23-6	3 V	1

Catalog

1.2 A, 20 V, 700 kHz Nonsynchronous Step-down Switching Regulator

Key Features

• High efficiency, up to 91%

• 1.2 A maximum load current

• ±2% output accuracy over temperature range

• 700kHz (ADP2300) or 1.4MHz (ADP2301) switching frequency options

• Wide input voltage range: 3.0 V to 20 V

• Current-mode control architecture

• Output voltage from 0.8 V to 0.85×VIN

• See datasheet for additional features

Description

The ADP2300 /ADP2301are compact, constant-frequency, current-mode, step-down dc-to-dc regulators with integrated power MOSFET. The ADP2300 / ADP2301 devices run from any input voltage from 3.0 V up to 20 V, making them suitable for a wide range of applications. A precise, low voltage internal reference makes these devices ideal for generating a regulated output voltage as low as 0.8 V, with ±2% accuracy, for up to 1.2 A load current.There are two frequency options: the ADP2300 runs at 700 kHz and the ADP2301 runs at 1.4 MHz. These options allow users to make decisions based on the trade-off between efficiency and the size of the total solution. Current-mode control provides fast and stable line and load transient performance. Each ADP2300 / ADP2301 device includes an internal soft start to prevent inrush current at power up. Other key safety features include short-circuit protection, thermal shutdown (TSD) and input undervoltage lockout (UVLO). Precision enable pin threshold voltage allows ADP2300 / ADP2301 to be easily sequenced from other input/output supplies, or the enable pin can be used as a programmable UVLO input by using resistive divider.The ADP2300 / ADP2301 are available in a 6-lead TSOT package and are rated for the −40°C to +125°C junction temperature range.APPLICATIONSLDO replacement for digital load applicationsIntermediate power rail conversionCommunications and networkingIndustrial and instrumentationHealthcare and MedicalConsumer
