TXS0101 Series

1-bit bidirectional voltage-level shifter for open-drain and push-pull applications

Catalog

1-bit bidirectional voltage-level shifter for open-drain and push-pull applications

Part	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Number of Circuits	Features	Translator Type	Voltage - VCCA [Min]	Voltage - VCCA [Max]	Channels per Circuit	Package / Case	Supplier Device Package	Channel Type	Data Rate	Mounting Type

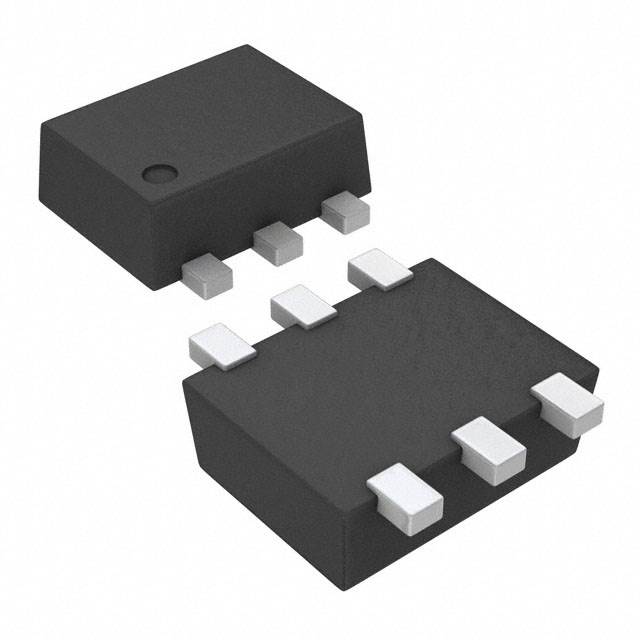

Texas Instruments TXS0101DRLR	2.3 V	5.5 V	85 °C	-40 °C	Open Drain Push-Pull	1	Auto-Direction Sensing	Voltage Level	1.65 V	3.6 V	1	SOT-563 SOT-666	SOT-5X3	Bidirectional	24 Mbps	Surface Mount
Texas Instruments TXS0101DBVRG4	2.3 V	5.5 V	85 °C	-40 °C	Open Drain Push-Pull	1	Auto-Direction Sensing	Voltage Level	1.65 V	3.6 V	1	SOT-23-6	SOT-23-6	Bidirectional	24 Mbps	Surface Mount
Texas Instruments TXS0101DBVR	2.3 V	5.5 V	85 °C	-40 °C	Open Drain Push-Pull	1	Auto-Direction Sensing	Voltage Level	1.65 V	3.6 V	1	SOT-23-6	SOT-23-6	Bidirectional	24 Mbps	Surface Mount
Texas Instruments TXS0101DRLRG4	2.3 V	5.5 V	85 °C	-40 °C	Open Drain Push-Pull	1	Auto-Direction Sensing	Voltage Level	1.65 V	3.6 V	1	SOT-563 SOT-666	SOT-5X3	Bidirectional	24 Mbps	Surface Mount
Texas Instruments TXS0101DCKT	2.3 V	5.5 V	85 °C	-40 °C	Open Drain Push-Pull	1	Auto-Direction Sensing	Voltage Level	1.65 V	3.6 V	1	6-TSSOP SC-88 SOT-363	SC-70-6	Bidirectional	24 Mbps	Surface Mount

Catalog

1-bit bidirectional voltage-level shifter for open-drain and push-pull applications

Key Features

• Latch-up performance exceeds 100mA per JESD 78, class IIESD protection exceeds JESD 22:A Port:2500V Human-Body Model (A114-B)200V Machine Model (A115-A)1500V Charged-Device Model (C101)B port:8kV Human-Body Model (A114-B)200V Machine Model (A115-A)1500V Charged-Device Model (C101)No direction-control signal neededMaximum data rates:24Mbps (push pull)2Mbps (open drain)Available in the Texas Instruments NanoFree™ package1.65V to 3.6V on A port and 2.3V to 5.5V on B port ( VCCA ≤ VCCB)VCC isolation feature – if either VCC input is at GND, both ports are in the high-impedance stateNo power-supply sequencing required – either VCCA or VCCB can be ramped firstIoff supports partial-power-down mode operationLatch-up performance exceeds 100mA per JESD 78, class IIESD protection exceeds JESD 22:A Port:2500V Human-Body Model (A114-B)200V Machine Model (A115-A)1500V Charged-Device Model (C101)B port:8kV Human-Body Model (A114-B)200V Machine Model (A115-A)1500V Charged-Device Model (C101)No direction-control signal neededMaximum data rates:24Mbps (push pull)2Mbps (open drain)Available in the Texas Instruments NanoFree™ package1.65V to 3.6V on A port and 2.3V to 5.5V on B port ( VCCA ≤ VCCB)VCC isolation feature – if either VCC input is at GND, both ports are in the high-impedance stateNo power-supply sequencing required – either VCCA or VCCB can be ramped firstIoff supports partial-power-down mode operation

Description

This one-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65V to 3.6V. VCCA must be less than or equal to VCCB . The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3V to 5.5V. This allows for low voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. To put the device in the high-impedance state during power up or power down, tie OE to GND through a pull-down resistor; the current-sourcing capability of the driver determines the minimum value of the resistor. This one-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65V to 3.6V. VCCA must be less than or equal to VCCB . The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3V to 5.5V. This allows for low voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. To put the device in the high-impedance state during power up or power down, tie OE to GND through a pull-down resistor; the current-sourcing capability of the driver determines the minimum value of the resistor.
