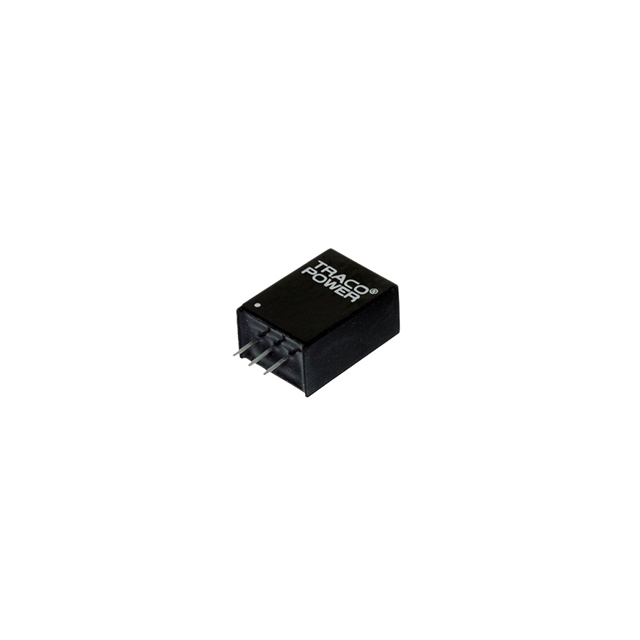

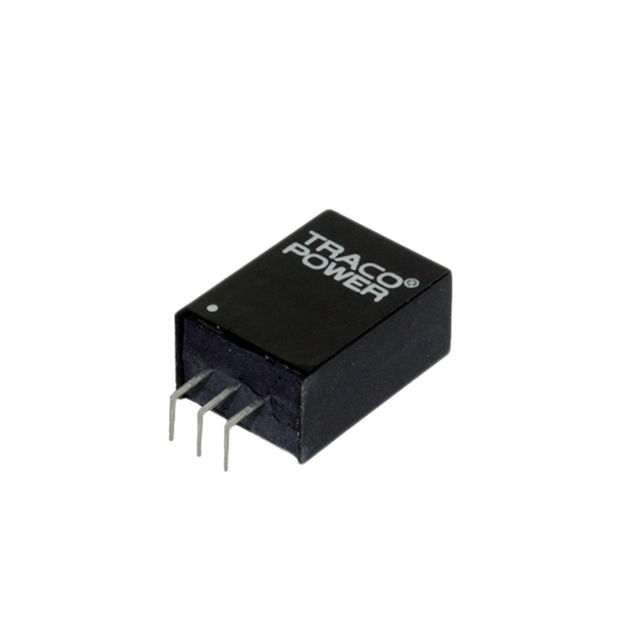

TSN 1 Series

Catalog

NON-ISOLATED DC/DC CONVERTERS -18TO-32VIN -15V -1A NON-ISO RA PIN

Part	Applications	Package / Case	Power (Watts)	Number of Outputs	Type	Mounting Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Efficiency	Voltage - Input (Max) [Max]
Traco Power TSN 1-24150A	ITE (Commercial)	3-SIP Module	15 W	1	Linear Regulator Replacement	Through Hole	-15 V	-18 V	-40 °C	85 °C	1 A	16.5 mm	7.5 mm	0.3 in	0.46 in	0.65 in	11.7 mm	SCP	96 %	-32 V
Traco Power TSN 1-2452	ITE (Commercial)	3-SIP Module	5.2 W	1	Linear Regulator Replacement	Through Hole	-5.2 V	-7 V	-40 °C	85 °C	1 A	11.7 mm	16.5 mm	0.65 in	0.3 "	0.46 in	7.5 mm	SCP	92 %	-32 V
Traco Power TSN 1-2490	ITE (Commercial)	3-SIP Module	9 W	1	Linear Regulator Replacement	Through Hole	-9 V	-11.5 V	-40 °C	85 °C	1 A	11.7 mm	16.5 mm	0.65 in	0.3 "	0.46 in	7.5 mm	SCP	94.5 %	-32 V
Traco Power TSN 1-2480	ITE (Commercial)	3-SIP Module	8 W	1	Linear Regulator Replacement	Through Hole	-8 V	-10.5 V	-40 °C	85 °C	1 A	11.7 mm	16.5 mm	0.65 in	0.3 "	0.46 in	7.5 mm	SCP	94 %	-32 V
Traco Power TSN 1-2490A	ITE (Commercial)	3-SIP Module	9 W	1	Linear Regulator Replacement	Through Hole	-9 V	-11.5 V	-40 °C	85 °C	1 A	16.5 mm	7.5 mm	0.3 in	0.46 in	0.65 in	11.7 mm	SCP	94.5 %	-32 V
