Low Noise, Wide Bandwidth, MEMS Accelerometer
Key Features
• Single, in plane axis accelerometer with analog output
• Full-scale range: ±100g
• Linear frequency response range: dc to 23 kHz typical (3 dB point)Resonant frequency: 42 kHz typical
• Resonant frequency: 42 kHz typical
• Ultralow noise density: 75 μg/√Hz
• Overrange sensing plus dc coupling allows fast recovery time
• Complete electromechanical self test
• Single-supply operationOutput voltage ratiometric to supplyLow power consumption: 1.0 mA typicalPower saving standby operation mode with fast recovery
• Output voltage ratiometric to supply
• Low power consumption: 1.0 mA typical
• Power saving standby operation mode with fast recovery
• RoHS compliant
• −40°C to +125°C operating temperature range

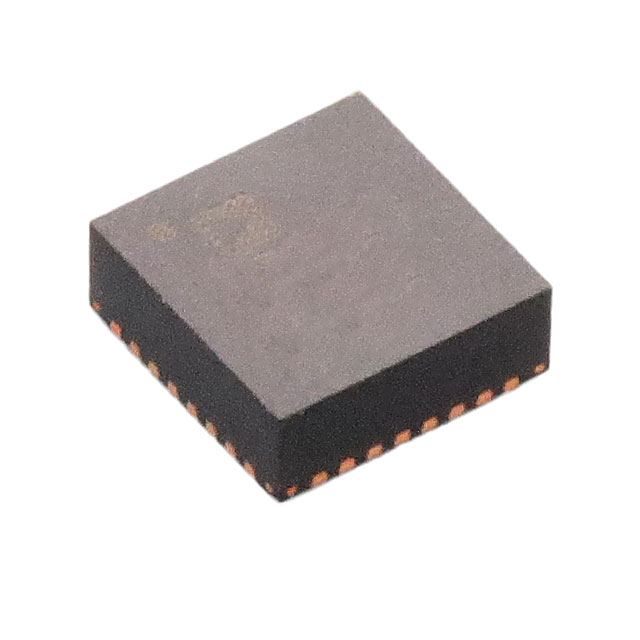

• 32-lead, 5 mm × 5 mm × 1.80 mm LFCSP package
• See datasheet for additional features
Description
AI
The ADXL1005 delivers ultralow noise density over an extended frequency range and is optimized for bearing fault detection and diagnostics. The ADXL1005 has typical noise density of 75 μg/√Hzacross the linear frequency range. Microelectronicmechanical systems (MEMS) accelerometers have stable and repeatable sensitivity, and are immune to external shocks up to 10,000g.The integrated signal conditioning electronics enable such features as full electrostatic self test (ST) and an overrange (OR) indicator, useful for embedded applications. With low power and single-supply operation of 3.3 V to 5.25 V, the ADXL1005 also enables wireless sensing product design. The ADXL1005 is available in a 5 mm × 5 mm × 1.80 mm LFCSP package, and operates over the −40°C to +125°C temperature range.APPLICATIONSCondition monitoringPredictive maintenanceAsset healthTest and measurementHealth usage monitoring system (HUMSs)Acoustic emissions
