HR212 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG MALE 8P TIN SOLDER CUP
| Part | Backshell Material, Plating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Connector Type | Color | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Number of Positions | Voltage Rating | Shielding | Contact Material | Shell Size - Insert [custom] | Fastening Type | Material Flammability Rating | Insert Material | Features | Shell Material | Shell Finish | Primary Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

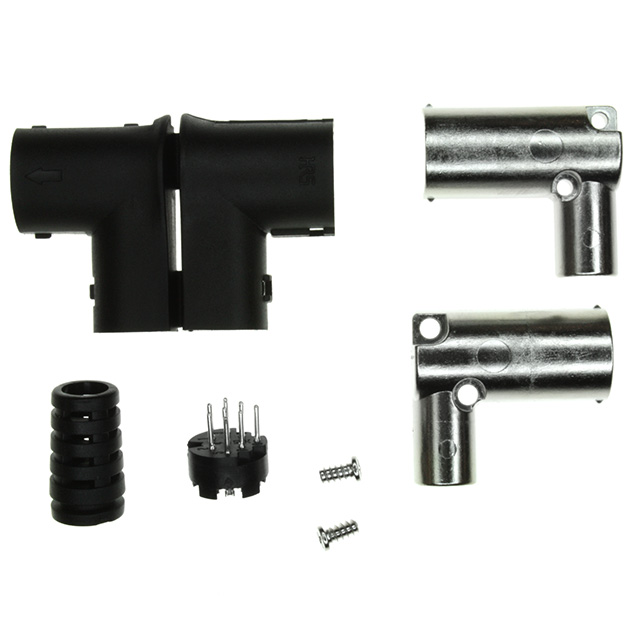

 Hirose Electric Co Ltd | Polypropylene (PP) | Free Hanging (In-Line) Right Angle | -15 °C | 60 °C | Keyed | Plug Male Pins | Black Silver | 39.4 µin | 1 µm | 8 | 100 VAC 140 VDC | Shielded | Copper Alloy | 10 | Snap-In | UL94 V-0 | Polybutylene Terephthalate (PBT) | Backshell Strain Relief | Zinc Alloy | Nickel | Metal | |||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Polyvinyl Chloride (PVC) | Free Hanging (In-Line) | -15 °C | 60 °C | Keyed | Plug Male Pins | Black Silver | 8 | 100 VAC 140 VDC | Shielded | Copper Alloy | 10 | Snap-In | UL94 V-0 | Polybutylene Terephthalate (PBT) | Backshell Strain Relief | Zinc Alloy | Nickel | Metal | Gold | 8 µin | 0.203 µm | ||||

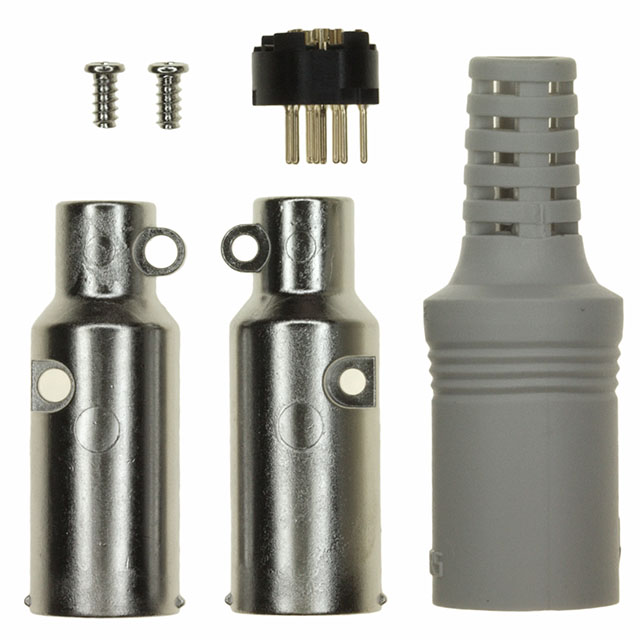

Hirose Electric Co Ltd | Free Hanging (In-Line) | -15 °C | 60 °C | Keyed | Plug Male Pins | Beige Silver | 8 | 100 VAC 140 VDC | Shielded | 10 | Snap-In | UL94 V-0 | Backshell Strain Relief | Gold | ||||||||||||

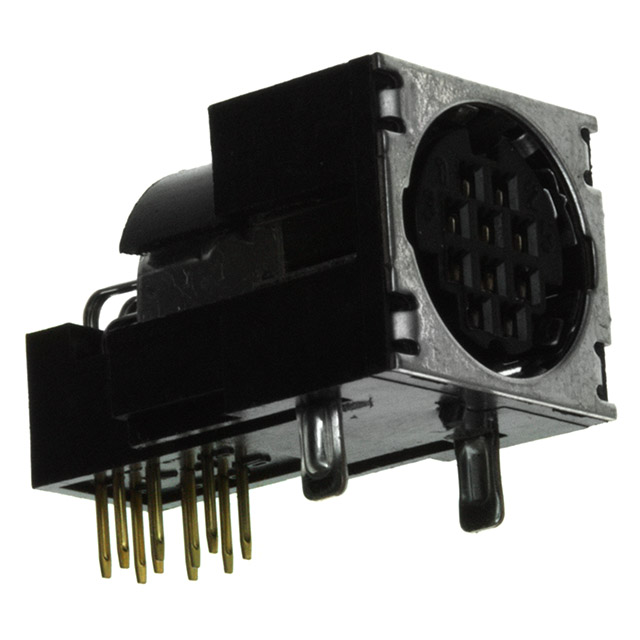

 Hirose Electric Co Ltd | Right Angle Through Hole | -15 °C | 60 °C | Keyed | Receptacle Female Sockets | Black Silver | 10 | 100 VAC 140 VDC | Shielded | Phosphor Bronze | 10 | Snap-In | UL94 V-0 | Polybutylene Terephthalate (PBT) | Board Guide Ground | Polybutylene Terephthalate (PBT) | Tin | Plastic | Gold | 8 µin | 0.203 µm | Solder | ||||
 Hirose Electric Co Ltd | Polyvinyl Chloride (PVC) | Free Hanging (In-Line) | -15 °C | 60 °C | Keyed | Plug Male Pins | Beige Silver | 8 | 100 VAC 140 VDC | Shielded | Copper Alloy | 10 | Snap-In | UL94 V-0 | Polybutylene Terephthalate (PBT) | Backshell Strain Relief | Zinc Alloy | Nickel | Metal | Gold | 8 µin | 0.203 µm | ||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||

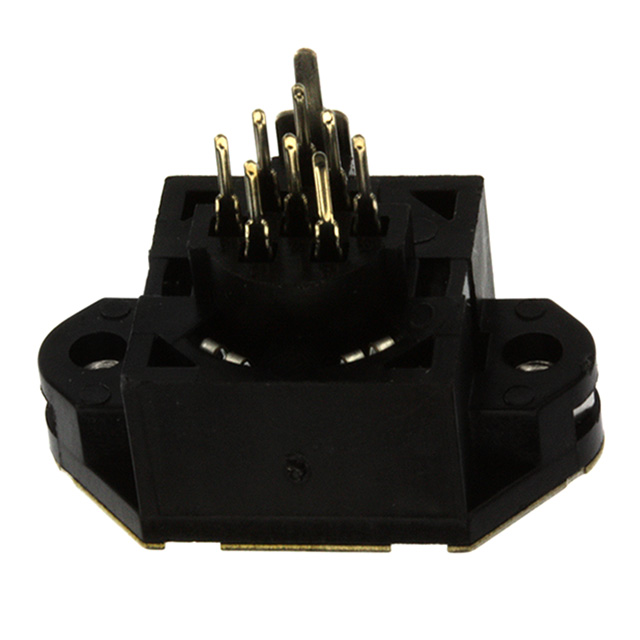

 Hirose Electric Co Ltd | Through Hole | -15 °C | 60 °C | Keyed | Receptacle Female Sockets | Black Silver | 39.4 µin | 1 µm | 8 | 100 VAC 140 VDC | Shielded | Phosphor Bronze | 10 | Snap-In | UL94 V-0 | Polybutylene Terephthalate (PBT) | Ground | Polybutylene Terephthalate (PBT) | Tin | Plastic | Solder | Flange | ||||
Hirose Electric Co Ltd |
