E2242S Series
Manufacturer: Prysmian Group
Beta
⌘K

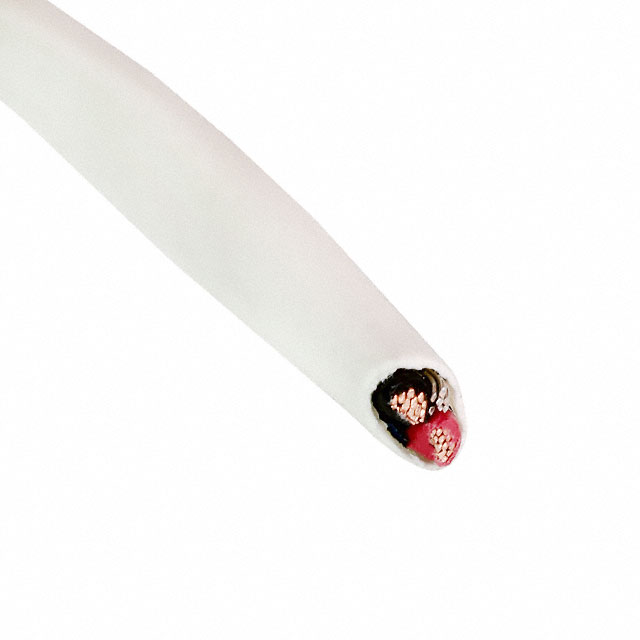

CABLE 2CON 16AWG WHT SHLD 500'
| Part | Shield Coverage | Shield Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Features | Usage | Length | Length | Conductor Strand [custom] | Conductor Strand [diameter] | Voltage | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Number of Conductors | Jacket Color | Shield Type | Jacket (Insulation) Material | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 % | Flexfoil® | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4.55 mm | 0.179 " | Copper Bare | 16 AWG | Drain Wire | Alarm Security Sound | 152.4 m | 500 ft | 19 | 0.0117 in | 300 VDC | 0.381 mm | 0.015 in | 2 | White | Foil | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | ||
Prysmian Group | 100 % | Flexfoil® | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4.55 mm | 0.179 " | Copper Bare | 16 AWG | Drain Wire | Alarm Security Sound | 152.4 m 304.8 m | 500 ft 1000 ft | 19 | 0.0117 in | 300 VDC | 0.381 mm | 0.015 in | 2 | Natural | Foil | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4.55 mm | 0.179 " | Copper Bare | 16 AWG | Drain Wire | Alarm Security Sound | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 19 | 0.0117 in | 300 VDC | 0.381 mm | 0.015 in | 2 | Natural | Foil | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m | ||
 Prysmian Group | 100 % | Flexfoil® | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4.55 mm | 0.179 " | Copper Bare | 16 AWG | Drain Wire | 304.8 m | 1000 ft | 19 | 0.0117 in | 300 VDC | 0.381 mm | 0.015 in | 2 | White | Foil | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | |||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4.55 mm | 0.179 " | Copper Bare | 16 AWG | Drain Wire | Alarm Security Sound | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 19 | 0.0117 in | 300 VDC | 0.381 mm | 0.015 in | 2 | White | Foil | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m | ||
Prysmian Group | 100 % | Flexfoil® | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4.55 mm | 0.179 " | Copper Bare | 16 AWG | Drain Wire | Alarm Security Sound | 15.24 m 304.8 m | 50 ft 1000 ft | 19 | 0.0117 in | 300 VDC | 0.381 mm | 0.015 in | 2 | White | Foil | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4.55 mm | 0.179 " | Copper Bare | 16 AWG | Drain Wire | 304.8 m | 1000 ft | 19 | 0.0117 in | 300 VDC | 0.381 mm | 0.015 in | 2 | White | Foil | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor |
