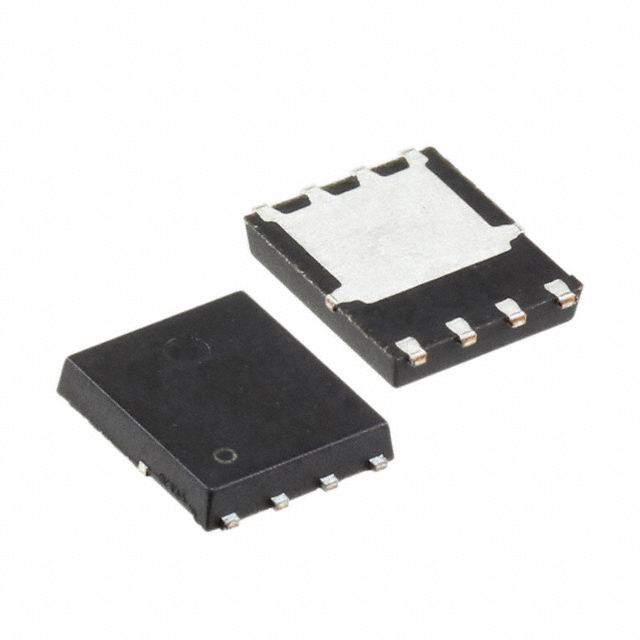

FDMS86368_F085 Series

N-Channel PowerTrench® MOSFET 80V, 80A, 4.5 mΩ

Catalog

N-Channel PowerTrench® MOSFET 80V, 80A, 4.5 mΩ

Part	Supplier Device Package	Qualification	Vgs (Max)	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	FET Type	Grade	Technology	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Power Dissipation (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds
ON Semiconductor FDMS86368-F085	Power56	AEC-Q101	20 V	80 V	4 V	N-Channel	Automotive	MOSFET (Metal Oxide)	4.5 mOhm	10 V	8-PowerVDFN	75 nC	Surface Mount	214 W	-55 °C	175 ░C	4350 pF

N-Channel PowerTrench® MOSFET 80V, 80A, 4.5 mΩ

• Typical RDS(on)= 3.7 mΩ at VGS= 10V, ID= 80 A

• Typical Qg(tot)= 57 nC at VGS= 10V, ID= 80 A

• UIS Capability

• RoHS Compliant

• Qualified to AEC Q101

N-Channel PowerTrench®MOSFET 80V, 80A, 4.5 mΩ
