C2534 Series
Manufacturer: Prysmian Group
Beta
⌘K

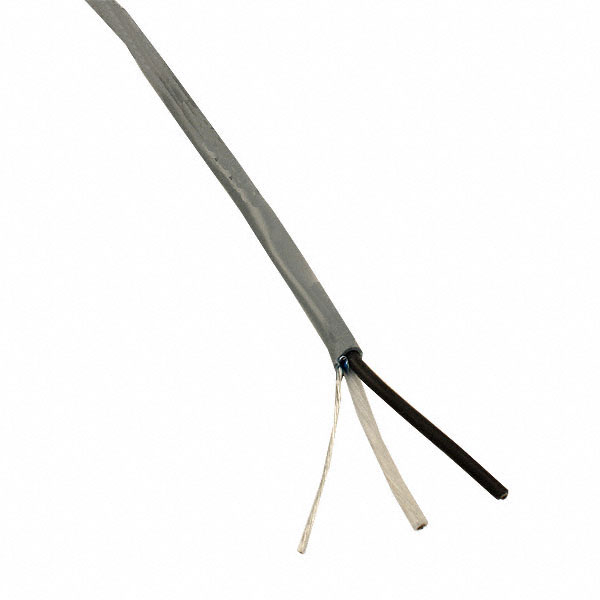

CABLE 2COND 18AWG GRAY SHLD
| Part | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Material | Features | Number of Conductors | Jacket Color | Conductor Insulation | Conductor Material | Shield Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Communication Control | 16 | 30 AWG | 100 % | 5.11 mm | 0.201 in | 18 AWG | Flexfoil® | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
 Prysmian Group | Communication Control | 16 | 30 AWG | 100 % | 5.11 mm | 0.201 in | 18 AWG | Flexfoil® | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 15.24 m 304.8 m | 50 ft 1000 ft |
Prysmian Group | Communication Control | 16 | 30 AWG | 5.11 mm | 0.201 in | 18 AWG | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 15.24 m 304.8 m | 50 ft 1000 ft | ||
Prysmian Group | Communication Control | 16 | 30 AWG | 100 % | 5.11 mm | 0.201 in | 18 AWG | Flexfoil® | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 762 m | 2500 ft |
Prysmian Group | Communication Control | 16 | 30 AWG | 5.11 mm | 0.201 in | 18 AWG | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | ||
Prysmian Group | Communication Control | 16 | 30 AWG | 5.11 mm | 0.201 in | 18 AWG | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 762 m | 2500 ft | ||
Prysmian Group | Communication Control | 16 | 30 AWG | 100 % | 5.11 mm | 0.201 in | 18 AWG | Flexfoil® | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
Prysmian Group | Communication Control | 16 | 30 AWG | 5.11 mm | 0.201 in | 18 AWG | Drain Wire | 2 | Gray | Polyethylene (PE) | Copper Tinned | Foil | 300 VDC | 0.02 " | 0.508 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
