AMEOF45 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 3.3V 26.4W

Part	Voltage - Isolation	Voltage - Output 1	Type	Mounting Type	Standard Number	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]
aimtec AMEOF45-3.3SJZ	3000 V	3.3 V	Open Frame	Chassis Mount	62368-1	ITE (Commercial)	70 °C	-25 °C	26 W	Universal Input	1	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	76 %	8 A
aimtec AMEOF45-9SJZ	3000 V	9 V	Open Frame	Chassis Mount	62368-1	ITE (Commercial)	70 °C	-25 °C	40 W	Universal Input	1	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	84 %	4.44 A
aimtec AMEOF45-48SJZ	3000 V	48 V	Open Frame	Chassis Mount		ITE (Commercial)	70 °C	-25 °C	45 W	Universal Input	1	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	87 %	940 mA	85 VAC 100 V	264 VAC 370 VDC
aimtec AMEOF45-24SJZ	3000 V	24 V	Open Frame	Chassis Mount		ITE (Commercial)	70 °C	-25 °C	45 W	Universal Input	1	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	86 %	1.88 A	85 VAC 100 V	264 VAC 370 VDC
aimtec AMEOF45-15SJZ	3000 V	15 V	Open Frame	Chassis Mount		ITE (Commercial)	70 °C	-25 °C	45 W	Universal Input	1	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	86 %	3 A	85 VAC 100 V	264 VAC 370 VDC
aimtec AMEOF45-5SJZ	3000 V	5 V	Open Frame	Chassis Mount		ITE (Commercial)	70 °C	-25 °C	40 W	Universal Input	1	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm		8 A	85 VAC 100 V	264 VAC 370 VDC

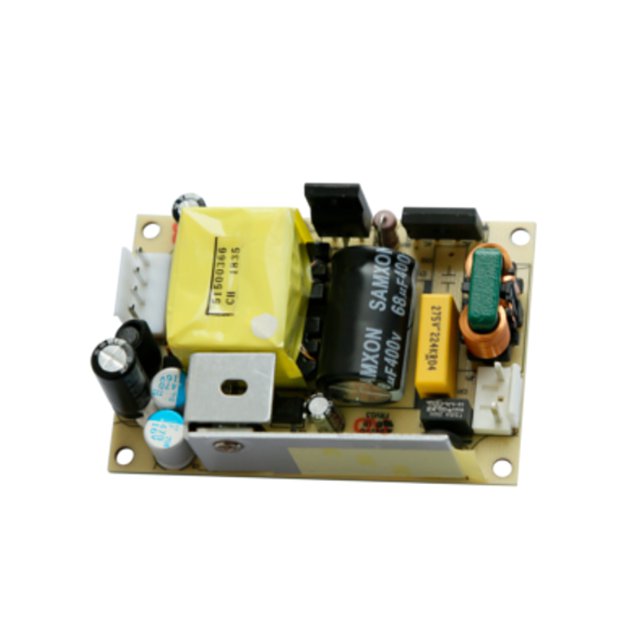

aimtec AMEOF45-12SJZ	3000 V	12 V	Open Frame	Chassis Mount		ITE (Commercial)	70 °C	-25 °C	45 W	Universal Input	1	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	84 %	3.75 A	85 VAC 100 V	264 VAC 370 VDC
