PR-1634B Series

Catalog

CONN HEADER R/A 34POS

Part	Shrouding	Fastening Type	Number of Rows [custom]	Mounting Type	Features	Current Rating (Amps)	Number of Positions Loaded	Number of Positions [custom]	Material Flammability Rating	Style	Termination	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Material	Voltage Rating	Contact Finish - Mating	Connector Type	Contact Shape	Contact Type	Insulation Height	Insulation Height
Hirose Electric Co Ltd PR-1634BG-STAR(59)	Shrouded - 2 Wall	Latch Lock	3	Right Angle Through Hole	Bracket	3 A	All	34	UL94 V-0	Board to Cable/Wire	Solder	0.138 in	3.5 mm	Blue	Brass	300 VDC	Gold	Header Reverse Pin	Square	Male Pin
Hirose Electric Co Ltd PR-1634BG-STA(59)	Shrouded - 2 Wall	Latch Lock	3	Right Angle Through Hole	Bracket	3 A	All	34	UL94 V-0	Board to Cable/Wire	Solder	0.138 in	3.5 mm	Blue	Brass	300 VDC	Gold	Header	Square	Male Pin

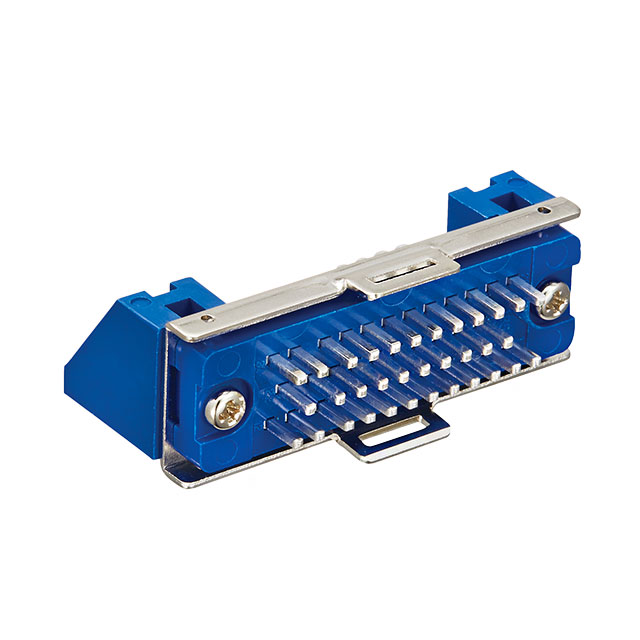

Hirose Electric Co Ltd PR-1634BA-ST(50)	Shrouded - 2 Wall	Latch Holder	3	Right Angle Through Hole	Bracket	3 A	All	34	UL94 V-0	Board to Cable/Wire	Solder	0.138 in	3.5 mm	Blue	Brass	300 VDC	Silver	Header	Square	Male Pin	18.5 mm	0.728 "
