AD9234 Series

Catalog

2-CHANNEL DUAL ADC PIPELINED 500MSPS 12-BIT JESD204B 64-PIN LFCSP EP TRAY

Part	Number of Bits	Number of A/D Converters	Configuration	Reference Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Architecture	Input Type	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Mounting Type	Sampling Rate (Per Second)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Inputs	Data Interface	Package / Case	Ratio - S/H:ADC	Supplier Device Package	Utilized IC / Part	Supplied Contents	Power (Typ) @ Conditions
Analog Devices AD9234BCPZ-500	12 bits	1	S/H-ADC	Internal	1.28 V	1.22 V	Pipelined	Differential	1.28 V 2.56 V	1.22 V 2.44 V	Surface Mount	500 M	85 °C	-40 °C	2	JESD204B	64-WFQFN Exposed Pad CSP	1:1	64-LFCSP (9x9)
Analog Devices AD9234BCPZ-1000	12 bits	1	S/H-ADC	Internal	1.28 V	1.22 V	Pipelined	Differential	1.28 V 2.56 V	1.22 V 2.44 V	Surface Mount	1 G	85 °C	-40 °C	2	JESD204B	64-WFQFN Exposed Pad CSP	1:1	64-LFCSP (9x9)
Analog Devices AD9234BCPZRL7-500	12 bits	1	S/H-ADC	Internal	1.28 V	1.22 V	Pipelined	Differential	1.28 V 2.56 V	1.22 V 2.44 V	Surface Mount	500 M	85 °C	-40 °C	2	JESD204B	64-WFQFN Exposed Pad CSP	1:1	64-LFCSP (9x9)

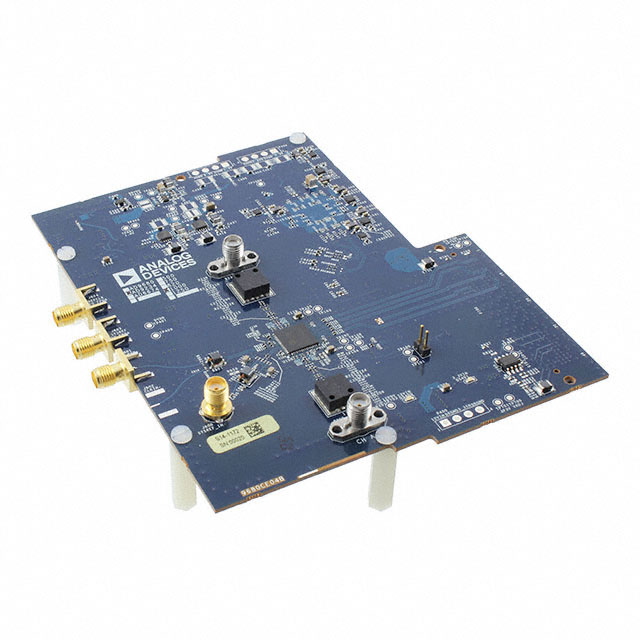

Analog Devices AD9234-1000EBZ	12 bits	2										1 G				JESD204B Serial				AD9234	Board(s)	3 W
Analog Devices AD9234BCPZRL7-1000	12 bits	1	S/H-ADC	Internal	1.28 V	1.22 V	Pipelined	Differential	1.28 V 2.56 V	1.22 V 2.44 V	Surface Mount	1 G	85 °C	-40 °C	2	JESD204B	64-WFQFN Exposed Pad CSP	1:1	64-LFCSP (9x9)

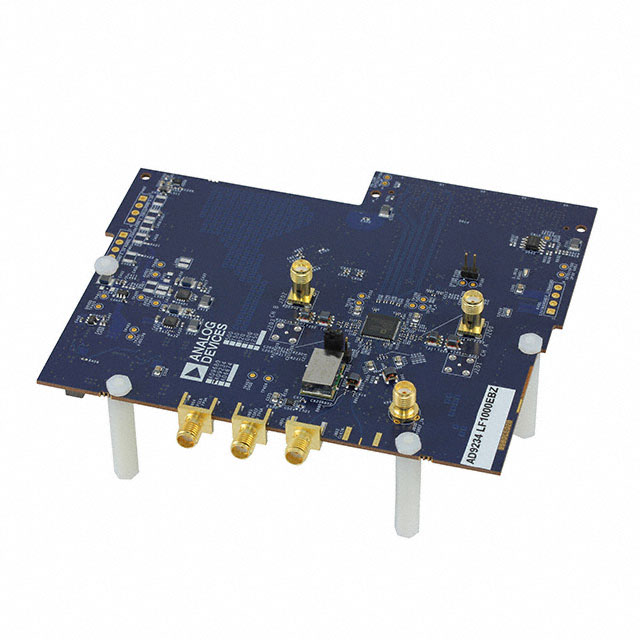

Analog Devices AD9234-LF1000EBZ	12 bits	2										1 G				JESD204B Serial				AD9234	Board(s)	3 W
