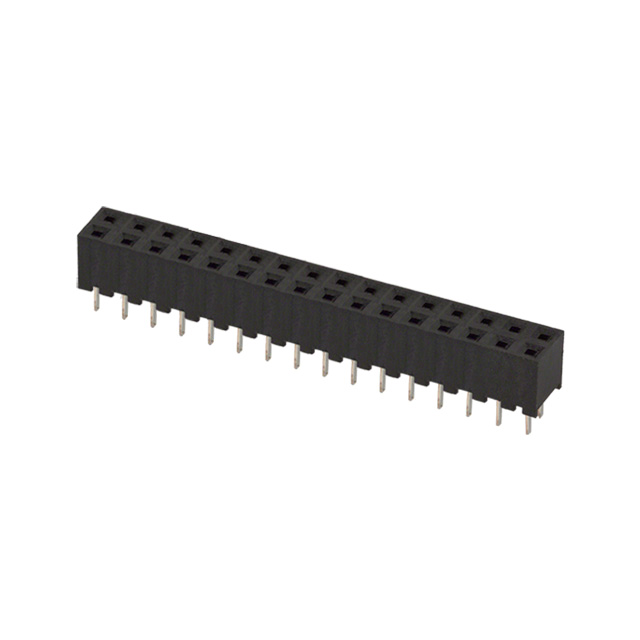

A3C-32DA Series

Catalog

CONN RCPT 32POS 0.079 GOLD PCB

Part	Contact Shape	Contact Material	Applications	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Material Flammability Rating	Insulation Color	Style	Contact Finish - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Connector Type	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish - Post	Mated Stacking Heights	Mounting Type	Contact Length - Post
Hirose Electric Co Ltd A3C-32DA-2DSA(71)	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	8 µin	0.203 µm	0.118 in	3 mm	Female Socket	UL94 V-0	Black	Board to Board Cable	Gold	Push-Pull	-55 C	85 °C	All	0.165 in	4.2 mm	Solder	Receptacle	2	0.079 "	2 mm	2 mm	0.079 in	200 VAC	Tin	5.1 mm 6 mm	Through Hole
Hirose Electric Co Ltd A3C-32DA-2DSE	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	8 µin	0.203 µm	0.05 "	1.27 mm	Female Socket	UL94 V-0	Black	Board to Board Cable	Gold	Push-Pull	-55 C	85 °C	All	0.165 in	4.2 mm	Solder	Receptacle	2	0.079 "	2 mm	2 mm	0.079 in	200 VAC	Tin	5.1 mm 6 mm	Through Hole
Hirose Electric Co Ltd A3C-32DA-2DSC	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	8 µin	0.203 µm		0.079 in	Female Socket	UL94 V-0	Black	Board to Board Cable	Gold	Push-Pull	-55 C	85 °C	All	0.165 in	4.2 mm	Solder	Receptacle	2	0.079 "	2 mm	2 mm	0.079 in	200 VAC	Tin	5.1 mm 6 mm	Through Hole	2 mm
Hirose Electric Co Ltd A3C-32DA-2DSE(71)	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	8 Áin 8 µin	0.203 Ám 0.203 µm	0.05 "	1.27 mm	Female Socket	UL94 V-0	Black	Board to Board Cable	Gold	Push-Pull	-55 C	85 °C	All	0.165 in	4.2 mm	Solder	Receptacle	2	0.079 "	2 mm	2 mm	0.079 in	200 VAC	Tin	5.1 mm 6 mm	Through Hole
Hirose Electric Co Ltd A3C-32DA-2DSC(71)	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	8 µin	0.203 µm		0.079 in	Female Socket	UL94 V-0	Black	Board to Board Cable	Gold	Push-Pull	-55 C	85 °C	All	0.165 in	4.2 mm	Solder	Receptacle	2	0.079 "	2 mm	2 mm	0.079 in	200 VAC	Tin	5.1 mm 6 mm	Through Hole	2 mm
Hirose Electric Co Ltd A3C-32DA-2DSA	Square	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	8 µin	0.203 µm	0.118 in	3 mm	Female Socket	UL94 V-0	Black	Board to Board Cable	Gold	Push-Pull	-55 C	85 °C	All	0.165 in	4.2 mm	Solder	Receptacle	2	0.079 "	2 mm	2 mm	0.079 in	200 VAC	Tin	5.1 mm 6 mm	Through Hole
