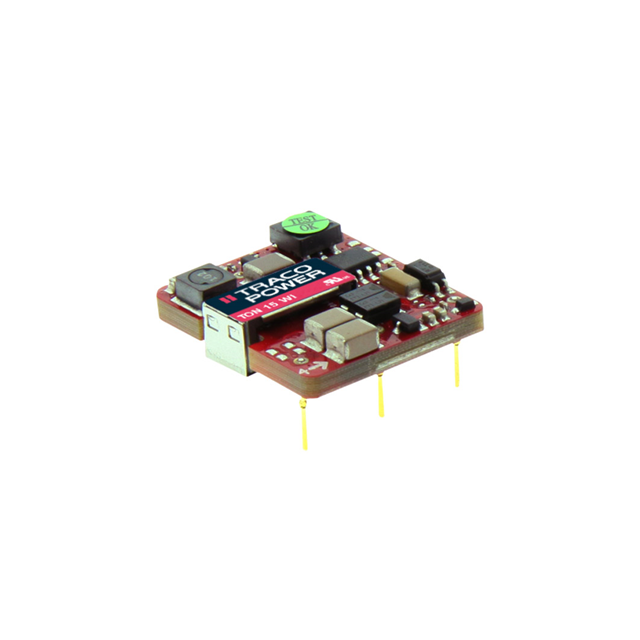

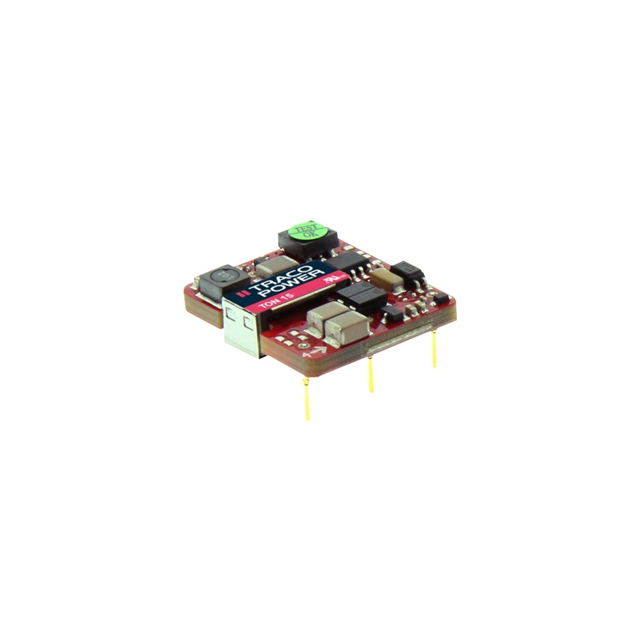

TON 15 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 15V 15W
| Part | Mounting Type | Voltage - Input (Max) [Max] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Voltage - Input (Min) [Min] | Type | Number of Outputs | Efficiency | Features | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Current - Output (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Through Hole | 36 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 9 V | Isolated Module | 1 | 86 % | OCP OVP Remote On/Off SCP | 15 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 15 W | 1 A | 6-DIP Module |
 Traco Power | Through Hole | 36 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 18 V | Isolated Module | 1 | 87 % | OCP OVP Remote On/Off SCP UVLO | 5 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 15 W | 3 A | 6-DIP Module |
 Traco Power | Through Hole | 75 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 36 V | Isolated Module | 1 | 87 % | OCP OVP Remote On/Off SCP UVLO | 5 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 15 W | 3 A | 6-DIP Module |
Traco Power | Through Hole | 36 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 18 V | Isolated Module | 1 | 86 % | OCP OVP Remote On/Off SCP UVLO | 3.3 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 12 W | 3.5 A | 6-DIP Module |
Traco Power | Surface Mount | 75 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 36 V | Isolated Module | 1 | 87 % | OCP OVP Remote On/Off SCP UVLO | 5 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 15 W | 3 A | 6-SMD Module |
 Traco Power | Surface Mount | 36 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 18 V | Isolated Module | 1 | 88 % | OCP OVP Remote On/Off SCP UVLO | 15 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 15 W | 1 A | 6-SMD Module |
Traco Power | Through Hole | 75 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 18 V | Isolated Module | 1 | 87 % | OCP OVP Remote On/Off SCP | 5 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 15 W | 3 A | 6-DIP Module |
Traco Power | Surface Mount | 75 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 36 V | Isolated Module | 1 | 85 % | OCP OVP Remote On/Off SCP UVLO | 3.3 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 12 W | 3.5 A | 6-SMD Module |
Traco Power | Surface Mount | 75 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 18 V | Isolated Module | 1 | 86 % | OCP OVP Remote On/Off SCP | 12 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 16 W | 1.3 A | 6-SMD Module |
Traco Power | Through Hole | 36 V | ITE (Commercial) | -40 °C | 85 °C | 2250 VDC | 9 V | Isolated Module | 1 | 87 % | OCP OVP Remote On/Off SCP | 5 V | 8.5 mm | 0.94 in | 1.1 in | 23.9 mm | 0.33 in | 27.9 mm | 15 W | 3 A | 6-DIP Module |
