BXRE-57 Series

Manufacturer: BRIDGELUX

Catalog

LED COB V18 CL WHT SQUARE 5700K

Part	Current - Max [Max]	Type	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Current - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Temperature - Test	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Configuration	CRI (Color Rendering Index)	Color	Light Emitting Surface (LES) [diameter]	Lens Type
BRIDGELUX BXRE-57C4001-C-73	2.34 A	Chip On Board (COB)	5700 K	3-Step MacAdam Ellipse	6227 lm	1.17 A	34 V	1.7 mm	85 °C	120 °	24 mm	24 mm	157 lm/W	Square	70	Cool White	19.2 mm	Flat
BRIDGELUX BXRE-57E2001-B-73	900 mA	Chip On Board (COB)	5700 K	3-Step MacAdam Ellipse	2374 lm 2378 lm	450 mA	33.9 V	1.7 mm	85 °C	120 °	19 mm	19 mm	156 lm/W	Square	80	Cool White	14 mm	Flat
BRIDGELUX BXRE-57C1001-B-73	540 mA	Chip On Board (COB)	5700 K	3-Step MacAdam Ellipse	1390 lm	270 mA	33.8 V	1.7 mm	85 °C	120 °	13.5 mm	13.5 mm	151 lm/W	Square	70	Cool White	10.2 mm	Flat
BRIDGELUX BXRE-57S0801-E-74	350 mA	Chip On Board (COB)	5700 K		789 lm	175 mA	34.4 V	1.7 mm	25 °C	120 °	12.5 mm	12.5 mm	131 lm/W	Square	98 98	Cool White	8.1 mm 9 mm	Flat
BRIDGELUX BXRE-57E1001-C-83	1 A	Chip On Board (COB)	5700 K	3-Step MacAdam Ellipse	1641 lm	300 mA	30.7 V	1.65 mm	25 °C	120 °	13.5 mm	13.5 mm	178 lm/W	Square	80	Cool White	10.2 mm	Flat

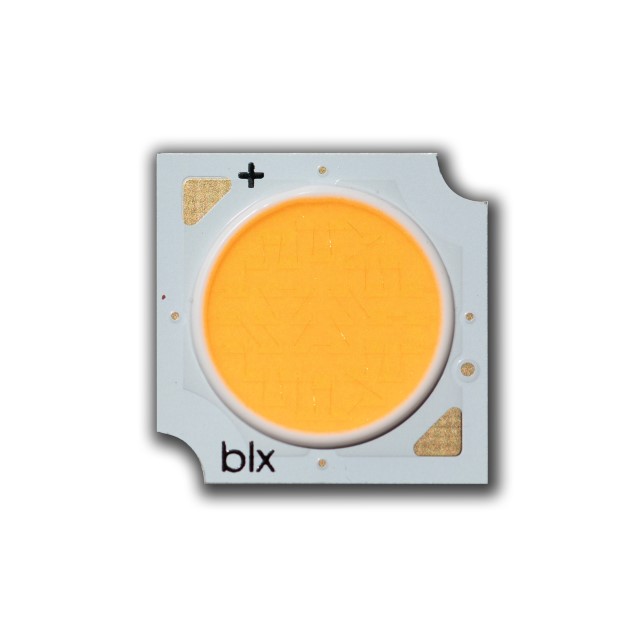

BRIDGELUX BXRE-57S1001-B-74	540 mA	Chip On Board (COB)	5700 K 5700 K		1103 lm	270 mA	33.7 V	1.7 mm	85 °C	120 °	13.5 mm	13.5 mm	121 lm/W	Square	95	Cool White	10.2 mm	Flat
BRIDGELUX BXRE-57E2001-C-74	1.26 A	Chip On Board (COB)	5700 K		3322 lm 3330 lm	630 mA	33.9 V	1.7 mm	85 °C	120 °	19 mm	19 mm	156 lm/W	Square	80	Cool White	14 mm	Flat
BRIDGELUX BXRE-57C6501-C-74	2.88 A	Chip On Board (COB)	5700 K		11513 lm 11870 lm	1.44 A	50.7 V	1.7 mm	85 °C	120 °	28 mm	28 mm	158 lm/W 163 lm/W	Square	70	Cool White	22.6 mm	Flat
BRIDGELUX BXRE-57E1001-B-74	540 mA	Chip On Board (COB)	5700 K		1378 lm	270 mA	34 V	1.7 mm	85 °C		13.5 mm	13.5 mm	150 lm/W	Square	80	Cool White	10.2 mm	Flat
BRIDGELUX BXRE-57E1001-B-73	540 mA	Chip On Board (COB)	5700 K	3-Step MacAdam Ellipse	1378 lm	270 mA	33.8 V	1.7 mm	85 °C	120 °	13.5 mm	13.5 mm	150 lm/W	Square	80	Cool White	10.2 mm	Flat
