RAA223011 Series

Catalog

EVAL BOARD FOR RAA223011

Part	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Power - Output	Voltage - Output	Regulator Topology	Current - Output	Frequency - Switching	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Contents
Renesas Electronics Corporation RTKA223011DE0000BU	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	3.6 W	12 V	Buck	300 mA	30 kHz	AC/DC Primary Side	265 VAC	185 VAC	RAA223011	Board(s)
Renesas Electronics Corporation RTKA223011DE0020BU	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	3.96 W	12 V	Buck	300 mA	30 kHz	AC/DC Primary Side	265 VAC	85 VAC	RAA223011	Board(s)
Renesas Electronics Corporation RTKA223011DR0040BU	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated		24 V	Buck	0.2 A	30 kHz	AC/DC Primary Side	265 VAC	85 VAC	RAA223011	Board(s)
Renesas Electronics Corporation RTKA223011DR0030BU	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated		24 V	Buck	0.2 A	30 kHz	AC/DC Primary Side	265 VAC	85 VAC	RAA223011	Board(s)

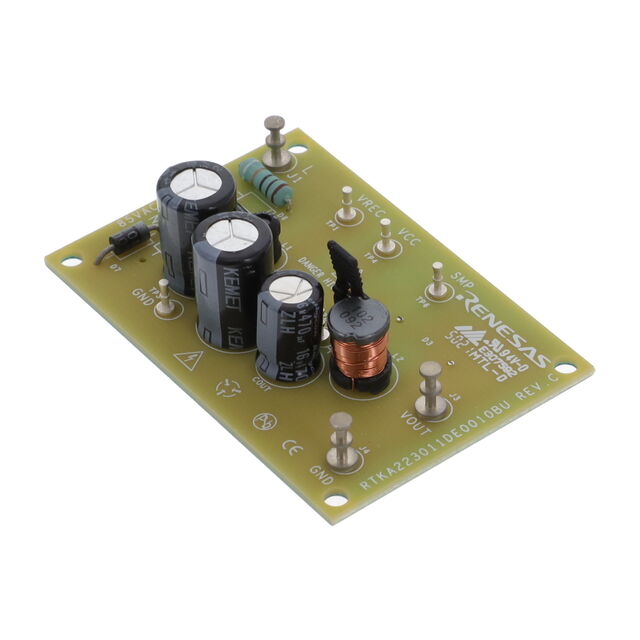

Renesas Electronics Corporation RTKA223011DE0010BU	1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	3.6 W	12 V	Buck	300 mA		AC/DC Converter	265 VAC	85 VAC	RAA223011	Board(s)
