QR/P4 Series

Catalog

RACK & PANEL CONNECTORS SHOULDER SCREW CRIMP TERMINAL

Part	Specifications	Accessory Type	Note	Number of Rows [custom]	Number of Positions	Connector Type	Color	Features	Mounting Type	Connector Usage	Pitch	Pitch	Connector Style

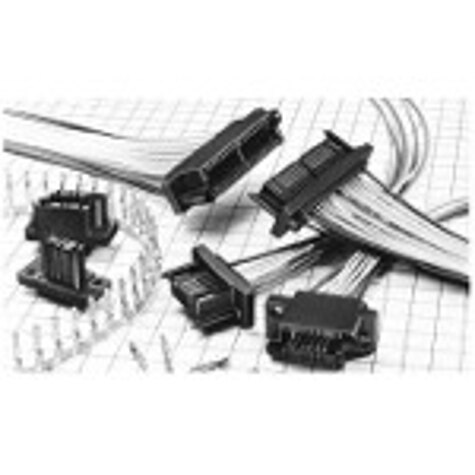

Hirose Electric Co Ltd QR/P4-SCREW(01)	M3 Thread	Screw

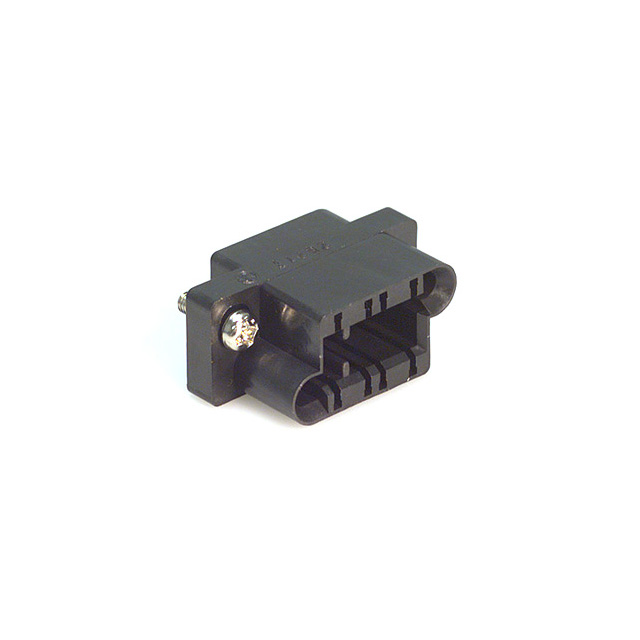

Hirose Electric Co Ltd QR/P4-8S-C(01)			Contacts Not Included	2	8	Housing for Female Sockets	Black	Mating Guide	Panel Mount	Receptacle	0.1 "	2.54 mm	Rack and Panel
Hirose Electric Co Ltd QR/P4-32S-C(01)				2		Housing for Female Sockets	Black	Mating Guide	Panel Mount	Receptacle	0.1 "	2.54 mm	Rack and Panel

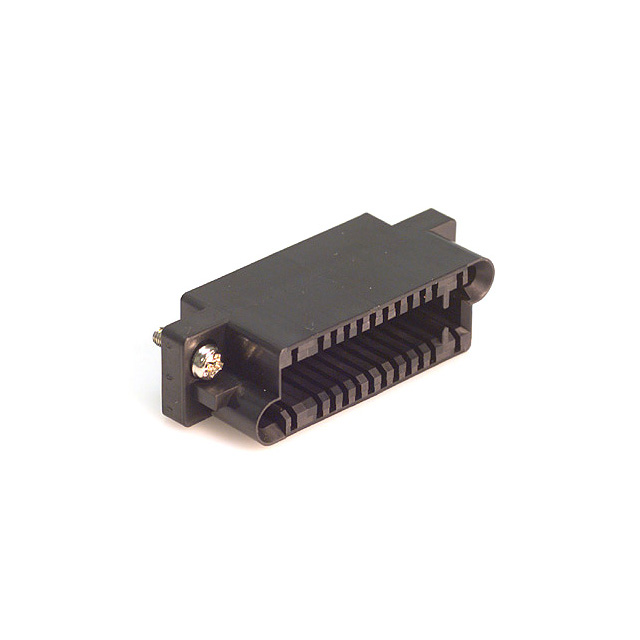

Hirose Electric Co Ltd QR/P4-24S-C(01)			Contacts Not Included	2	24	Housing for Female Sockets	Black	Mating Guide	Panel Mount	Receptacle	0.1 "	2.54 mm	Rack and Panel
Hirose Electric Co Ltd QR/P4-32S-C(02)			Contacts Not Included	2		Housing for Female Sockets	Black	Mating Guide	Panel Mount	Receptacle	0.1 "	2.54 mm	Rack and Panel
Hirose Electric Co Ltd QR/P4-32P-C(01)				2		Housing for Male Pins	Black	Guide Pin	Panel Mount	Plug	0.1 "	2.54 mm	Rack and Panel

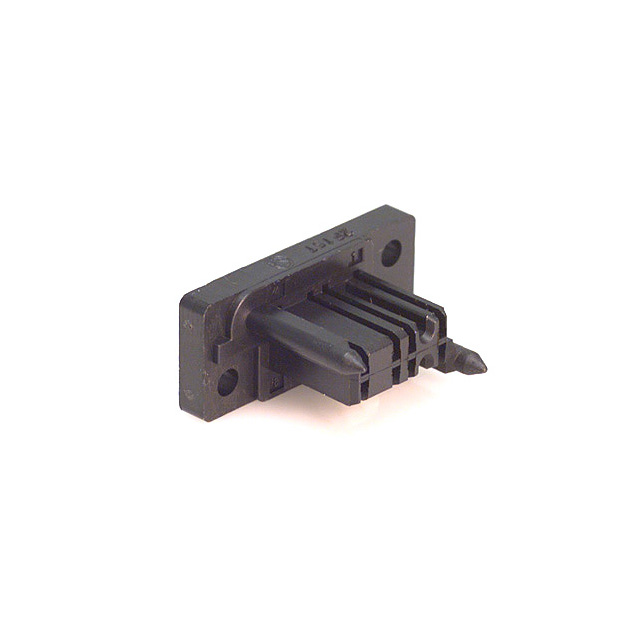

Hirose Electric Co Ltd QR/P4-8P-C(01)			Contacts Not Included	2	8	Housing for Male Pins	Black	Guide Pin	Panel Mount	Plug	0.1 "	2.54 mm	Rack and Panel

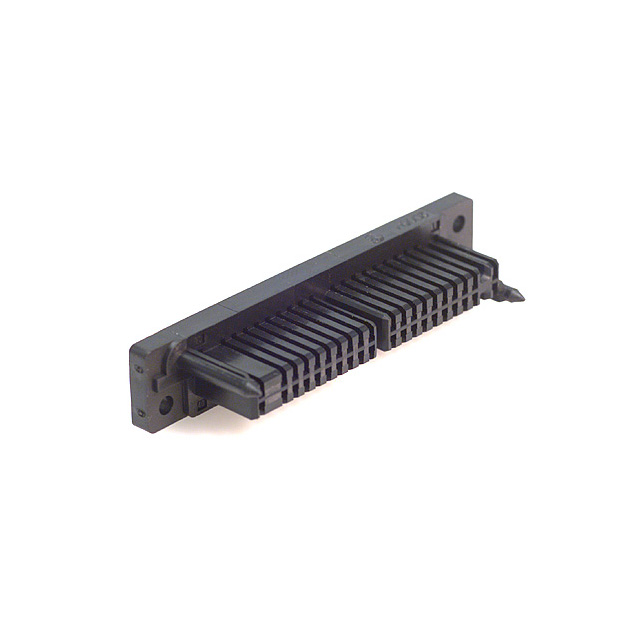

Hirose Electric Co Ltd QR/P4-40P-C(01)			Contacts Not Included	2	40	Housing for Male Pins	Black	Guide Pin	Panel Mount	Plug	0.1 "	2.54 mm	Rack and Panel
Hirose Electric Co Ltd QR/P4-SCREW	M3 Thread	Screw
