HRM-300 Series

Catalog

CONN SMA RCPT

Part	Body Finish	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Body Material	Shield Termination	Housing Color	Connector Type	Frequency - Max [Max]	Impedance	Contact Termination	Center Contact Material	Connector Style	Mounting Type	Number of Ports	Fastening Type	Mounting Feature	Features	Insertion Loss
Hirose Electric Co Ltd HRM-300-200B-2(40)
Hirose Electric Co Ltd HRM-300-134B(44)	Nickel	Polytetrafluoroethylene (PTFE)	-55 C	125 °C	1000	Gold	Brass	Solder	Silver	Receptacle Female Socket	12.4 GHz	50 Ohms	Solder	Beryllium Copper	SMA	Through Hole	1	Threaded
Hirose Electric Co Ltd HRM-300-110	Gold	Polytetrafluoroethylene (PTFE)				Gold	Stainless Steel	Solder	Gold	Receptacle Female Socket		50 Ohms	Solder	Beryllium Copper	SMA	Panel Mount	1	Threaded	Flange
Hirose Electric Co Ltd HRM-300-3H(49)
Hirose Electric Co Ltd HRM-300-58S(40)	Nickel	Polytetrafluoroethylene (PTFE)				Gold	Stainless Steel	Solder	Silver	Receptacle Female Socket		50 Ohms	Solder	Beryllium Copper	SMA	Panel Mount Right Angle	1	Threaded	Flange

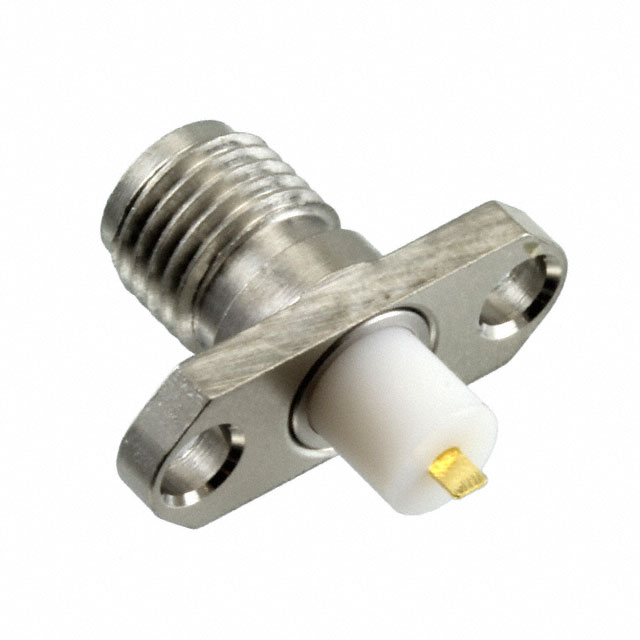

Hirose Electric Co Ltd HRM-300-11S		Polytetrafluoroethylene (PTFE)	-55 C	125 °C	1000	Gold	Stainless Steel	Solder	Silver	Receptacle Female Socket	18 GHz	50 Ohms	Solder	Beryllium Copper	SMA	Panel Mount	1	Threaded	Flange	Extended Insulation

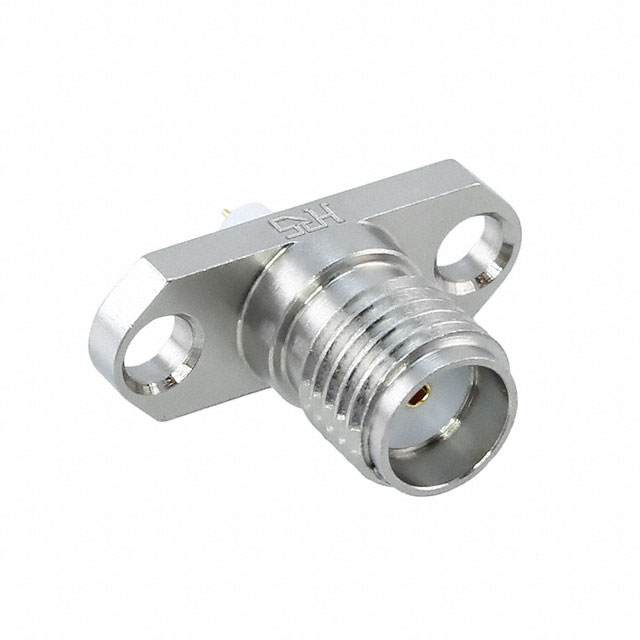

Hirose Electric Co Ltd HRM-300-110S		Polytetrafluoroethylene (PTFE)	-55 C	125 °C	1000	Gold	Stainless Steel	Solder	Silver	Receptacle Female Socket	12.4 GHz	50 Ohms	Solder	Beryllium Copper	SMA	Panel Mount	1	Threaded	Flange	Extended Insulation	0.1 dB

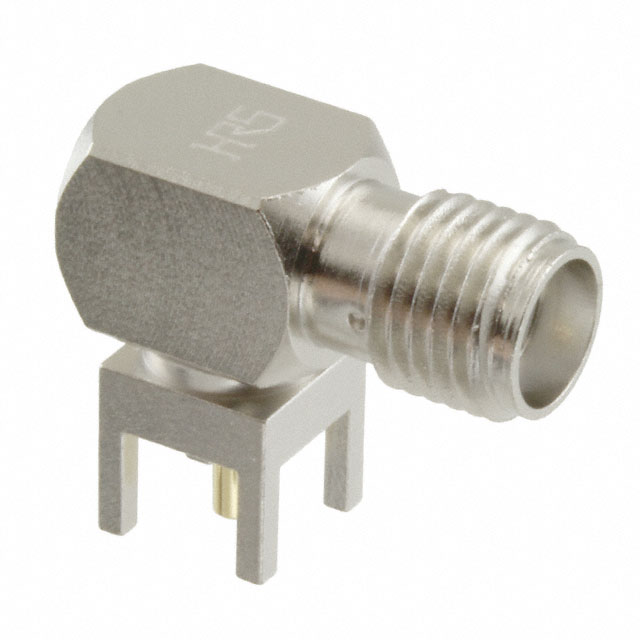

Hirose Electric Co Ltd HRM-300-126S(40)	Nickel	Polytetrafluoroethylene (PTFE)	-55 C	125 °C	1000	Gold	Stainless Steel	Solder	Silver	Receptacle Female Socket	12.4 GHz	50 Ohms	Solder	Beryllium Copper	SMA	Right Angle Through Hole	1	Threaded			0.1 dB
Hirose Electric Co Ltd HRM-300-100S
Hirose Electric Co Ltd HRM-300-14
