ISO1042-Q1 Series

Automotive, isolated CAN transceiver with 70-V bus fault protection & flexible data rate

Catalog

Automotive, isolated CAN transceiver with 70-V bus fault protection & flexible data rate

Part	Data Rate	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Duplex	Package / Case	Package / Case [custom]	Package / Case [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Supplier Device Package	Protocol	Qualification	Receiver Hysteresis	Type	Supplied Contents	Contents	Function	Utilized IC / Part	Package / Case [x]	Package / Case [y]
Texas Instruments ISO1042QDWVRQ1	5 MBd	Surface Mount	1.89 V 5.5 V	1.71 V	Full	8-SOIC	0.295 in	7.5 mm	-40 °C	125 °C	Automotive	8-SOIC	CANbus	AEC-Q100	125 mV	Transceiver Isolated

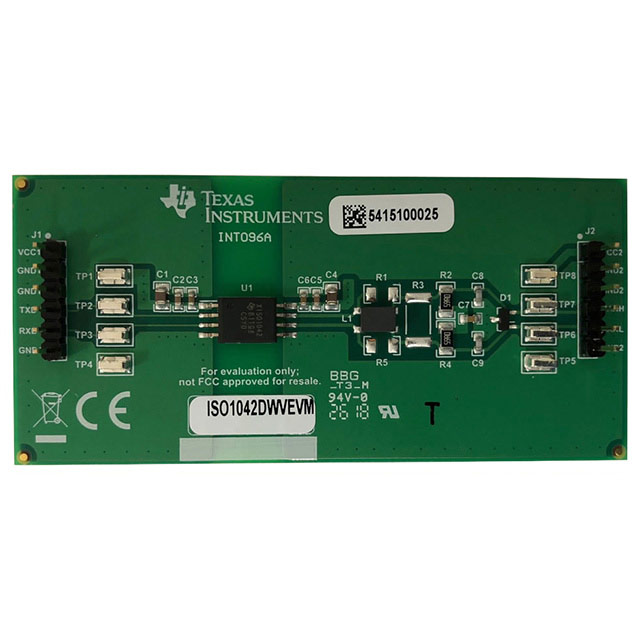

Texas Instruments ISO1042DWVEVM																Interface	Board(s)	Board(s)	CANbus	ISO1042
Texas Instruments ISO1042DWEVM																Interface	Board(s)			ISO1042
Texas Instruments ISO1042BQDWVRQ1	5 MBd	Surface Mount	1.89 V 5.5 V	1.71 V	Full	8-SOIC	0.295 in	7.5 mm	-40 °C	125 °C	Automotive	8-SOIC	CANbus	AEC-Q100	125 mV	Transceiver Isolated
Texas Instruments ISO1042BDWVR	5 MBd	Surface Mount	1.89 V 5.5 V	1.71 V 2.25 V	Full	8-SOIC	0.295 in	7.5 mm	-40 °C	125 °C		8-SOIC	CANbus		120 mV	Transceiver
Texas Instruments ISO1042QDWRQ1	5 MBd	Surface Mount	1.89 V 5.5 V	1.71 V 2.25 V	Full	16-SOIC			-40 °C	125 °C	Automotive	16-SOIC	CANbus	AEC-Q100	120 mV	Transceiver					0.295 in	7.5 mm
Texas Instruments ISO1042BQDWVQ1	5 MBd	Surface Mount	5.5 V	1.71 V 4.5 V		8-SOIC	0.295 in	7.5 mm	-40 °C	125 °C	Automotive	8-SOIC	CANbus	AEC-Q100	120 mV	Transceiver
Texas Instruments ISO1042QDWQ1	5 MBd	Surface Mount	1.89 V 5.5 V	1.71 V 2.25 V	Full	16-SOIC			-40 °C	125 °C	Automotive	16-SOIC	CANbus	AEC-Q100	120 mV	Transceiver					0.295 in	7.5 mm
Texas Instruments ISO1042DW	5 MBd	Surface Mount	1.89 V 5.5 V	1.71 V 2.25 V	Full	16-SOIC			-40 °C	125 °C		16-SOIC	CANbus		120 mV	Transceiver					0.295 in	7.5 mm
Texas Instruments ISO1042DWVR	5 MBd	Surface Mount	1.89 V 5.5 V	1.71 V 2.25 V	Full	8-SOIC	0.295 in	7.5 mm	-40 °C	125 °C		8-SOIC	CANbus		120 mV	Transceiver

Catalog

Automotive, isolated CAN transceiver with 70-V bus fault protection & flexible data rate

Key Features

• AEC Q100: Qualified for automotive applicationsGrade 1: –40°C to 125°C ambient temperatureFunctional Safety-CapableDocumentation available to aid functional safety system designMeets the ISO 11898-2:2016 physical layer standardSupports classic CAN up to 1 Mbps and FD (Flexible Data Rate) up to 5 MbpsLow loop delay: 152 nsProtection featuresDC bus fault protection voltage: ±70 VHBM ESD tolerance on bus pins: ±16 kVDriver Dominant Time Out (TXD DTO)Undervoltage protection on VCC1and VCC2Common-Mode Voltage Range: ±30 VIdeal passive, high impedance bus terminals when unpoweredHigh CMTI: 100 kV/µsVCC1voltage range: 1.71 V to 5.5 VSupports 1.8-V, 2.5-V, 3.3-V and 5.0-V logic interface to the CAN controllerVCC2Voltage Range: 4.5 V to 5.5 VRobust Electromagnetic Compatibility (EMC)System-level ESD, EFT, and surge immunityLow emissions16-SOIC and 8-SOIC package optionsIndustrial version available:ISO1042Safety-related certifications:7071-VPKVIOTMand 1500-VPKVIORM(Reinforced and Basic Options) per DIN VDE V 0884-11:2017-015000-VRMSIsolation for 1 Minute per UL 1577CQC, TUV and CSA certificationsAEC Q100: Qualified for automotive applicationsGrade 1: –40°C to 125°C ambient temperatureFunctional Safety-CapableDocumentation available to aid functional safety system designMeets the ISO 11898-2:2016 physical layer standardSupports classic CAN up to 1 Mbps and FD (Flexible Data Rate) up to 5 MbpsLow loop delay: 152 nsProtection featuresDC bus fault protection voltage: ±70 VHBM ESD tolerance on bus pins: ±16 kVDriver Dominant Time Out (TXD DTO)Undervoltage protection on VCC1and VCC2Common-Mode Voltage Range: ±30 VIdeal passive, high impedance bus terminals when unpoweredHigh CMTI: 100 kV/µsVCC1voltage range: 1.71 V to 5.5 VSupports 1.8-V, 2.5-V, 3.3-V and 5.0-V logic interface to the CAN controllerVCC2Voltage Range: 4.5 V to 5.5 VRobust Electromagnetic Compatibility (EMC)System-level ESD, EFT, and surge immunityLow emissions16-SOIC and 8-SOIC package optionsIndustrial version available:ISO1042Safety-related certifications:7071-VPKVIOTMand 1500-VPKVIORM(Reinforced and Basic Options) per DIN VDE V 0884-11:2017-015000-VRMSIsolation for 1 Minute per UL 1577CQC, TUV and CSA certifications

Description

The ISO1042-Q1 device is a galvanically-isolated controller area network (CAN) transceiver that meets the specifications of the ISO11898-2 (2016) standard. The ISO1042-Q1 device offers ±70-V DC bus fault protection and ±30-V common-mode voltage range. The device supports up to 5-Mbps data rate in CAN FD mode allowing much faster transfer of payload compared to classic CAN. This device uses a silicon dioxide (SiO2) insulation barrier with a withstand voltage of 5000 VRMSand a working voltage of 1060 VRMS. Electromagnetic compatibility has been significantly enhanced to enable system-level ESD, EFT, surge, and emissions compliance. Used in conjunction with isolated power supplies, the device protects against high voltage, and prevents noise currents from the bus from entering the local ground. The ISO1042-Q1 device is available for both basic and reinforced isolation (seeReinforced and Basic Isolation Options). The ISO1042-Q1 device supports a wide ambient temperature range of –40°C to +125°C. The device is available in the SOIC-16 (DW) package and a smaller SOIC-8 (DWV) package. The ISO1042-Q1 device is a galvanically-isolated controller area network (CAN) transceiver that meets the specifications of the ISO11898-2 (2016) standard. The ISO1042-Q1 device offers ±70-V DC bus fault protection and ±30-V common-mode voltage range. The device supports up to 5-Mbps data rate in CAN FD mode allowing much faster transfer of payload compared to classic CAN. This device uses a silicon dioxide (SiO2) insulation barrier with a withstand voltage of 5000 VRMSand a working voltage of 1060 VRMS. Electromagnetic compatibility has been significantly enhanced to enable system-level ESD, EFT, surge, and emissions compliance. Used in conjunction with isolated power supplies, the device protects against high voltage, and prevents noise currents from the bus from entering the local ground. The ISO1042-Q1 device is available for both basic and reinforced isolation (seeReinforced and Basic Isolation Options). The ISO1042-Q1 device supports a wide ambient temperature range of –40°C to +125°C. The device is available in the SOIC-16 (DW) package and a smaller SOIC-8 (DWV) package.
