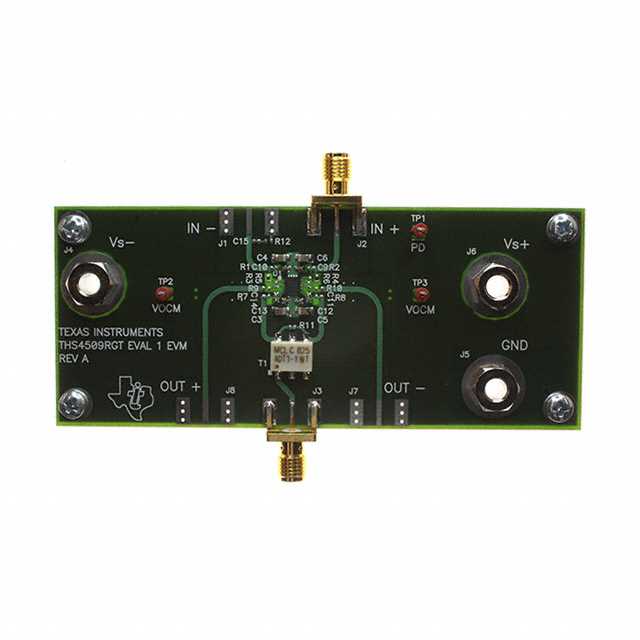

Automotive Catalog Wideband Operational Amplifier
Key Features
• Qualified for Automotive ApplicationsFully Differential ArchitectureCentered Input Common-Mode RangeMinimum Gain of 2 V/V (6 dB)Bandwidth: 1900 MHzSlew Rate: 6600 V/µs1% Settling Time: 2 nsHD2: –75 dBc at 100 MHzHD3: –80 dBc at 100 MHzOIP2: 73 dBm at 70 MHzOIP3: 37 dBm at 70 MHzInput Voltage Noise: 1.9 nV/√Hz(f > 10 MHz)Noise Figure: 17.1 dBOutput Common-Mode ControlPower Supply:Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)Current: 37.7 mAPower-Down Capability: 0.65 mAQualified for Automotive ApplicationsFully Differential ArchitectureCentered Input Common-Mode RangeMinimum Gain of 2 V/V (6 dB)Bandwidth: 1900 MHzSlew Rate: 6600 V/µs1% Settling Time: 2 nsHD2: –75 dBc at 100 MHzHD3: –80 dBc at 100 MHzOIP2: 73 dBm at 70 MHzOIP3: 37 dBm at 70 MHzInput Voltage Noise: 1.9 nV/√Hz(f > 10 MHz)Noise Figure: 17.1 dBOutput Common-Mode ControlPower Supply:Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)Current: 37.7 mAPower-Down Capability: 0.65 mA
Description
AI
The THS4509-Q1 is a wideband, fully differential operational amplifier designed for 5-V data-acquisition systems. It has very low noise at 1.9 nV/√Hz, and extremely low harmonic distortion of –75-dBc HD2and –80-dBc HD3at 100 MHz with 2 Vpp, G = 10 dB, and 1-kΩ load. Slew rate is very high at 6600 V/µs and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for minimum gain of 6 dB but is optimized for gain of 10 dB.
To allow for dc coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 3-mV offset (typical) from the set voltage, when set within 0.5 V of mid-supply, with less than 4-mV differential offset voltage. The common-mode set point is set to mid-supply by internal circuitry, which may be overdriven from an external source.
The input and output are optimized for best performance with their common-mode voltages set to mid-supply. Along with high-performance at low power-supply voltage, this makes for extremely high-performance single-supply 5-V data-acquisition systems.
The THS4509-Q1 is offered in a quad 16-pin leadless QFN package (RGT) and is characterized for operation over the full automotive temperature range from –40°C to 125°C.
The THS4509-Q1 is a wideband, fully differential operational amplifier designed for 5-V data-acquisition systems. It has very low noise at 1.9 nV/√Hz, and extremely low harmonic distortion of –75-dBc HD2and –80-dBc HD3at 100 MHz with 2 Vpp, G = 10 dB, and 1-kΩ load. Slew rate is very high at 6600 V/µs and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for minimum gain of 6 dB but is optimized for gain of 10 dB.
To allow for dc coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 3-mV offset (typical) from the set voltage, when set within 0.5 V of mid-supply, with less than 4-mV differential offset voltage. The common-mode set point is set to mid-supply by internal circuitry, which may be overdriven from an external source.
The input and output are optimized for best performance with their common-mode voltages set to mid-supply. Along with high-performance at low power-supply voltage, this makes for extremely high-performance single-supply 5-V data-acquisition systems.
The THS4509-Q1 is offered in a quad 16-pin leadless QFN package (RGT) and is characterized for operation over the full automotive temperature range from –40°C to 125°C.
