THS3111 Series

Catalog

SINGLE, LOW NOISE, HIGH VOLTAGE CURRENT-FEEDBACK AMPLIFIER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Number of Circuits	Amplifier Type	Voltage - Supply Span (Max) [Max]	Current - Output / Channel [custom]	Supplier Device Package	Slew Rate	Mounting Type	Voltage - Input Offset	Current - Supply	Voltage - Supply Span (Min) [Min]	Current - Input Bias	-3db Bandwidth	Package / Case [y]	Package / Case [x]	Channels per IC	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Output Type	Board Type	Utilized IC / Part	Current - Supply (Main IC)	Supplied Contents
Texas Instruments THS3111IDGN	85 °C	-40 °C	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1	Current Feedback	30 V	260 mA	8-HVSSOP	1300 V/µs	Surface Mount	3 mV	4.8 mA	10 V	1.5 µA	100 MHz
Texas Instruments THS3111IDR	85 °C	-40 °C	8-SOIC		1	Current Feedback	30 V	260 mA	8-SOIC	1300 V/µs	Surface Mount	3 mV	4.8 mA	10 V	1.5 µA	100 MHz	3.9 mm	0.154 in
Texas Instruments THS3111CD	70 °C	0 °C	8-SOIC		1	Current Feedback	30 V	260 mA	8-SOIC	1300 V/µs	Surface Mount	3 mV	4.8 mA	10 V	1.5 µA	100 MHz	3.9 mm	0.154 in
Texas Instruments THS3111IDG4	85 °C	-40 °C	8-SOIC		1	Current Feedback	30 V	260 mA	8-SOIC	1300 V/µs	Surface Mount	3 mV	4.8 mA	10 V	1.5 µA	100 MHz	3.9 mm	0.154 in

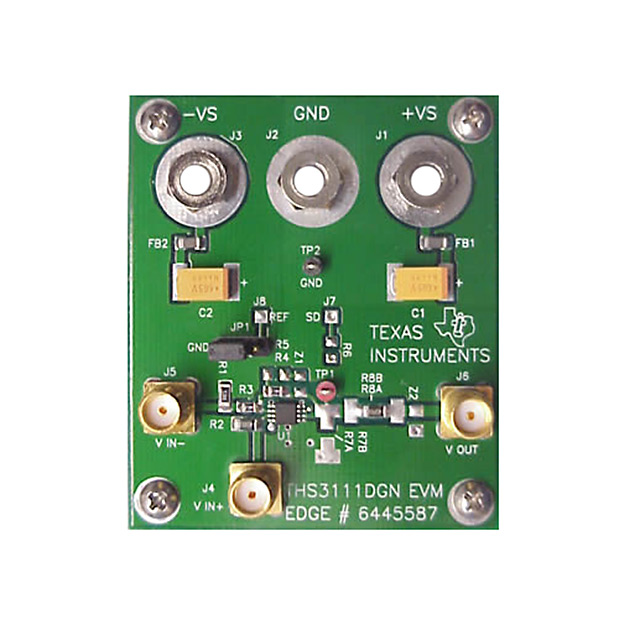

Texas Instruments THS3111EVM						Current Feedback		260 mA		1300 V/µs						100 MHz			1 - Single	-5 V 10 V	15 V 30 V	Single-Ended	Fully Populated	THS3111	4.8 mA	Board(s)
Texas Instruments THS3111ID	85 °C	-40 °C	8-SOIC		1	Current Feedback	30 V	260 mA	8-SOIC	1300 V/µs	Surface Mount	3 mV	4.8 mA	10 V	1.5 µA	100 MHz	3.9 mm	0.154 in
