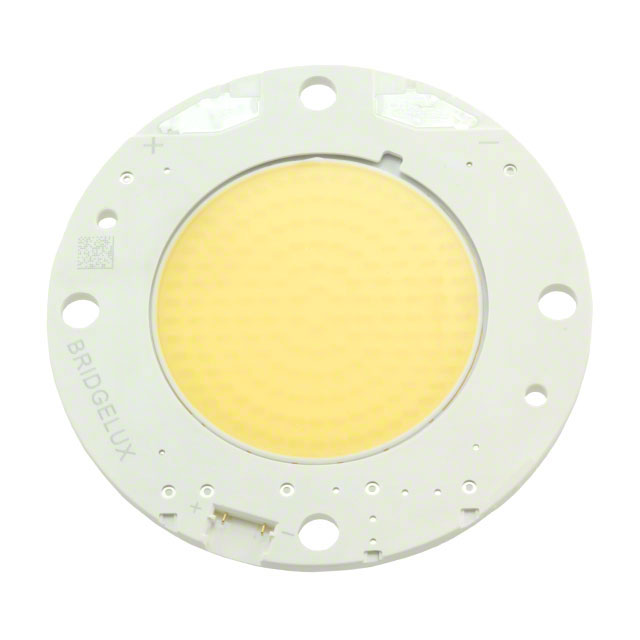

BXRC-56 Series

Manufacturer: BRIDGELUX

Catalog

LED COB VERO SE 29 WHT RND 5600K

Part	Size / Dimension [diameter]	Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Current - Test	Color	Height [z]	Temperature - Test	CCT (K)	CCT (K)	Current - Max [Max]	CRI (Color Rendering Index)	Configuration	Viewing Angle	Light Emitting Surface (LES) [diameter]	Lens Type	Lumens/Watt @ Current - Test	Features
BRIDGELUX BXRC-56H10K0-D-74-SE	49.2 mm	Chip On Board (COB)	37.6 V	10423 lm	2.1 A	Cool White	3.6 mm	25 °C	4-Step MacAdam Ellipse	5600 K	4.2 A	97	Round	120 °	29.2 mm	Flat	122 lm/W
BRIDGELUX BXRC-56H4000-D-74	36.2 mm	Chip On Board (COB)	28.1 V 28.3 V	3508 lm 3613 lm	1.05 A	Cool White	1.9 mm	85 °C	4-Step MacAdam Ellipse	5600 K	2.1 A	97	Round	120 °	18.4 mm	Flat	118 lm/W 122 lm/W
BRIDGELUX BXRC-56G10K0-D-74-SE	49.2 mm	Chip On Board (COB)	37.6 V	12002 lm	2.1 A	Cool White	3.6 mm	25 °C	4-Step MacAdam Ellipse	5600 K	4.2 A	90	Round	120 °	29.2 mm	Flat	152 lm/W
BRIDGELUX BXRC-56G10K0-D-74	49.2 mm	Chip On Board (COB)	37.6 V	12037 lm	2.1 A	Cool White	1.9 mm	25 °C	4-Step MacAdam Ellipse	5600 K	4.2 A	90	Round	120 °	29.2 mm	Flat	152 lm/W
BRIDGELUX BXRC-56G4001-C-74	36.2 mm	Chip On Board (COB)	34.3 V	5405 lm	1.17 A	Cool White	1.9 mm	25 °C	4-Step MacAdam Ellipse	5600 K	2.34 A	90	Round	120 °	18.4 mm	Flat	135 lm/W	With Connector
BRIDGELUX BXRC-56G10K1-D-74-SE	49.2 mm	Chip On Board (COB)	37.6 V	12002 lm	2.1 A	Cool White	3.6 mm	25 °C	4-Step MacAdam Ellipse	5600 K	4.2 A	90	Round	120 °	29.2 mm	Flat	152 lm/W
BRIDGELUX BXRC-56G4001-D-74-SE	36.2 mm	Chip On Board (COB)				Cool White	3.6 mm	85 °C	4-Step MacAdam Ellipse	5600 K	2.1 A	90	Round	120 °	18.4 mm	Flat
BRIDGELUX BXRC-56G4001-D-74	36.2 mm	Chip On Board (COB)	28.1 V	4042 lm	1.05 A	Cool White	1.9 mm	25 °C	4-Step MacAdam Ellipse	5600 K	2.1 A	90	Round	120 °	18.4 mm	Flat	137 lm/W	With Connector
BRIDGELUX BXRC-56G10K1-B-74-SE	49.2 mm	Chip On Board (COB)	52 V	14227 lm	1.8 A	Cool White	3.6 mm	25 °C	4-Step MacAdam Ellipse	5600 K	3.6 A	90	Round	120 °	29.2 mm	Flat	152 lm/W
BRIDGELUX BXRC-56G10K1-C-74-SE	49.2 mm	Chip On Board (COB)	69.4 V	18038 lm	1.71 A	Cool White	3.6 mm	25 °C	4-Step MacAdam Ellipse	5600 K	3.42 A	90	Round	120 °	29.2 mm	Flat	152 lm/W
