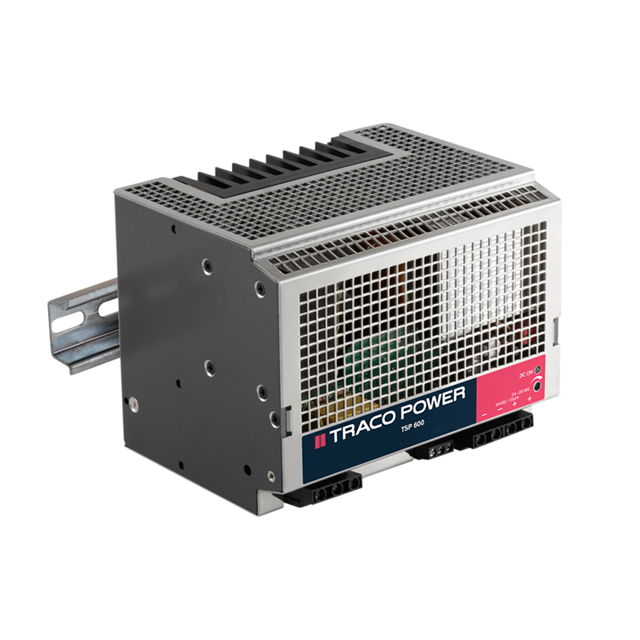

TSP 600 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC DIN RAIL SUPPLY 48V 600W
| Part | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Input Type | Applications | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Features | Current - Output (Max) [Max] | Number of Outputs | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 87 % | 70 °C | -25 °C | 48 V | AC | Hazardous Locations Industrial ITE (Commercial) | CB CE cURus SIQ | 4.92 in | 125 mm | 4.92 in | 125 mm | 6.5 in | 165.1 mm | Adjustable Output IP20 Remote On/Off Universal Input | 12.5 A | 1 | 85 VAC 187 VAC | 132 VAC 264 VAC | 600 W |
 Traco Power | 87 % | 70 °C | -25 °C | 24 V | AC | Hazardous Locations Industrial ITE (Commercial) | CB CE cURus SIQ | 4.92 in | 125 mm | 4.92 in | 125 mm | 6.5 in | 165.1 mm | Adjustable Output IP20 Remote On/Off Universal Input | 25 A | 1 | 85 VAC 187 VAC | 132 VAC 264 VAC | 600 W |
Traco Power | 87 % | 70 °C | -25 °C | 24 V | AC | Industrial ITE (Commercial) | CB CE cURus SIQ | 4.92 in | 125 mm | 4.92 in | 125 mm | 6.5 in | 165.1 mm | Adjustable Output IP20 Remote On/Off Universal Input | 25 A | 1 | 85 VAC 187 VAC | 132 VAC 264 VAC | 600 W |
