DF3-7 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER SMD 7POS 2MM
| Part | Contact Finish - Post | Style | Features | Material Flammability Rating | Number of Positions Loaded | Current Rating (Amps) | Number of Rows | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Type | Insulation Color | Number of Positions | Contact Shape | Insulation Height | Insulation Height | Insulation Material | Connector Type | Termination | Mounting Type | Shrouding | Note | Contact Termination | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mated Stacking Heights [Min] [z] | Mated Stacking Heights [Max] [z] | Voltage Rating | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Wire Gauge | Contact Finish | Wire Type | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

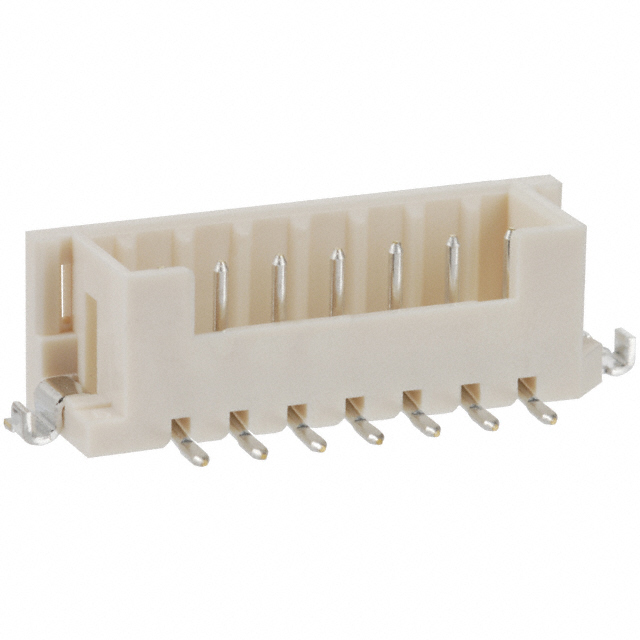

 Hirose Electric Co Ltd | Tin | Board to Board Cable | Board Guide | UL94 V-0 | All | 3 A | 1 | Brass | -55 C | 105 ░C | 0.079 " | 2 mm | Push-Pull | Male Pin | Beige | 7 | Circular | 5.9 mm | 0.232 in | Nylon Polyamide (PA) | Header | Solder | Surface Mount | Shrouded - 4 Wall | |||||||||||||||||||

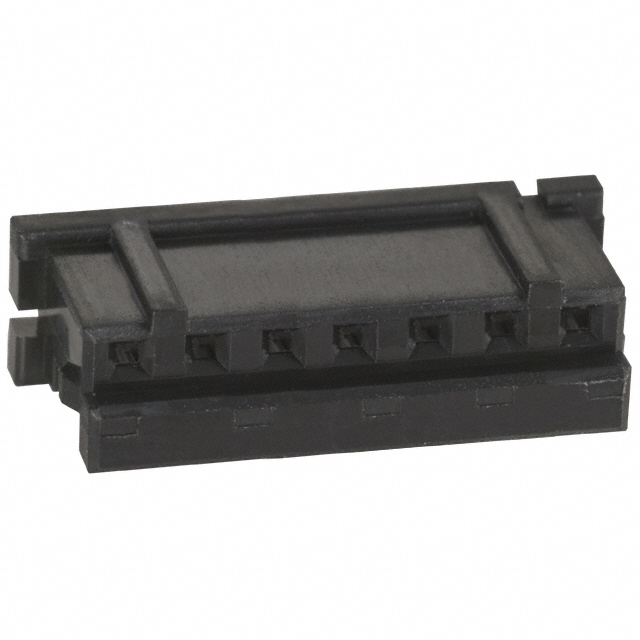

 Hirose Electric Co Ltd | 1 | -55 C | 105 ░C | Female Socket | 7 | Nylon Polyamide (PA) | Receptacle | Free Hanging (In-Line) | Contacts Not Included | Crimp | Black | 0.079 in | 2 mm | ||||||||||||||||||||||||||||||

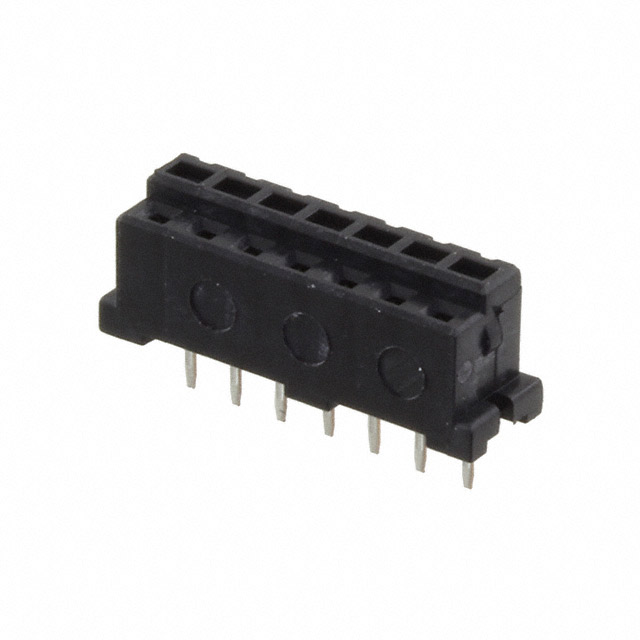

 Hirose Electric Co Ltd | Tin | Board to Board Cable | UL94 V-0 | All | 3 A | 1 | Phosphor Bronze | -30 ░C | 85 °C | 0.079 " | 2 mm | Friction Lock | Female Socket | Black | 7 | Square | 5.9 mm | 0.232 in | Nylon Polyamide (PA) | Receptacle | Solder | Through Hole | 39.4 çin | 1 çm | 8 µin | 0.203 µm | 6.6 mm | 7.5 mm | 30 VAC | Gold | 0.118 in | 3 mm | |||||||||||
 Hirose Electric Co Ltd | Closed End | 1 | Female Socket | 7 | Receptacle | Free Hanging (In-Line) | Black | 0.079 in | 2 mm | 28 AWG | Tin | Discrete | IDC | ||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Closed End | 1 | Female Socket | 7 | Receptacle | Free Hanging (In-Line) | Black | 0.079 in | 2 mm | 26 AWG | Tin | Discrete | IDC | ||||||||||||||||||||||||||||||

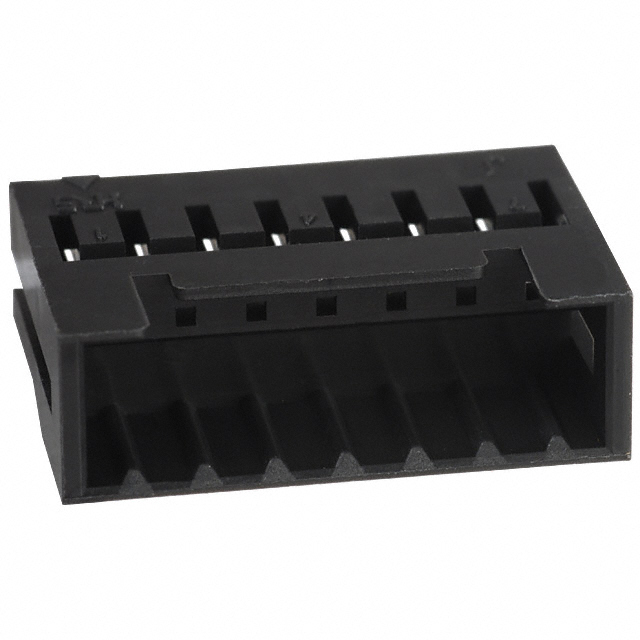

 Hirose Electric Co Ltd | 1 | -55 C | 105 ░C | Male Pin | 7 | Nylon Polyamide (PA) | Plug | Free Hanging (In-Line) | Contacts Not Included | Crimp | Black | 0.079 in | 2 mm | ||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | 1 | Female Socket | 7 | Receptacle | Free Hanging (In-Line) | Contacts Not Included | Crimp | Blue | 0.079 in | 2 mm |
