25-0513 Series
Manufacturer: Aries Electronics
Beta
⌘K

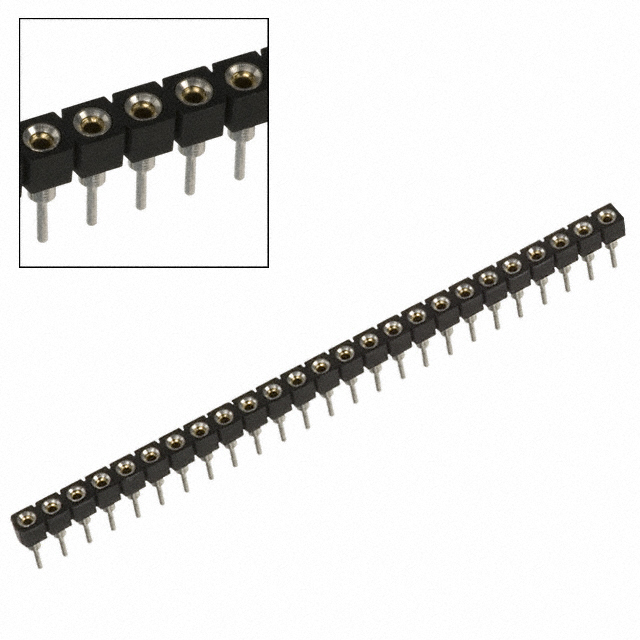

CONN SOCKET SIP 25POS GOLD
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Finish - Post | Pitch - Post | Pitch - Post | Housing Material | Contact Finish - Mating | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material - Mating | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Type | Contact Material - Post [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Tin | 0.1 in | 2.54 mm | Polyamide (PA46) Nylon 4/6 Glass Filled | Gold | Through Hole | 0.1 " | 2.54 mm | Beryllium Copper | 1 | 25 | 25 | 0.25 µm | 10 µin | Solder | 200 µin | 5.08 µm | SIP | Brass |
Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Gold | 0.1 in | 2.54 mm | Polyamide (PA46) Nylon 4/6 Glass Filled | Gold | Through Hole | 0.1 " | 2.54 mm | Beryllium Copper | 1 | 25 | 25 | 0.25 µm | 10 µin | Solder | 10 Áin | 0.25 çm | SIP | Brass |
Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Gold | 0.1 in | 2.54 mm | Polyamide (PA46) Nylon 4/6 Glass Filled | Gold | Through Hole | 0.1 " | 2.54 mm | Beryllium Copper | 1 | 25 | 25 | 0.25 µm | 10 µin | Solder | 10 Áin | 0.25 çm | SIP | Brass |
 Aries Electronics | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Tin | 0.1 in | 2.54 mm | Polyamide (PA46) Nylon 4/6 Glass Filled | Gold | Through Hole | 0.1 " | 2.54 mm | Beryllium Copper | 1 | 25 | 25 | 0.25 µm | 10 µin | Solder | 200 µin | 5.08 µm | SIP | Brass |
