TSM70 Series

Manufacturer: Taiwan Semiconductor Corporation

Catalog

MOSFET N-CH 700V 8A TO262S

Part	Drain to Source Voltage (Vdss)	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Rds On (Max) @ Id, Vgs	FET Type	Technology	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Mounting Type	Supplier Device Package	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]

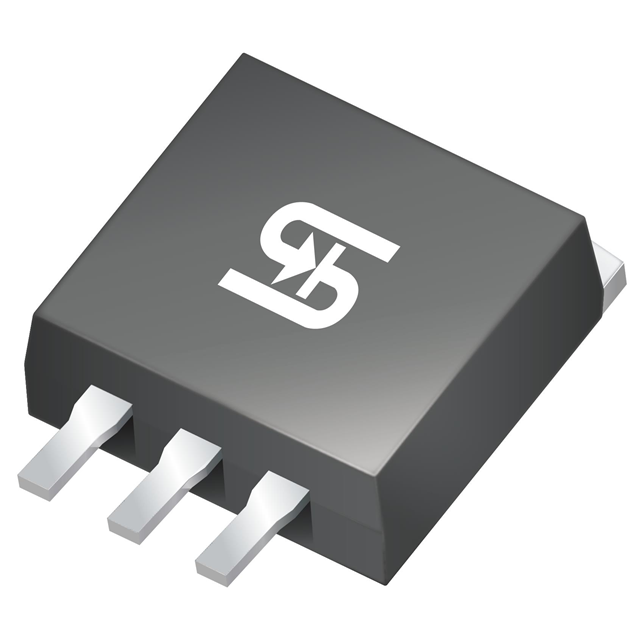

Taiwan Semiconductor Corporation TSM70N600ACL X0G	700 V	30 V	743 pF	8 A	12.6 nC	150 °C	-55 °C	TO-262-3 Short Leads I2PAK	600 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Through Hole	TO-262S (I2PAK)	83 W

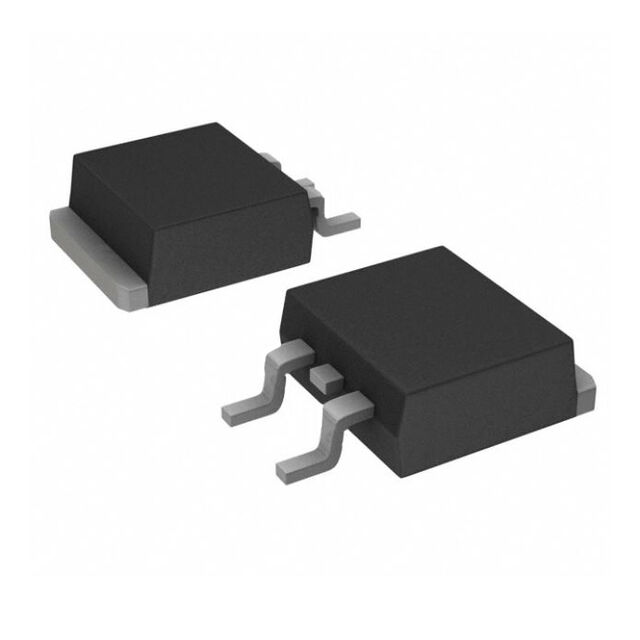

Taiwan Semiconductor Corporation TSM70NB1R4CP	700 V	30 V	317 pF	3 A		150 °C	-55 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	1.4 Ohm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Surface Mount	TO-252 (DPAK)	28 W	7.4 nC

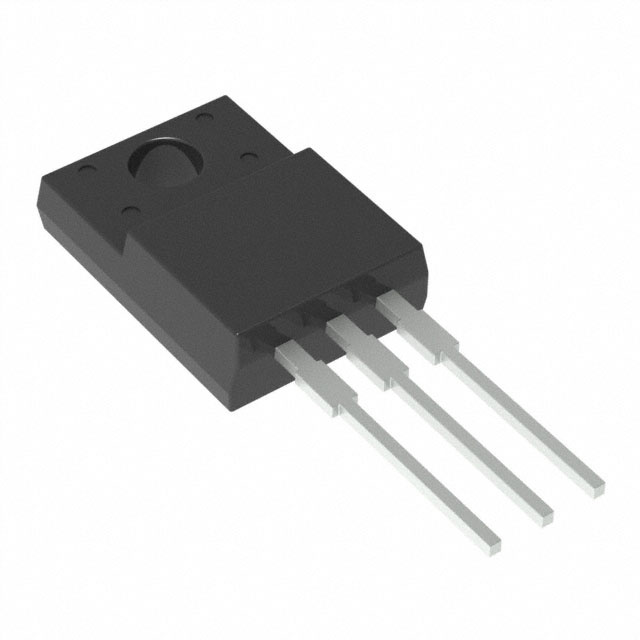

Taiwan Semiconductor Corporation TSM70N600CI C0G	700 V	30 V	743 pF	8 A	12.6 nC	150 °C	-55 °C	TO-220-3 Full Pack Isolated Tab	600 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Through Hole	ITO-220AB	83 W
Taiwan Semiconductor Corporation TSM70N750CP ROG	700 V	30 V		6 A	10.7 nC	150 °C	-55 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	750 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Surface Mount	TO-252 (DPAK)			555 pF	62.5 W
Taiwan Semiconductor Corporation TSM70N900CP ROG	700 V	30 V		4.5 A	9.7 nC	150 °C	-55 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	900 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Surface Mount	TO-252 (DPAK)	50 W		482 pF
Taiwan Semiconductor Corporation TSM70N600CI	700 V	30 V	743 pF	8 A	12.6 nC	150 °C	-55 °C	TO-220-3 Full Pack Isolated Tab	600 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Through Hole	ITO-220	32 W
Taiwan Semiconductor Corporation TSM70N1R4CP ROG	700 V	30 V		3.3 A		150 °C	-55 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	1.4 Ohm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Surface Mount	TO-252 (DPAK)	38 W	7.7 nC	370 pF
Taiwan Semiconductor Corporation TSM70N600ACL	700 V	30 V	743 pF	8 A	12.6 nC	150 °C	-55 °C	TO-262-3 Short Leads I2PAK	600 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Through Hole	TO-262S (I2PAK SL)	83 W
Taiwan Semiconductor Corporation TSM70N600CP ROG	700 V	30 V	743 pF	8 A	12.6 nC	150 °C	-55 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	600 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Surface Mount	TO-252 (DPAK)	83 W
Taiwan Semiconductor Corporation TSM70N380CP ROG	700 V	30 V	981 pF	11 A	18.8 nC	150 °C	-55 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	380 mOhm	N-Channel	MOSFET (Metal Oxide)	10 V	4 V	Surface Mount	TO-252 (DPAK)	125 W
