DSC8101 Series

Catalog

OSCILLATOR MEMS 10MHZ TO 170MHZ ±25PPM (STABILITY) LVCMOS 55% 2.5V/3.3V 6-PIN VDFN SMD TUBE

Part	Function	Package / Case	Programmable Type	Output	Available Frequency Range [Max]	Available Frequency Range [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Base Resonator	Frequency Stability (Total)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Ratings	Frequency Stability	Current - Supply (Disable) (Max) [Max]

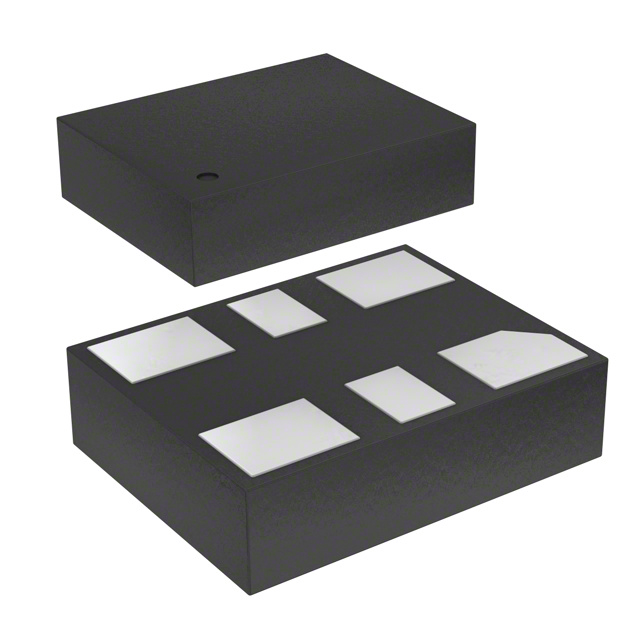

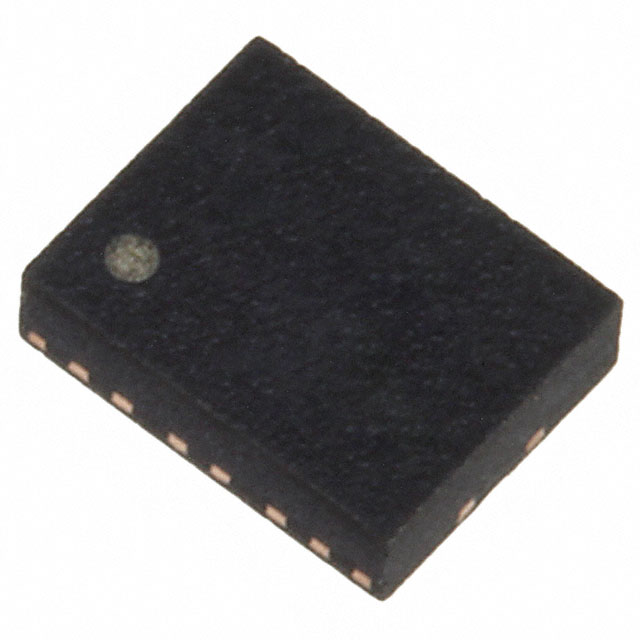

Microchip Technology DSC8101CI2	Standby	6-SMD No Lead	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	25 ppm	0.035 "	0.9 mm	Surface Mount	85 °C	-40 °C	XO (Standard)
Microchip Technology DSC8101CM2	Standby	6-SMD No Lead	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	25 ppm	0.035 "	0.9 mm	Surface Mount	125 °C	-55 °C	XO (Standard)

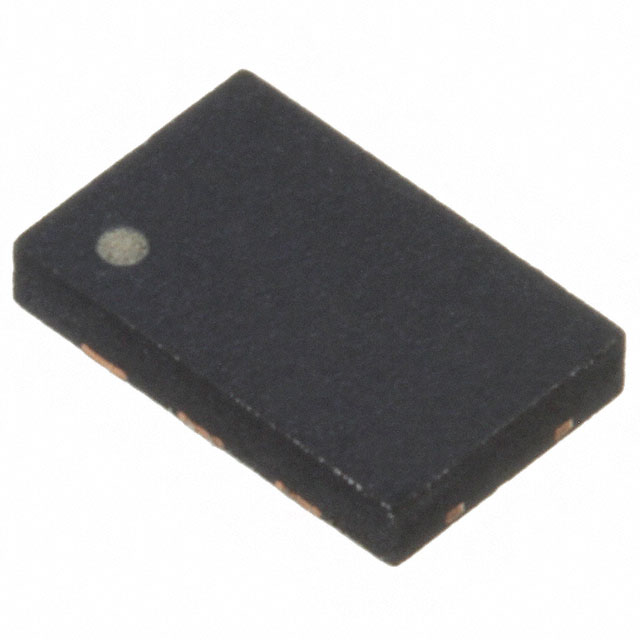

Microchip Technology DSC8101BI5	Standby	6-VDFN	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	5 mm	3.2 mm	0.197 in	0.126 "	MEMS	10 ppm	0.035 "	0.9 mm	Surface Mount	85 °C	-40 °C	XO (Standard)
Microchip Technology DSC8101CL5	Standby	6-SMD No Lead	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	10 ppm	0.035 "	0.9 mm	Surface Mount	105 ░C	-40 °C	XO (Standard)
Microchip Technology DSC8101DI5T	Standby	6-SMD No Lead	Blank (User Must Program)	CMOS	100 MHz	10 MHz	3.6 V	2.25 V	35 mA	2.5 mm	2 mm	0.098 "	0.079 in	MEMS		0.035 "	0.9 mm	Surface Mount	85 °C	-40 °C	XO (Standard)	AEC-Q100	10 ppm	95 µA

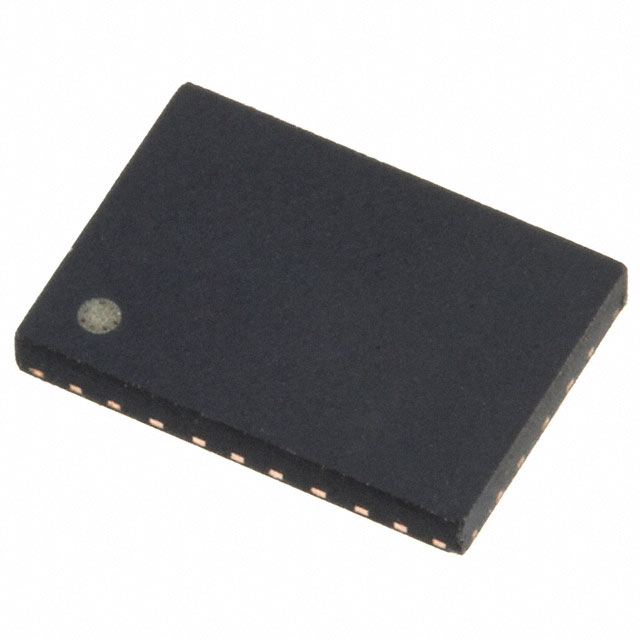

Microchip Technology DSC8101AI2	Standby	6-SMD No Lead	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	7 mm	5 mm	0.276 "	0.197 "	MEMS	25 ppm	0.035 "	0.9 mm	Surface Mount	85 °C	-40 °C	XO (Standard)
Microchip Technology DSC8101DI5	Standby	6-SMD No Lead	Blank (User Must Program)	CMOS	100 MHz	10 MHz	3.6 V	2.25 V	35 mA	2.5 mm	2 mm	0.098 "	0.079 in	MEMS		0.035 "	0.9 mm	Surface Mount	85 °C	-40 °C	XO (Standard)	AEC-Q100	10 ppm	95 µA
Microchip Technology DSC8101BM2	Standby	6-VDFN	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	5 mm	3.2 mm	0.197 in	0.126 "	MEMS	25 ppm	0.035 "	0.9 mm	Surface Mount	125 °C	-55 °C	XO (Standard)
Microchip Technology DSC8101BL2	Standby	4-SMD No Lead	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	5 mm	3.2 mm	0.197 in	0.126 "	MEMS		0.035 "	0.9 mm	Surface Mount	105 ░C	-40 °C	XO (Standard)		25 ppm	95 µA
Microchip Technology DSC8101CI1	Standby	6-SMD No Lead	Blank (User Must Program)	CMOS	170 MHz	10 MHz	3.6 V	2.25 V	35 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	MEMS	50 ppm	0.035 "	0.9 mm	Surface Mount	85 °C	-40 °C	XO (Standard)
