BK13C06 Series

Catalog

FFC & FPC CONNECTORS LOW-PROFILE HYBRID FPC-TO-BOARD CONN

Part	Pitch	Pitch	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Contact Finish	Number of Positions	Mounting Type	Number of Rows [custom]

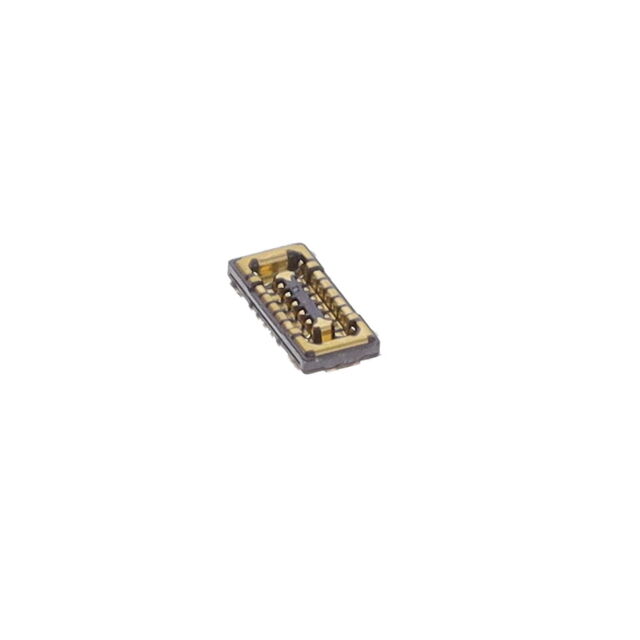

Hirose Electric Co Ltd BK13C06-10DS/2-0.35V(800)	0.014 in	0.35 mm	Solder Retention	0.57 mm	0.022 in	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm	Gold	10	Surface Mount	2
Hirose Electric Co Ltd BK13C06-60DP/2-0.35V(800)	0.014 in	0.35 mm	Solder Retention	0.48 mm	0.019 "	1.97 Áin	0.05 Ám	Plug Outer Shroud Contacts	0.6 mm	Gold	60	Surface Mount	2
Hirose Electric Co Ltd BK13C06-50DS/2-0.35V(800)	0.014 in	0.35 mm	Solder Retention	0.57 mm	0.022 in	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm	Gold	50	Surface Mount	2

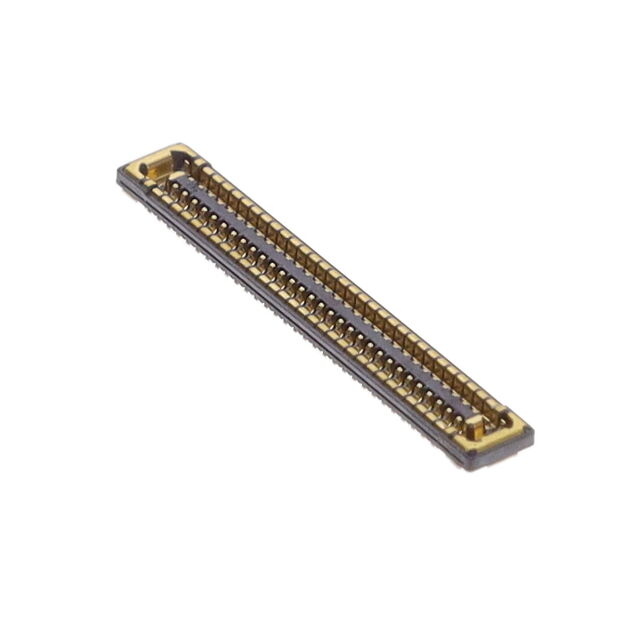

Hirose Electric Co Ltd BK13C06-60DS/2-0.35V(800)	0.014 in	0.35 mm	Solder Retention	0.57 mm	0.022 in	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm	Gold	60	Surface Mount	2

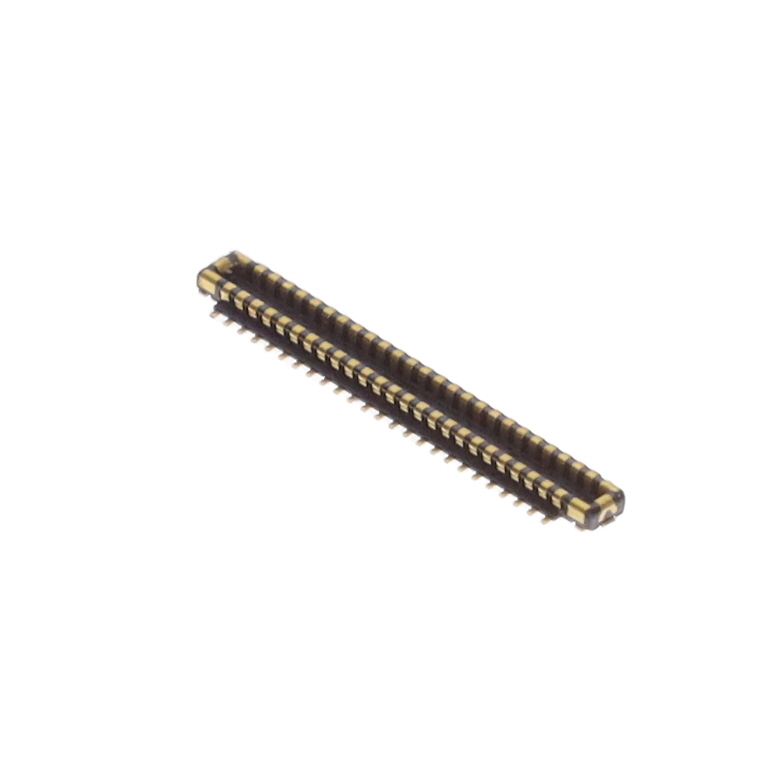

Hirose Electric Co Ltd BK13C06-50DP/2-0.35V(895)	0.014 in	0.35 mm	Solder Retention	0.48 mm	0.019 "	1.97 Áin	0.05 Ám	Plug Outer Shroud Contacts	0.6 mm	Gold	50	Surface Mount	2
Hirose Electric Co Ltd BK13C06-40DP/2-0.35V(895)	0.014 in	0.35 mm	Solder Retention	0.48 mm	0.019 "	1.97 Áin	0.05 Ám	Plug Outer Shroud Contacts	0.6 mm	Gold	40	Surface Mount	2

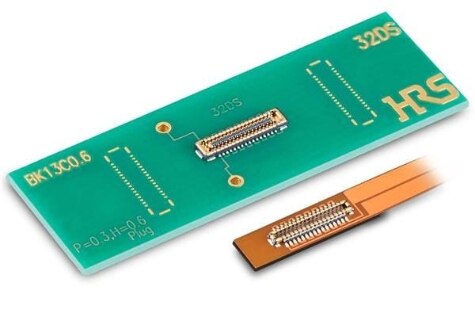

Hirose Electric Co Ltd BK13C06-32DP/2-0.35V(800)	0.014 in	0.35 mm	Solder Retention	0.48 mm	0.019 "	1.97 Áin	0.05 Ám	Plug Outer Shroud Contacts	0.6 mm	Gold		Surface Mount	2

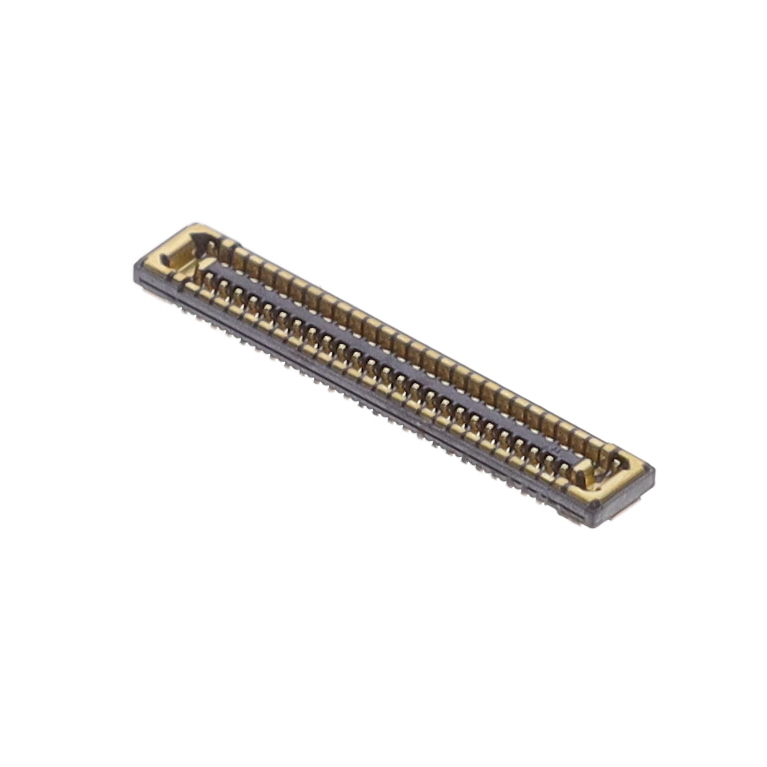

Hirose Electric Co Ltd BK13C06-50DS/2-0.35V(895)	0.014 in	0.35 mm	Solder Retention	0.57 mm	0.022 in	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm	Gold	50	Surface Mount	2

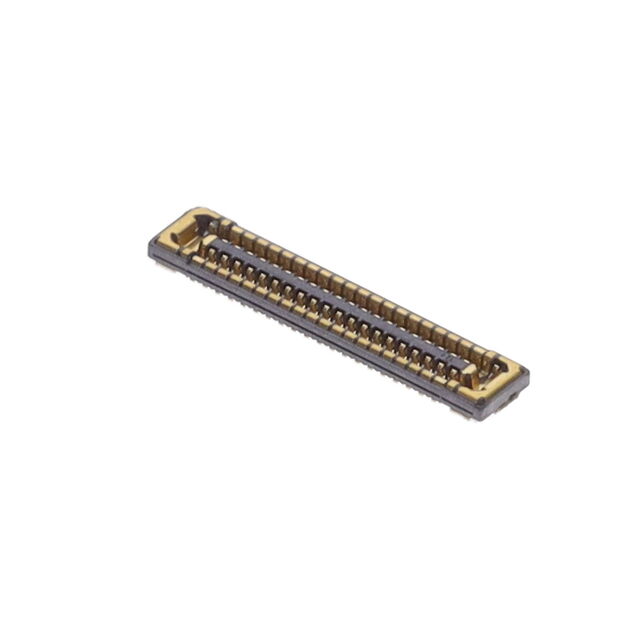

Hirose Electric Co Ltd BK13C06-40DS/2-0.35V(895)	0.014 in	0.35 mm	Solder Retention	0.57 mm	0.022 in	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm	Gold	40	Surface Mount	2
Hirose Electric Co Ltd BK13C06-60DS/2-0.35V(895)	0.014 in	0.35 mm	Solder Retention	0.57 mm	0.022 in	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm	Gold	60	Surface Mount	2
