High Performance General Purpose Blackfin Processor
Key Features
• Application-tuned peripherals provide glueless connectivity to general-purpose converters in data acquisition applications
• Large on-chip SRAM for maximum system performance
• High performance 16-bit/32-bit embedded processor core
• 10-stage RISC MCU/DSP pipeline with mixed 16-bit/32-bit ISA for optimal code density
• Full SIMD architecture, including instructions for accelerated video and image processing
• Memory management unit (MMU) supporting full memory protection for an isolated and secure environment
• Up to 148 kB of on-chip SRAM
• Glueless video capture and display port
• Two dual-channel, full-duplex, synchronous serial ports supporting eight stereo I2S channels
• 12 DMA channels supporting one- and two-dimensional data transfers
• Memory controller providing glueless connection to multiple banks of external SDRAM, SRAM, Flash, or ROM

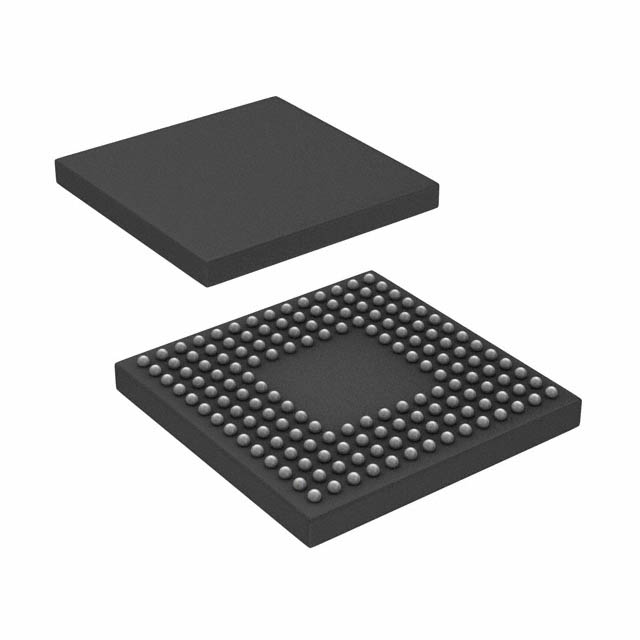

• 160-ball mini-BGA, 169-ball PBGA packages
• Industrial temperature ranges (40°C to 85°C) and commercial temperature ranges (0°C to 70°C) available
Description
AI
The ADSP-BF533 provides a high performance, power-efficient processor choice for today's most demanding convergent signal processing applications. The high performance 16-bit/32-bit Blackfin®embedded processor core, the flexible cache architecture, the enhanced DMA subsystem, and the dynamic power management (DPM) functionality allow system designers a flexible platform to address a wide range of applications including consumer, communications, automotive, and industrial/instrumentation.Architectural FeaturesHigh performance 16-bit/32-bit embedded processor core10-stage RISC MCU/DSP pipeline with mixed 16-bit/32-bit ISA for optimal code densityFull SIMD architecture, including instructions for accelerated video and image processingMemory management unit (MMU) supporting full memory protection for an isolated and secure environmentHigh Level of IntegrationUp to 148 kB of on-chip SRAMGlueless video capture and display portTwo dual-channel, full-duplex, synchronous serial ports supporting eight stereo I2S channels12 DMA channels supporting one- and two-dimensional data transfersMemory controller providing glueless connection to multiple banks of external SDRAM, SRAM, Flash, or ROM160-ball mini-BGA, 169-ball PBGA packagesIndustrial temperature ranges (40°C to 85°C) and commercial temperature ranges (0°C to 70°C) available
