BTA12 Series

12A standard and Snubberless™ Triacs

Manufacturer: STMicroelectronics

Catalog

12A standard and Snubberless™ Triacs

PartCurrent - Gate Trigger (Igt) (Max) [Max]Current - On State (It (RMS)) (Max)Triac TypeMounting TypeSupplier Device PackageOperating Temperature [Min]Operating Temperature [Max]Voltage - Off StateCurrent - Hold (Ih) (Max) [Max]ConfigurationCurrent - Non Rep. Surge 50, 60Hz (Itsm) [Max]Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]Voltage - Gate Trigger (Vgt) (Max) [Max]Package / Case

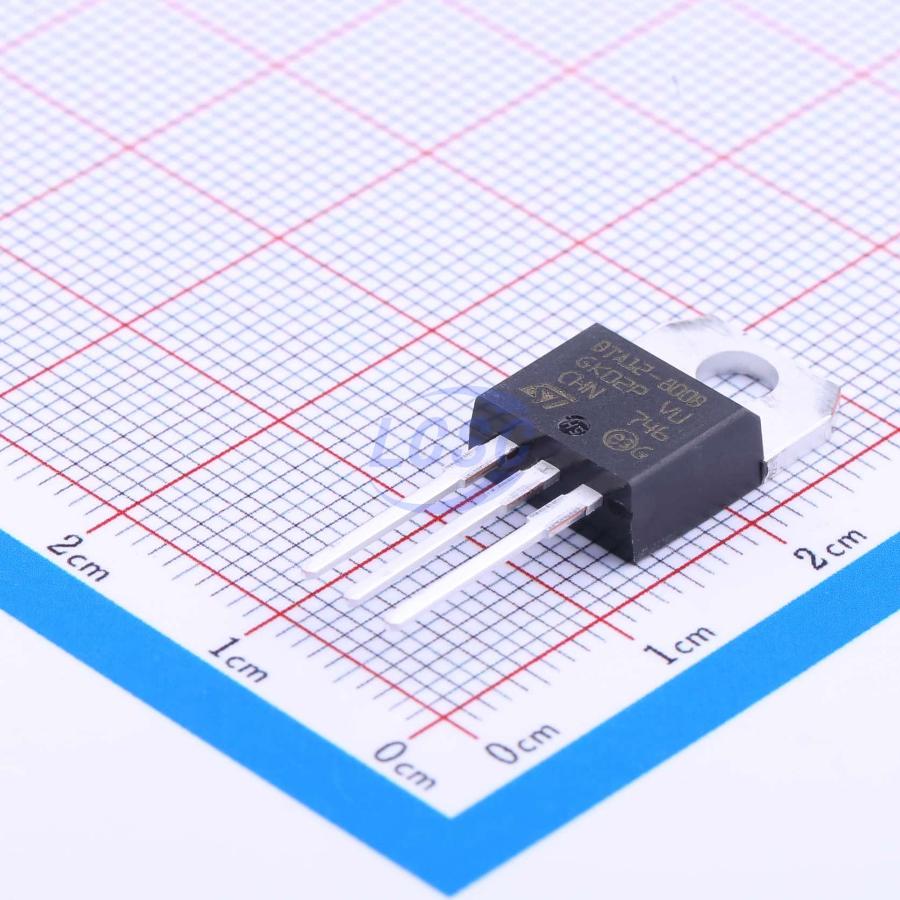

Product Image
STMicroelectronics
BTA12-800BRG
50 mA
12 A
Standard
Through Hole
TO-220AB Insulated
-40 °C
125 ¯C
800 V
50 mA
Single
126 A
120 A
1.3 V
TO-220-3
TO-220AB
STMicroelectronics
BTA12-800BWRG
50 mA
12 A
Alternistor - Snubberless
Through Hole
TO-220AB Insulated
-40 °C
125 ¯C
800 V
50 mA
Single
126 A
120 A
1.3 V
TO-220-3
ONSEMI ISL9V3040P3
STMicroelectronics
BTA12-600BRG
50 mA
12 A
Standard
Through Hole
TO-220
-40 °C
125 ¯C
600 V
50 mA
Single
126 A
120 A
1.3 V
TO-220-3
TO-220-3
STMicroelectronics
BTA12-600CWRG
35 mA
12 A
Alternistor - Snubberless
Through Hole
TO-220
-40 °C
125 ¯C
600 V
35 mA
Single
126 A
120 A
1.3 V
TO-220-3
TO-220-3
STMicroelectronics
BTA12-700CRG
25 mA
12 A
Standard
Through Hole
TO-220
-40 °C
125 ¯C
700 V
25 mA
Single
126 A
120 A
1.3 V
TO-220-3
TO-220-3
STMicroelectronics
BTA12-600CW
35 mA
12 A
Alternistor - Snubberless
Through Hole
TO-220
-40 °C
125 ¯C
600 V
35 mA
Single
126 A
120 A
1.3 V
TO-220-3

Description

AI
Available either in through-hole or surface mount packages, the BTA12, BTB12 and T12xx Triac series are suitable for general purpose mains power AC switching. They can be used as ON/OFF function in applications such as static relays, heating regulation or induction motor starting circuit. They are also recommended for phase control operations in light dimmers and appliance motors speed controllers. The Snubberless™ versions (W suffix and T12xx) are especially recommended for use on inductive loads, because of their high commutation performance. By using an internal ceramic pad, the Snubberless™ series provide an insulated tab (rated at 2500 VRMS) complying with UL standards (file reference: E81734). Logic Level BTA12-600TW and BTA12-600SW offer low holding current, ideal to design light dimmers for LED lamps.
