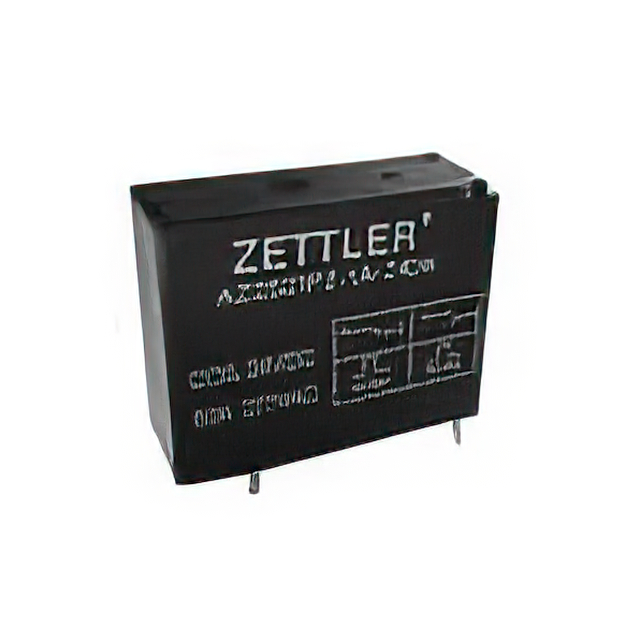

AZ2501P1 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPDT 50A 6V
| Part | Coil Resistance | Coil Type | Relay Type | Switching Voltage [Max] | Termination Style | Load - Max Switching [Max] | Operate Time | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Form | Mounting Type | Approval Agency | Contact Rating (Current) | Must Operate Voltage | Release Time | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 24 Ohms | Latching Single Coil | General Purpose | 440 VAC | PC Pin | 13850 VA | 15 ms | 250 mA | 70 °C | -40 C | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | Through Hole | cUR UL | 50 A | 4.8 VDC | 15 ms | |
 American Zettler | 384 Ohms | Latching Single Coil | General Purpose | 440 VAC | PC Pin | 13850 VA | 15 ms | 62.5 mA | 70 °C | -40 C | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | Through Hole | cUR UL | 50 A | 19.2 VDC | 15 ms | 24 VDC |
