1N3047 Series

Catalog

VOLTAGE REGULATOR DO-41 ROHS COMPLIANT: YES

Part	Package Name	Power - Max	Mounting Type	Current - Reverse Leakage	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt)	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Forward (Vf) (Max)	Package / Case	Supplier Device Package
Microchip Technology 1N3047B-1	DO-204AL (DO-41) DO-41	1 VA	Through Hole	2 µA	130 V	700 Ohms	5 %	175 °C	-55 °C	1.2 V	Axial DO-204AL DO-41

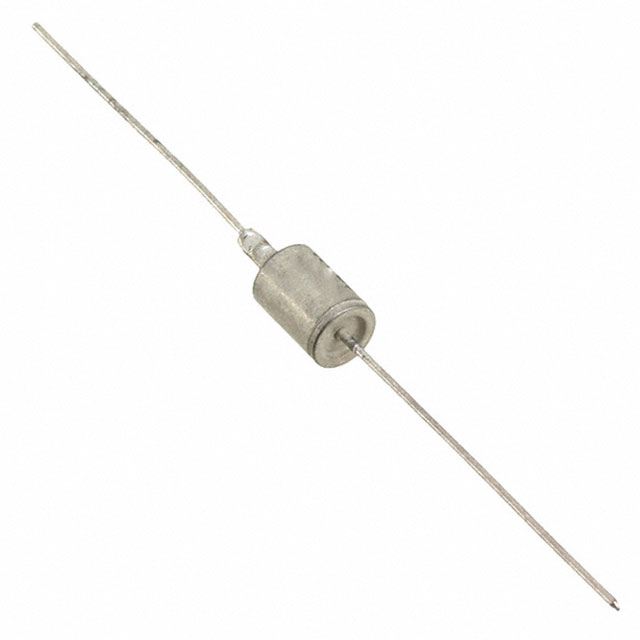

Microchip Technology 1N3047B-1/TR	DO-13 (DO-202AA)	1 VA	Through Hole	10 µA	130 V	700 Ohms	5 %	175 °C	-65 °C	1.5 V	Axial DO-13 DO-202AA	DO-13 DO-202AA

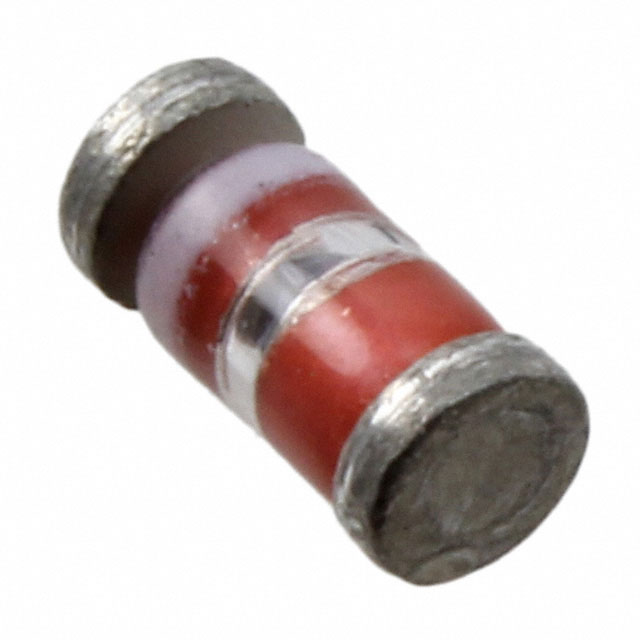

Microchip Technology 1N3047BUR-1	DO-213AB (MELF LL41)	1.5 W	Surface Mount	500 nA	130 V	700 Ohms	5 %	175 °C	-65 °C	1.2 V	DO-213AB MELF (Glass)
