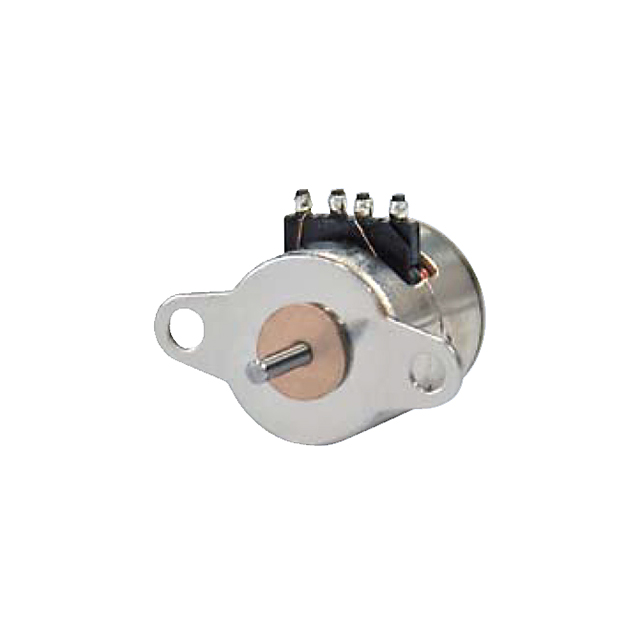

SM8-F20 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STEPPER MOTOR PM BIPOLAR 5V
| Part | Voltage - Rated | Step Angle | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Type | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Features | Termination Style | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 5 V | 18 ° | 0.315 in | Round | 8 mm | 50 °C | -10 °C | Bipolar | Permanent Magnet | 0.433 in | 11 mm | 0.039 in | 1 mm | Round Shaft | PC Pin | 21 Ohms |
