STL7LN65 Series
Manufacturer: STMicroelectronics
Beta
⌘K

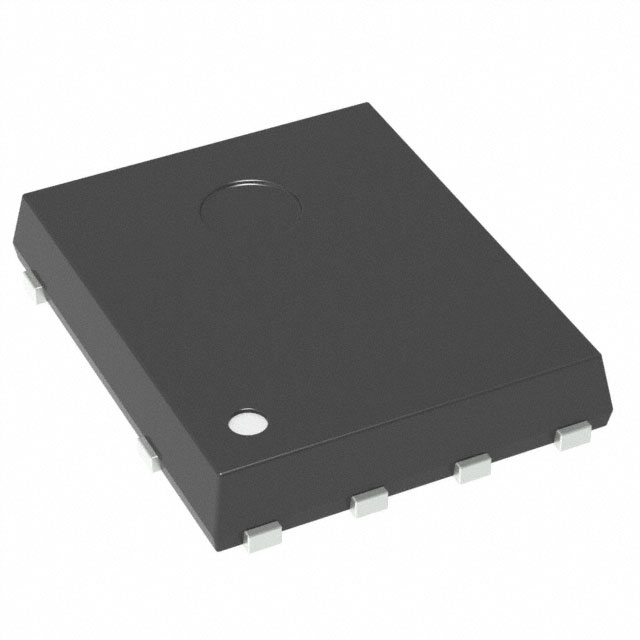

AUTOMOTIVE-GRADE N-CHANNEL 650 V, 0.95 OHM TYP., 5 A, MDMESH K5 POWER MOSFET IN A POWERFLAT 5X6 VHV PACKAGE
| Part | Vgs(th) (Max) @ Id | Grade | Operating Temperature [Max] | Operating Temperature [Min] | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C | FET Type | Package / Case | Vgs (Max) | Supplier Device Package | Input Capacitance (Ciss) (Max) @ Vds [Max] | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Mounting Type | Rds On (Max) @ Id, Vgs | Technology | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 5 V | Automotive | 150 °C | -55 °C | 10 V | 5 A | N-Channel | 8-PowerVDFN | 30 V | PowerFlat™ (5x6) VHV | 270 pF | 79 W | 11.7 nC | 650 V | Surface Mount | 1.5 Ohm | MOSFET (Metal Oxide) | AEC-Q101 |
