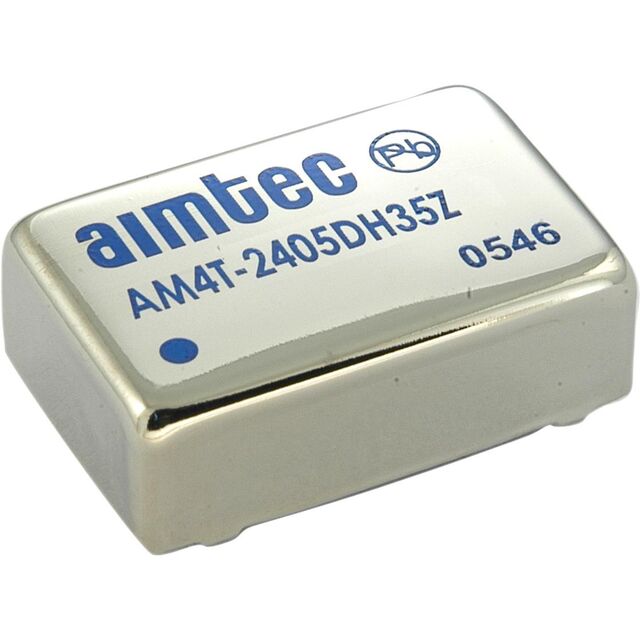

AM4T Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 24V 4W
| Part | Approval Agency | Voltage - Input (Min) [Min] | Voltage - Output 1 | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Outputs | Efficiency | Voltage - Isolation | Standard Number | Type | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Applications | Current - Output (Max) [Max] | Power (Watts) | Current - Output (Max) | Voltage - Output 2 | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | CE IEC UL | 9 V | 24 V | 24-DIP Module | 85 °C | -40 C | Through Hole | 1 | 80 % | 3.5 kV | 62368-1 | Isolated Module | 18 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | ITE (Commercial) | 166 mA | 4 W | ||||
aimtec | CE IEC UL | 18 V | 24-DIP Module 8 Leads | 85 °C | -40 C | Through Hole | 2 | 80 % | 3.5 kV | 62368-1 | Isolated Module | 36 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | ITE (Commercial) | 4 W | 133 mA | -15 V | 15 V | -15 V |
