TN2010 Series

Catalog

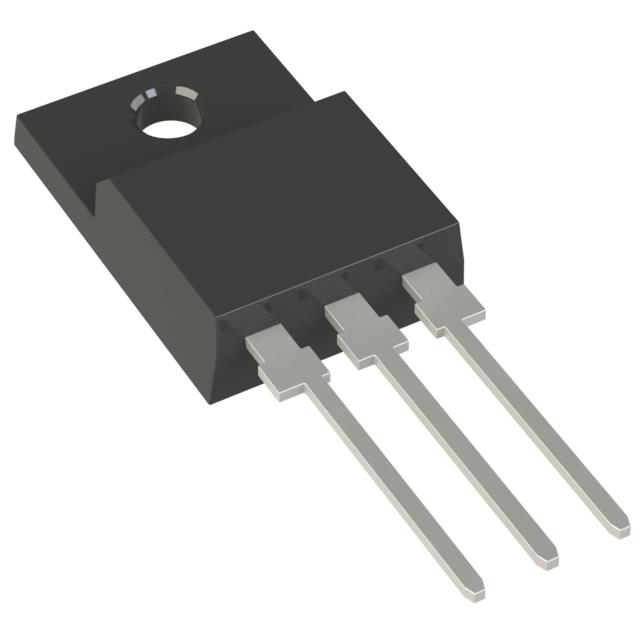

THYRISTOR, 600V, 20A, TO-220AB ROHS COMPLIANT: YES

Part	Voltage - On State (Vtm) (Max)	Current - On State (It (RMS)) (Max) [Max]	Current - On State (It (AV)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Current - Off State (Max) [Max] [custom]	Supplier Device Package	SCR Type	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - Hold (Ih) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Package / Case	Current - On State (It (AV)) (Max) [Max]
STMicroelectronics TN2010H-6I	1.6 V	20 A	13 A	180 A 197 A	1.3 V	5 µA	TO-220AB Insulated	Standard Recovery	10 mA	Through Hole	40 mA	-40 °C	150 °C	600 V	TO-220-3
STMicroelectronics TN2010H-6FP	1.6 V	20 A		180 A 197 A	1.3 V	5 µA	TO-220FPAB	Sensitive Gate	10 mA	Through Hole	40 mA	-40 °C	150 °C	600 V	TO-220-3 Full Pack	12.7 A
STMicroelectronics TN2010H-6T	1.6 V	20 A		180 A 197 A	1.3 V	5 µA	TO-220	Sensitive Gate	10 mA	Through Hole	40 mA	-40 °C	150 °C	600 V	TO-220-3	12.7 A
