ADGS5414 Series

SPI Interface, Octal SPST Switches, 13.5 Ω RON, ±20 V/+36 V, Mux

Catalog

SPI Interface, Octal SPST Switches, 13.5 Ω RON, ±20 V/+36 V, Mux

Part	Type	Function	Primary Attributes	Supplied Contents	Utilized IC / Part	Contents	Multiplexer/Demultiplexer Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Package / Case	Switch Circuit	Number of Circuits [custom]	Mounting Type	Supplier Device Package	Voltage - Supply, Dual (V±)	Voltage - Supply, Dual (V±) [Max]

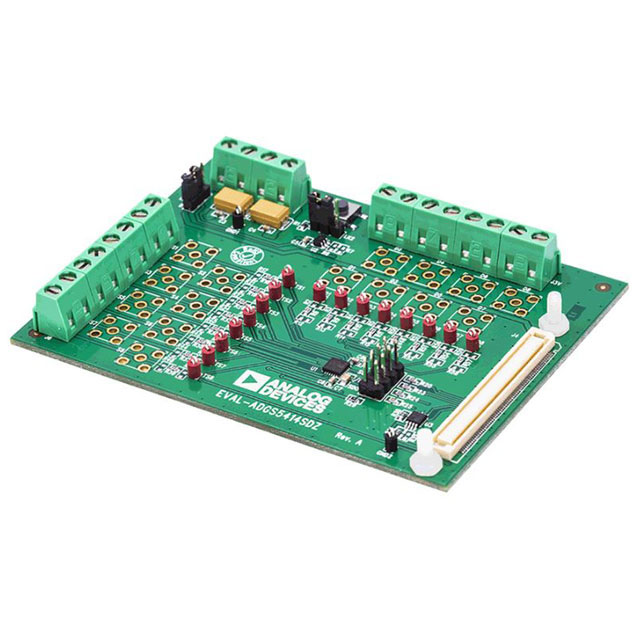

Analog Devices EVAL-ADGS5414SDZ	Interface	Analog Switch	SPST	Board(s)	ADGS5414	Board(s)
Analog Devices ADGS5414BCPZ							1:1	-40 °C	125 °C	9 V	40 V	24-VFQFN Exposed Pad CSP	SPST - NO	8	Surface Mount	24-LFCSP (4x4)	9 V	22 V
Analog Devices ADGS5414BCPZ-RL7							1:1	-40 °C	125 °C	9 V	40 V	24-VFQFN Exposed Pad CSP	SPST - NO	8	Surface Mount	24-LFCSP (4x4)	9 V	22 V

Catalog

SPI Interface, Octal SPST Switches, 13.5 Ω RON, ±20 V/+36 V, Mux

Key Features

• SPI interface with error detectionIncludes CRC, invalid read/write address, and SCLK count error detectionSupports burst and daisy-chain modeIndustry-standard SPI Mode 0 and Mode 3 interface-compatible

• Includes CRC, invalid read/write address, and SCLK count error detection

• Supports burst and daisy-chain mode

• Industry-standard SPI Mode 0 and Mode 3 interface-compatible

• Guaranteed break-before-make switching, allowing external wiring of switches to deliver multiplexer configurations

• VSSto VDDanalog signal rangeFully specified at ±15 V, ±20 V, +12 V, and +36 V9 V to 40 V single-supply operation (VDD)±9 V to ±22 V dual-supply operation (VDD/VSS)

• Fully specified at ±15 V, ±20 V, +12 V, and +36 V

• 9 V to 40 V single-supply operation (VDD)

• ±9 V to ±22 V dual-supply operation (VDD/VSS)

• 8 kV HBM ESD rating

• Low on resistance

• 1.8 V logic compatibility with 2.7 V ≤ VL≤ 3.3 V

Description

The ADGS5414 contains eight independent single-pole/single-throw (SPST) switches. An SPI interface controls the switches and has robust error detection features, including cyclic redundancy check (CRC) error detection, invalid read/write address error detection, and SCLK count error detection.It is possible to daisy-chain multiple ADGS5414 devices together. This enables the configuration of multiple devices with a minimal amount of digital lines. The ADGS5414 can also operate in burst mode to decrease the time between SPI commands.Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The on-resistance profile is flat over the full analog input range, ensuring ideal linearity and low distortion when switching audio signals. The ADGS5414 exhibits break-before-make switching action, allowing the use of the device in multiplexer applications with external wiring.Product HighlightsThe SPI interface removes the need for parallel conversion, logic traces, and reduces the general-purpose input/output (GPIO) channel count.Daisy-chain mode removes the need for additional logic traces when using multiple devices.CRC error detection, invalid read/write address error detenction, and SCLK count error detection ensures a robust digital interface.CRC and error detection capabilities allow the use of the ADGS5414 in safety critical systems.Break-before-make switching allows external wiring of the switches to deliver multiplexer configurations.The trench isolation analog switch section guards against latch-up. A dielectric trench separates the positive and negative channel transistors, preventing latch-up even under severe overvoltage conditions.ApplicationsRelay replacementAutomatic test equipmentData acquisitionInstrumentationAvionicsAudio and video switchingCommunication systems
