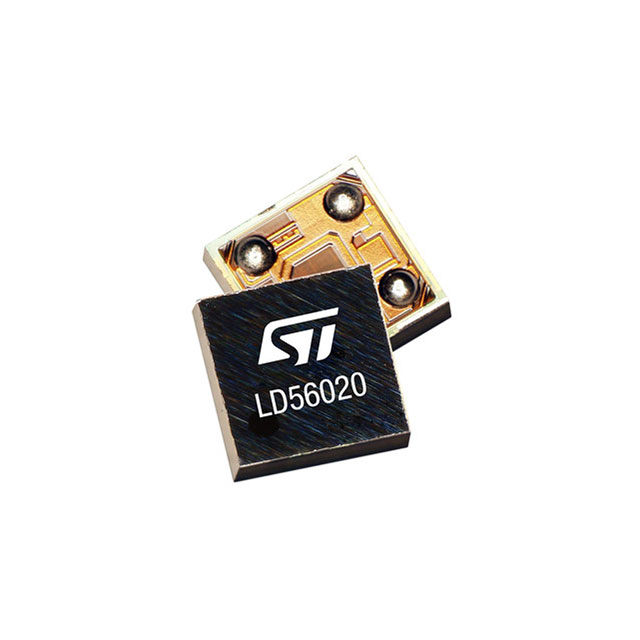

LD56020 Series

Catalog

LDO VOLTAGE REGULATOR, FIXED, 1.1 TO 5.5V IN, 40MV DROP, 1V/0.2A OUT, FLIP-CHIP-4, -40 TO 85 °C

Part	Package / Case	Number of Regulators	Mounting Type	Protection Features	Voltage - Output (Min/Fixed)	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Iq)	PSRR [Min]	PSRR [Max]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Input (Max) [Max]	Output Configuration	Voltage Dropout (Max) [Max]	Current - Output	PSRR	PSRR	PSRR
STMicroelectronics LD56020J100R	4-XFBGA	1	Surface Mount	Over Temperature	1 V	Enable	-40 C	125 °C	25 µA	55 dB	90 dB	4-FlipChip	0.69	0.69	5.5 V	Positive	0.09 V	0.2 A
STMicroelectronics LD56020J110R	4-XFBGA	1	Surface Mount	Over Temperature Short Circuit	1.1 V	Enable	-40 C	125 °C	25 µA	55 dB	90 dB	4-FlipChip	0.69	0.69	5.5 V	Positive		0.2 A
STMicroelectronics LD56020M100R	SC-74A SOT-753	1	Surface Mount	Over Temperature Short Circuit	1 V	Enable	-40 C	125 °C	25 µA			SOT-23-5			5.5 V	Positive	0.2 V	0.2 A	95 dB	55 dB 90 dB	PSRR
STMicroelectronics LD56020M120R	SC-74A SOT-753	1	Surface Mount	Over Temperature Short Circuit	1.2 V	Enable	-40 C	125 °C	25 µA			SOT-23-5			5.5 V	Positive	0.2 V	0.2 A	95 dB	55 dB 90 dB	PSRR
STMicroelectronics LD56020J120R	4-XFBGA	1	Surface Mount	Over Temperature Short Circuit	1.2 V	Enable	-40 C	125 °C	25 µA	55 dB	90 dB	4-FlipChip	0.69	0.69	5.5 V	Positive	0.19 V	0.2 A
STMicroelectronics LD56020M180R	SC-74A SOT-753	1	Surface Mount	Over Temperature Short Circuit	1.8 V	Enable	-40 C	125 °C	25 µA			SOT-23-5			5.5 V	Positive	0.2 V	0.2 A	95 dB	55 dB 90 dB	PSRR
STMicroelectronics LD56020J180R	4-XFBGA	1	Surface Mount	Over Temperature Short Circuit	1.8 V	Enable	-40 C	125 °C	25 µA	55 dB	90 dB	4-FlipChip	0.69	0.69	5.5 V	Positive		0.2 A
STMicroelectronics LD56020M110R	SC-74A SOT-753	1	Surface Mount	Over Temperature Short Circuit	1.1 V	Enable	-40 C	125 °C	25 µA			SOT-23-5			5.5 V	Positive		0.2 A	95 dB	55 dB 90 dB	PSRR
