UG-21D/U Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

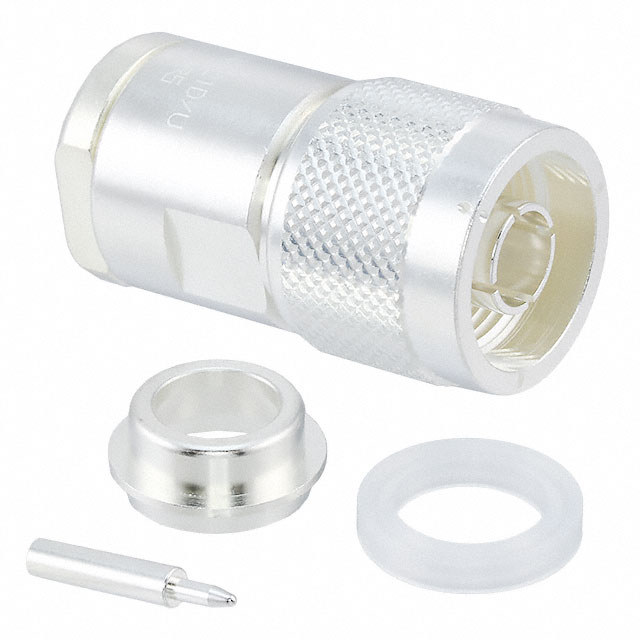

CONN COAX N PLUG STR
| Part | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Mating Cycles | Contact Termination | Fastening Type | Connector Type | Number of Ports | Frequency - Max [Max] | Mounting Type | Housing Color | Shield Termination | Center Contact Material | Cable Group | Cable Group | Impedance | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Brass | Gold | -30 ░C | 60 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | Solder | Threaded | Plug Male Pin | 1 | 10 GHz | Free Hanging (In-Line) | Silver | Clamp | Brass | 9 | RG-8 | 50 Ohms | N Type |
 Hirose Electric Co Ltd | Brass | Silver | -30 ░C | 60 °C | Polytetrafluoroethylene (PTFE) | Silver | 1000 | Solder | Threaded | Plug Male Pin | 1 | 2 GHz | Free Hanging (In-Line) | Silver | Clamp | Brass | 50 Ohms | N Type |
