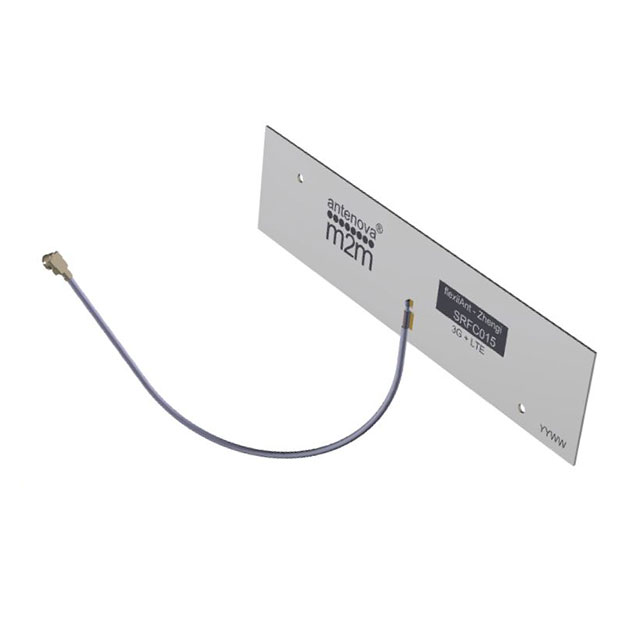

SRFC015 Series

Manufacturer: Antenova

Catalog

RF ANT 892MHZ/1.85GHZ FLAT 150MM

Part	Termination	Termination	VSWR	Gain	Height (Max) [z]	Height (Max) [z]	Mounting Type	RF Family/Standard	Frequency Group	Features	Frequency (Center/Band)	Return Loss	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Features
Antenova SRFC015-150	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2.1	3.5 dBi	0.15 mm	0.006 in	Adhesive	Cellular	Wide Band	Cable - 150mm	1.85 GHz 2.14 GHz 2.35 GHz 2.6 GHz 892 MHz	-8 dB	Flat Patch	1.99 GHz 2.17 GHz 2.4 GHz 2.69 GHz 960 MHz	1.71 GHz 2.11 GHz 2.3 GHz 2.5 GHz 824 MHz	5
Antenova SRFC015-200	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2.1	3.5 dBi	0.15 mm	0.006 in	Adhesive	Cellular	Wide Band	Cable - 200mm	1.85 GHz 2.14 GHz 2.35 GHz 2.6 GHz 892 MHz	-8 dB	Flat Patch	1.99 GHz 2.17 GHz 2.4 GHz 2.69 GHz 960 MHz	1.71 GHz 2.11 GHz 2.3 GHz 2.5 GHz 824 MHz	5
Antenova SRFC015-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2.1	3.5 dBi	0.15 mm	0.006 in	Adhesive	Cellular	Wide Band	Cable	1.85 GHz 2.14 GHz 2.35 GHz 2.6 GHz 892 MHz	-8 dB	Flat Patch	1.99 GHz 2.17 GHz 2.4 GHz 2.69 GHz 960 MHz	1.71 GHz 2.11 GHz 2.3 GHz 2.5 GHz 824 MHz	5	100 mm
