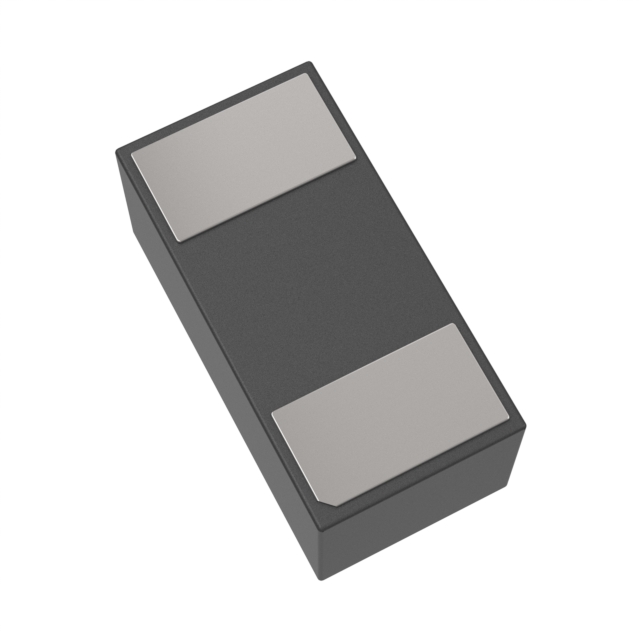

MPP4000-MMSM-SMT-PIN Series

MMSM-Surface-Mount-PIN

Catalog

MMSM-Surface-Mount-PIN

Part	Supplier Device Package	Capacitance @ Vr, F	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Resistance @ If, F	Voltage - Peak Reverse (Max)	Voltage - Peak Reverse (Max) [Max]
Microchip Technology MPP4202-206/TR	0402	0.15 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	2.8 Ohm
Microchip Technology MPP4205A-206/TR	0402	0.15 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	5 Ohm	70 V
Microchip Technology MPP4403-206/TR
Microchip Technology MPP4204-206	0402	0.15 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	2 Ohm		25 V
Microchip Technology MPP4205A-206	0402	0.15 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	5 Ohm	70 V
Microchip Technology MPP4205-206/TR	0402	0.15 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	5 Ohm	70 V
Microchip Technology MPP4202-206	0402	0.15 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	2.8 Ohm
Microchip Technology MPP4206-206/TR	0402	0.15 pF	PIN - Single			0402 (1005 Metric)	2.5 Ohm		200 V

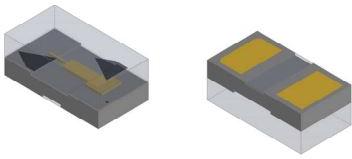

Microchip Technology MPP4201A-206/TR	0402	0.2 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	2.5 Ohm	70 V
Microchip Technology MPP4204-206/TR	0402	0.15 pF	PIN - Single	-55 °C	150 °C	0402 (1005 Metric)	2 Ohm		25 V

Catalog

MMSM-Surface-Mount-PIN

Key Features

• * Up to 10W incident RF power handling

• * Available on Tape & Reel or on Film Frame for pick & place

• * Low Series Inductance (<0.2nH typical)

• * Low Parasitic Capacitance (0.04 pf typical)

• * Broadband Performance through X-Band

• * Meets All Commercial Qualification Requirements

• * Small, SOD 323 Footprint

• * Low thermal resistance

• * RoHS Compliant

Description

The MPP4200 series of PIN diodes can be used in RF circuits as an on/off element, as a switch, or as a current controlled resistor in attenuators extending over the frequency range from UHF through X band. Switch applications include high-speed switches (ECM systems). TR switches channel or antenna selection switches (Telcom and WLAN applications), duplexers (radar) and digital phase shifters (phased arrays). Attenuator type applications include amplitude modulators, AGC attenuators and power. This series of devices meets RoHS requirements.
